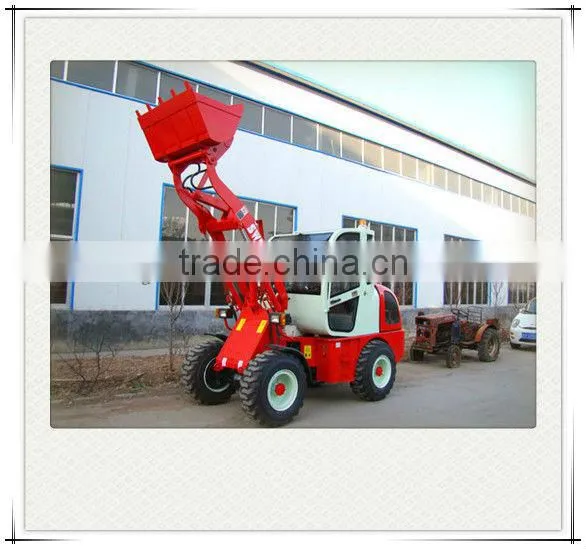

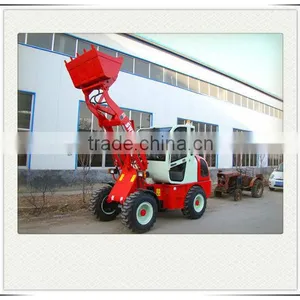

SWM610 Wheel Loader, Mini Wheel Loader With Price

Name: SWM610 Wheel Loader, Mini Wheel Loader With Price
Brand: SWLTD
SKU: 140830912
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

SWLTD

Model Number:

SWM612

Shandong Weili World Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name SWLTD

Model Number SWM612

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 4530*1500*2500

Rated Load 1200kg

Certification CE BV

Warranty 1 year

After-sales Service Provided Overseas service center available

Specifications

wheel loader
CE or EPA
Rated laod:1200kg
Engine model :404D-22
Quick hitch

Features

1. The SWM612 wheel loader uses the Japan Yanma engine that has the advantages of small engine sound, high power, and low oil consumption.

2. Equipped with an electronically controlled traveling and manipulation system, the wheel loader can greatly reduce the labor intensity.

3. The wheel loader is equipped with an advanced hydraulic system.

4. It has the reliable torque converter, gearbox and drive axle.

5. The wheel loader has a highly reliable brake system.

6. Using the hard structural parts and powerful working device, the wheel loader can strengthen the excavating force.

7. The wheel loader features unique machine design, perfect color matching and high-comfort.

Technical Specifications

Main Technical Parameter of SWM612
Item	Parameter
Rated load (kg)	1200
Bucket capacity (m³)	0.6
Wheel tread (mm)	1170
Wheel base (mm)	1790
Min turning radius (mm)	4450
Min ground clearance (mm)	240
Dumping height (mm)	2300
Corresponding dumping reach (mm)	1080
Lifting time (s)	4
Hydraulic cycle time (s)	9
Maximum excavating force (KN)	Bucket24.6 Swiming arm13.45
Drive mode	Four are Drive
Machine weight (kg)	2500
Overall dimensions (mm) (Lengthwidthheight)	453015002500
Engine model	404D-22
Rated power of engine (kw)	35.7
Rated speed of engine (rpm)	2600
