SWM615wheel Loader(with CE,EuroIII Emissions Engine,Air-conditioning, Triple Valve Pilot Control,30cm Wider Tire)

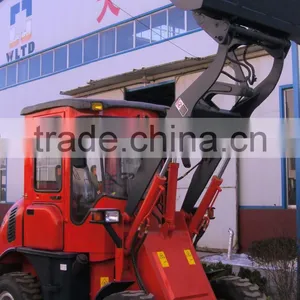

SWM615wheel Loader(with CE,EuroIII Emissions Engine,Air-conditioning, Triple Valve Pilot Control,30cm Wider Tire) thumbnail-1

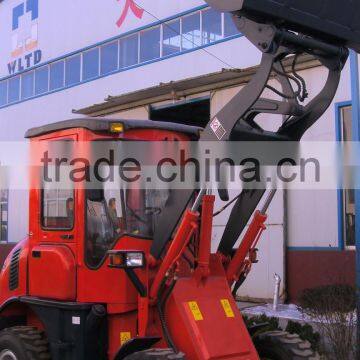

SWM615wheel Loader(with CE,EuroIII Emissions Engine,Air-conditioning, Triple Valve Pilot Control,30cm Wider Tire) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
SWLTD
Model Number:
SWM615
Contact Supplier Request Quote Chat Now
Shandong Weili World Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name SWLTD
Model Number SWM615
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 4800*1770*2720
Rated Load 1200kg
Certification CE
Warranty 12 Months
After-sales Service Provided Overseas service center available

1)Rated load capacity (t)                                    1.2

Rated differ capacity (m3)                                   0.6

Max dump clearance (mm)  (with teeth)2650   (without teeth)  2700

Unloading distance at max dump clearance (with teeth) 1050     (without teeth) 1020

Upturning angle of bucket

Lowest position (bucket pins ground clearance 100)               450

Transport position (bucket pins ground clearance 600)            500

Highest position (bucket pins ground clearance 3080)             540

Lift time of bucket (full load) (s)                       3.3

Fall time of bucket (idle load) (s)                     2.2

Discharge time of bucket (s)                            0.5

Maximum traveling speed (km/h)                     16

Peak traction (kgf)                                         2587

Hydraulic cylinder of rotating bucket               3665

Lifting hydraulic cylinder                                2142

Max lift capacity of bucket (kgf)                     1430

Max gradeability (%)                                     60

Steering locking angle (0)                             ±350

Min turning radius (mm)

Offside of bucket             4850             Offside of rear wheel         4500

Hunting angle of rear axle (0)                       ±12

2)    Major Dimensions and Weight

Full length (with the bucket bottom on the ground) (mm) (with teeth) 4800   (without teeth)4680

Full width (bucket width)(mm)                       1730

Full height (cab top) (mm)                            2720

Wheel base(mm)                                         2005

Tread (mm)                                                 1345

Min ground clearance                                   260

Vehicle operating  weight                              3268

3)    Engine

Engine model                                 Xinchai 498BT(with euro III)

Type              In-line arrangement, water cooling, four-stroke diesel

Rated power (KW)                                 36.8KW

Rated speed(r/min)                               2200

Total displacement (L)                           3.168

Number of cylinders (PC)                         4

Cylinder diameter (mm)                           98

Piston stroke (mm)                                105

Method of staring                                   Electric
