Specifications
mini wheel loader ZL10BCE or EPA
Pilot control
Engine:Changchai,Xinchai,Weichai
Rated load:1000kg
SHANDONG WEILI WORLD MACHINERY CO.,LTD
Features
1. The ZL10B wheel loader has a high-reliability torque converter, gearbox, drive axle and brake system.
2. With the high-reliability engine, the wheel loader can lower the oil consumption, noise and emissions.
3.The wheel loader uses the hard structural parts and powerful working device to strengthen the excavating force.
4.The wheel loader uses an advanced hydraulic system and rigid steel structure.
5. Adjusting the swinging angle of high and rear axle, the wheel loader cansmooth the operations in narrow spaces or on rugged sites and so on.
Cab
The cab of our wheel loader has the advantages of large space, low noise, comfort and safety, easy operation, dustproof,
sound insulation, vibration reduction, UV protection and so on. It is equipped with a full rear-view mirror. It has the molding
and high-quality seats made by professional manufacturing technology and featured damping suspension.
1.0 Engine Details (1) Model: Changcai ZN485Q (2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine (3) Rated Power: 26KW (35.36 H.P.) (4) Rated Speed: 2200 r/min (rpm) (5) Fuel Consumption ratio in standard working condition: 269g/kw.h |
| 2.0 Steering System (1) Cycloid full hydraulic steering system: BZZ-125 (2) System Pressure: 10MPa (3) Steering Cylinder: Φ76x Φ63x180 |
| 3.0 Bucket (1) Bucket Capacity: 0.5 m3 (2) Bucket width: 1400mm (3) Bucket type: Heavy-duty bolt on teeth (4) Max. Breakout Force: 32KN (5) Rated Load: 1000kg (6) Operating Weight: 2880kg |
| 4.0 Overall Dimensions (1) Overall Length (Bucket on ground position): 4900mm (2) Overall Height (a) Ground to Cab Top: 2520mm (b) Ground to exhaust pipe: It is below from the top of cabin (c) Dumping Height: 2545mm (3) Overall Width: 1685mm |
| 5.0 Operating Specifications (1) Drive Means: Four-wheel drive (2) Min Turning Radius: 4200mm (3) Driving System: mechanical (4) Dumping Height: 2545mm (5) Min Base to the ground: 240mm (6) Time of raise: 3.05sec. (7) Hydraulic cycle time: 9sec. |
| 6.0 Brake System (1) Service Brake: Four Wheel Hydraulic spread-shoed brake (2) Parking Brake: Hand operated |

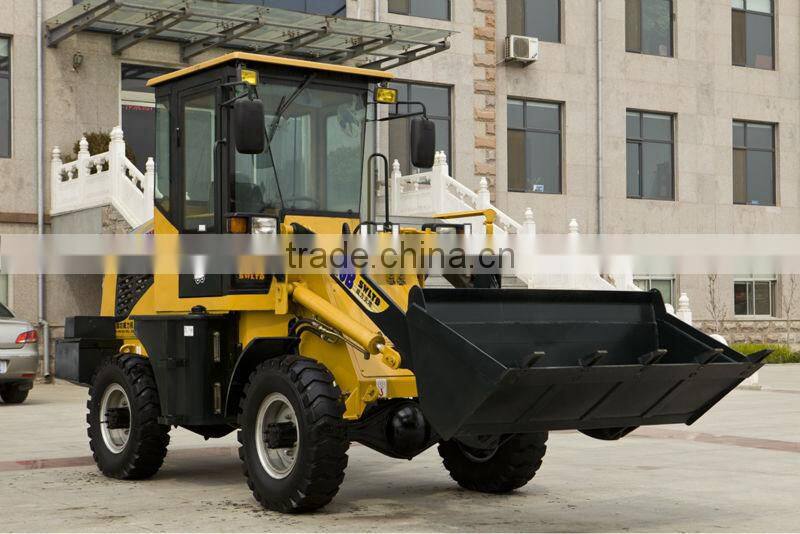

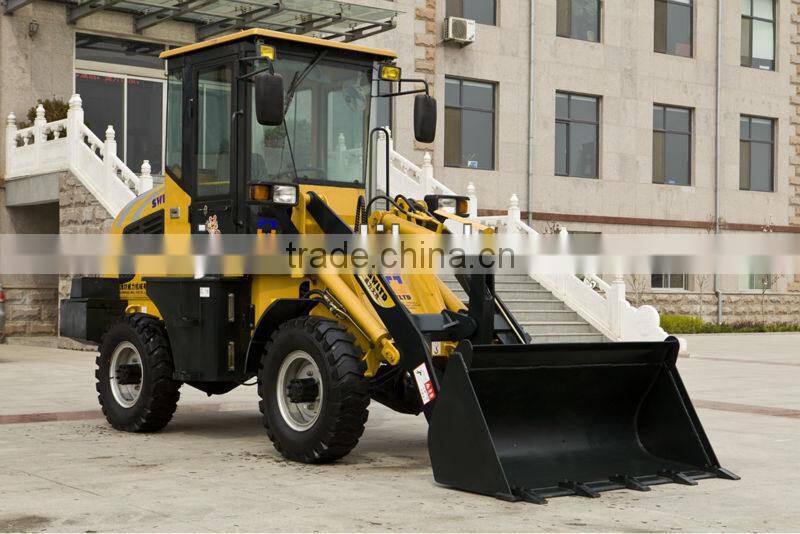

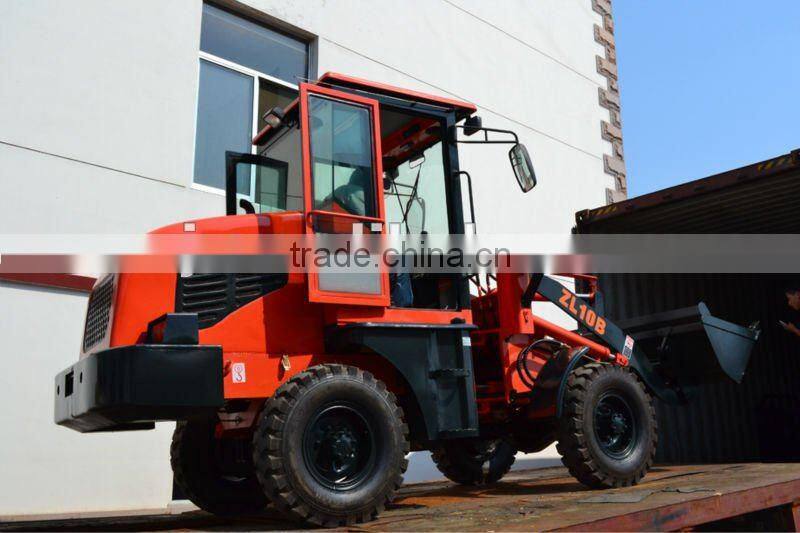

Pictures
Dear clients,if you are interested in our ZL10B Wheel Loader ,please e-mail us or call us at 0086-532-89096580 /0086 158 6427 9137(24 hours hot line) ,we welcome your specific inquiry . We aim to provide the most reliable products and service,to create the maximum value for customers .
