Specifications
1.CE Certificated2.Engine:Changchai L22
3.Hydraulic pilot control
4.Various tools and quick hitch device

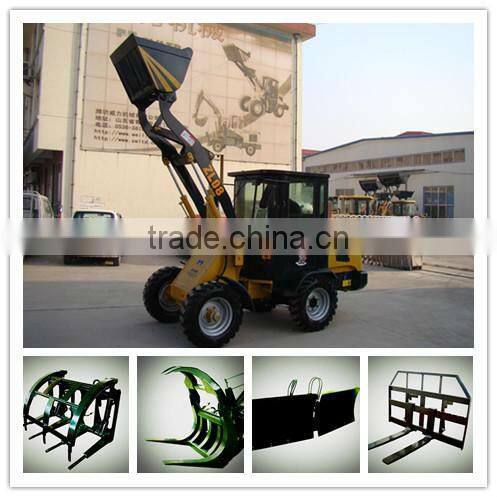

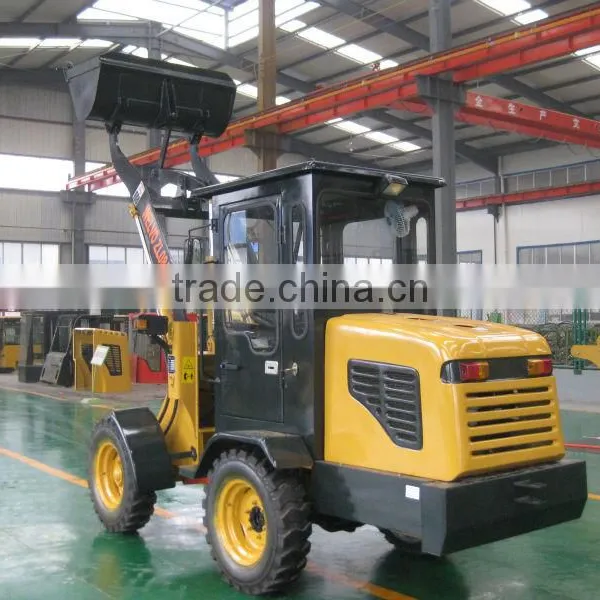

ZL08 Wheel Loader
Features
1. The ZL08 wheel loader uses the branded Changchai diesel engine as power, so it has the advantages of easy start, less oil consumption, strong power and environmental protection.
2. Using the dedicated engineering axles, the machine can make improvement for integral mechanical gearboxes, dual steering cylinders and so on, and can facilitate the operation.
3. The wheel loader uses the branded big-flow hydraulic pumps and steering gear. The hoisting arms, direction change and so on take less time and the work efficiency is greatly increased through its matching with the diesel engine.
4. With 24V battery (dual battery), the wheel loader will have an easy start in winter.
5. Its branded and high-quality rubber tire is far better for long-time operations in various environments.
6. The wheel loader employs the high-articulated structure (the distance between upper and lower hinge plates is short and the turning radius is small) to further stabilize the driving operation.
7. Featuring unique appearance, the cab of the wheel loader has a large operating space and wide vision so the machine achieves much safer operation.
8. The wheel loader has overhauled cover that is easy for maintenance.
Technical Specifications
| Main Technical Parameter of ZL08-I | ||
| Item | Parameter | Note |
| Rated load (kg) | 800 | |
| Bucket capacity (m3) | 0.4 | |
| Wheel tread (mm) | 1160 | |
| Wheel base (mm) | 1620 | |
| Min turning radius (mm) | 3000 | |
| Min ground clearance (mm) | 220 | |
| Dumping height (mm) | 2300 | |
| Corresponding dumping reach (mm) | 900 | |
| Lifting time (s) | 4.5 | |
| Hydraulic cycle time (s) | 9 | |
| Maximum excavating force (KN) | 21 | |
| Drive mode | Rear-axle drive | |
| Machine weight (kg) | 2000 | |

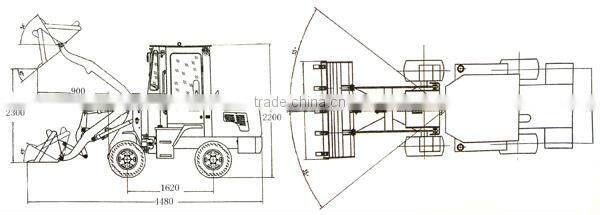

| Overall dimensions (mm) (Length*width*height) | 4480*1400*2200 | |
| Engine model | Changchai L22 | |
| Rated power of engine (kw) | 15.5 | |
| Rated speed of engine (rpm) | 2200 | |
Welvo is a China-based wheel loader manufacturer and supplier. We offer wheel loader, wheel loader part, pallet fork, and so on. Our high quality products are offered at competitive prices. We can complete the full chain of manufacturing forklift trucks, rims, etc. right here in China. Our lower manufacturing cost can save your purchasing cost. More details on each of our products are shown on the description page.
