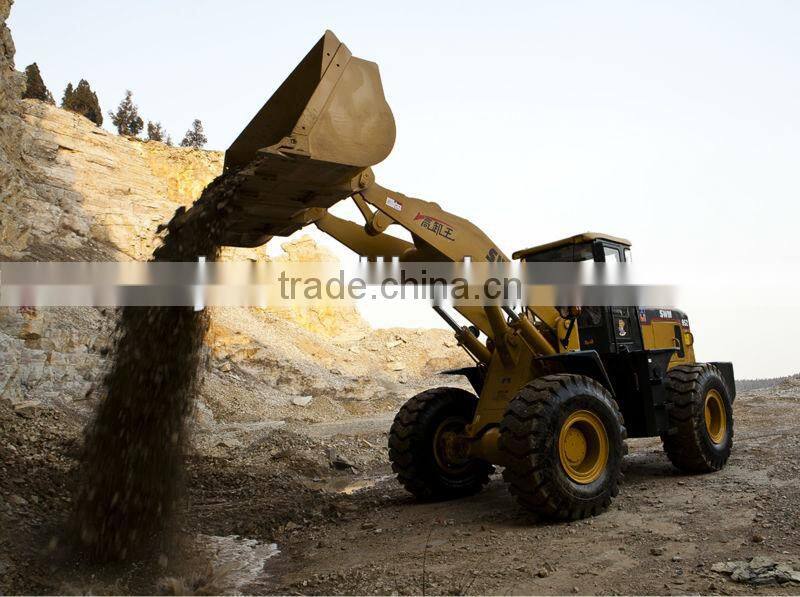

5t wheel loader ;heavy duty wheel loader ;SWLTD wheel loader

Specifications

5 TON wheel loader SWM952
CE or EPA
Joystick valve
Engine,Weichai,ZF transmission
Hydraulic Pilot Control

                                                         1   Features

(1). The wheel loader uses a high-rigidity frame which is made of thickened steel and characterized by a large frame



structure. The machine has the advantages of load-proof,automatic robot welding andanti-torsion.

(2). Equipped with a large-wheelbase underpan, the wheel loader can enhance the driving and operational stability,



increase the traction and so on.

(3). With a heavy-duty transmission system featuring high overload resistance coefficient, fatigue resistance and



long service life, the wheel loader is especially suitable for continuous high-intensity operation.

(4). Its large-diameter front and rear transmission shaft has the advantages of powerful anti-torsion capability, difficult



deformation under heavy load, and stable transmission of kinetic energy.





                                                                  2.Technical Specifications



Main Technical Parameter of SWM952
Item	Parameter
Rated load (kg)	5000
Bucket capacity (m3)	2.5
Wheel tread (mm)	2200
Wheel base (mm)	3310
Min turning radius (mm)	7150
Min ground clearance (mm)	395
Dumping height (mm)	3580
Corresponding dumping reach (mm)	1292
Lifting time (s)	5.9
Hydraulic cycle time (s)	11.4
Maximum excavating force (KN)	186
Drive mode	Four are Drive
Machine weight (kg)	17150
Overall dimensions (mm) (Length*width*height)	8365*3220*3390
Engine model	Weichai WD10G-210E-12
Rated power of engine (kw)	162
Rated speed of engine (rpm)	2200



                                                               3.  OPTIONAL EQUIPMENTS





                                                                                   Certificates







                                                                        Pictures





Dear clients ,if you are interested in our SWM952 Wheel  loader  ,please don't hesitate to e-mail us or call us at 0086 532 89096580 directly ,we welcome your specific inquiry .
