Specifications
construction equipment1. Rated load:5000Kg
2. Bucket capcity:2.5m3

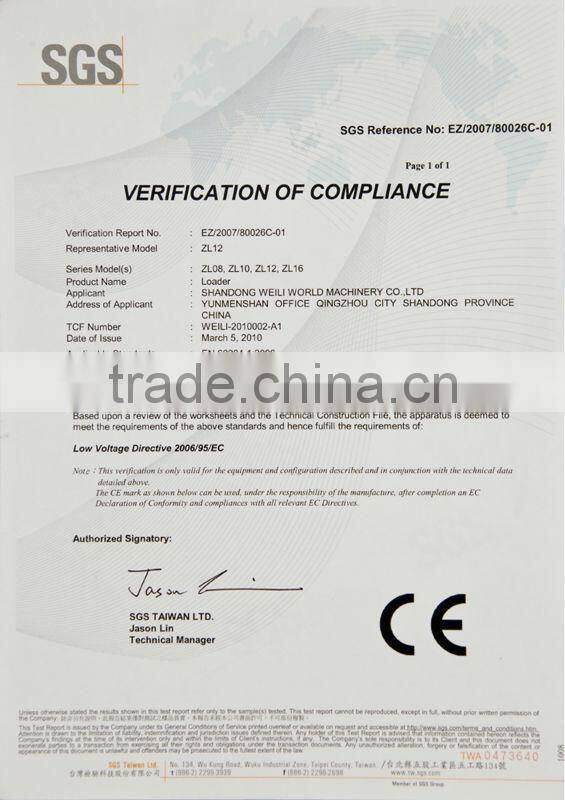

3.Certificate:CE
4.Power:162Kw ,A/C
Features
Heavy Duty Design
(1). The wheel loader uses a high-rigidity frame which is made of thickened steel and characterized by a large frame structure. The machine has the advantages of load-proof,automatic robot welding andanti-torsion.
(2). Equipped with a large-wheelbase underpan, the wheel loader can enhance the driving and operational stability, increase the traction and so on.
(3). With a heavy-duty transmission system featuring high overload resistance coefficient, fatigue resistance and long service life, the wheel loader is especially suitable for continuous high-intensity operation.
(4). Its large-diameter front and rear transmission shaft has the advantages of powerful anti-torsion capability, difficult deformation under heavy load, and stable transmission of kinetic energy.

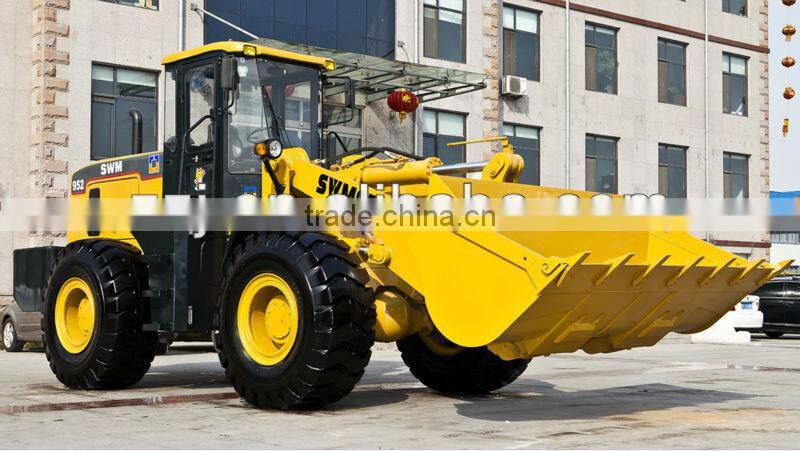

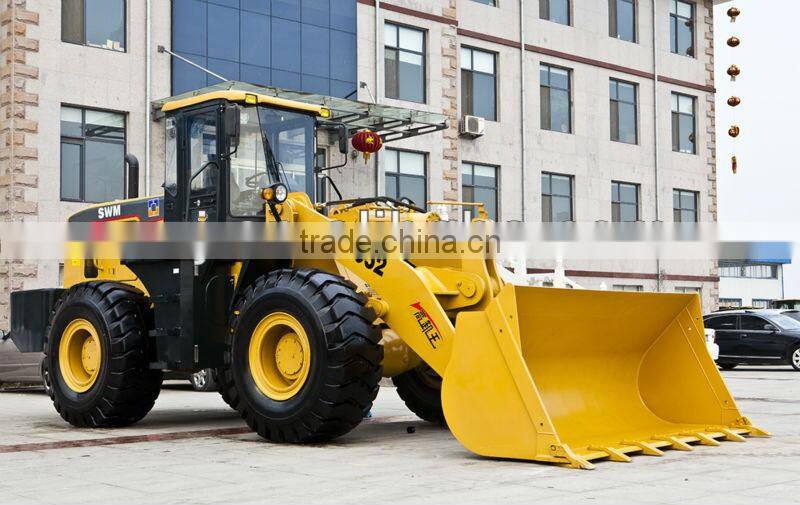

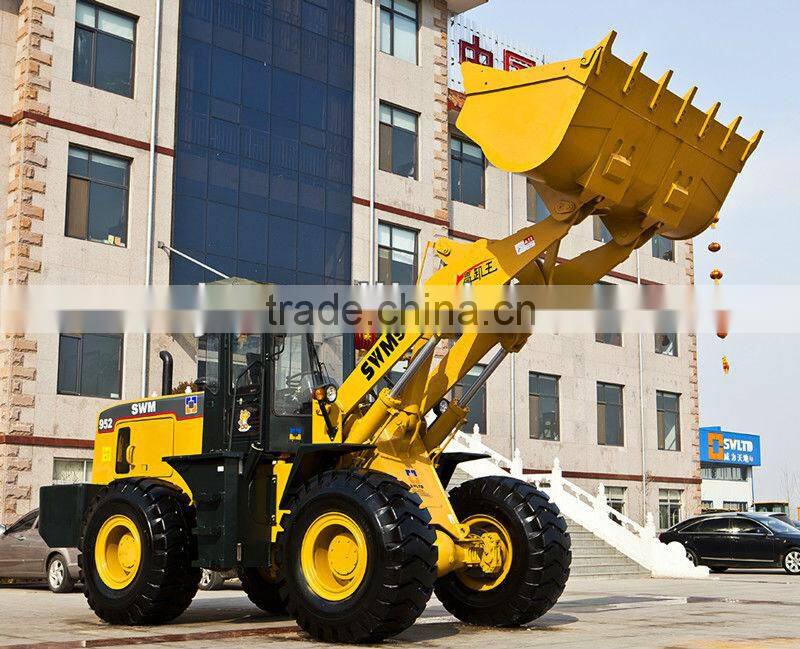

Wheel loader, heavy equipment SWM952 , small construction equipment
1. Main data
Item | SWM952 |
Rated load (kg) | 5000 |
Bucked capacity(m3) | 2.5 |
Wheel tread(mm) | 2200 |
Wheel base(mm) | 3310 |
Mini turning radius(mm) | 7150 |
Mini ground clearance (mm) | 395 |
Dumping height (mm) | 3580 |
Corresponding dumping reach (mm) | 1290 |
Lifting time(s) | 5.9 |
Hydraulic cycle time(s) | 11.4 |
Maximum excavating(KN) | 186 |
Drive mode
| Four-wheel drive |
Machine weight(kg) | 17150 |
Overall dimensions(mm)(length*width*height) | 8365*3220*3390 |
Engine model | Weichai steyr WD615G-220 |
Rated power of engine(KW) | 162 |
Rated speed of engine(RPM) | 2200 |
Dear if you ar e interested in out SWM952 wheel loader ,please feel free to send us a inquiry ,we welcome your specific inquiry .
