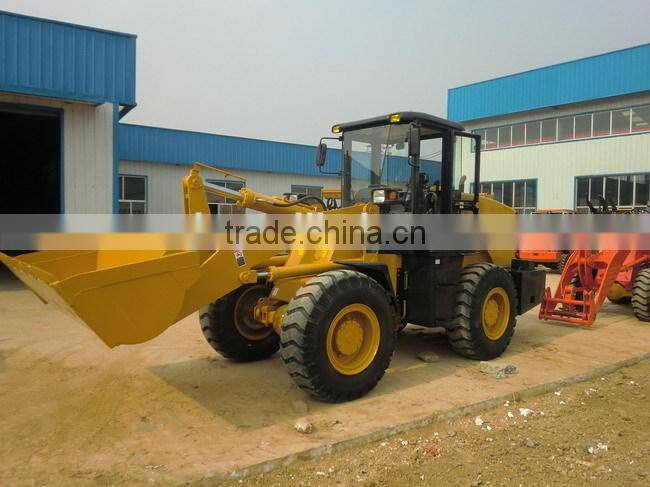

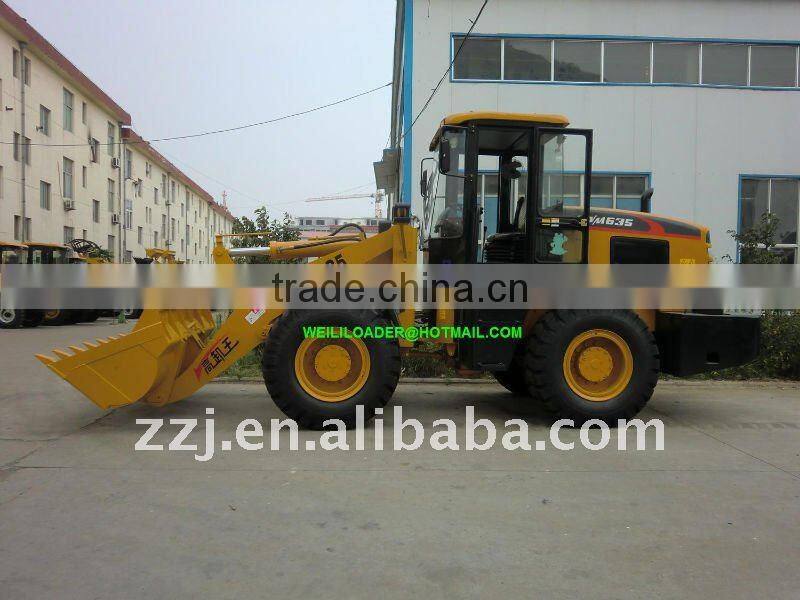

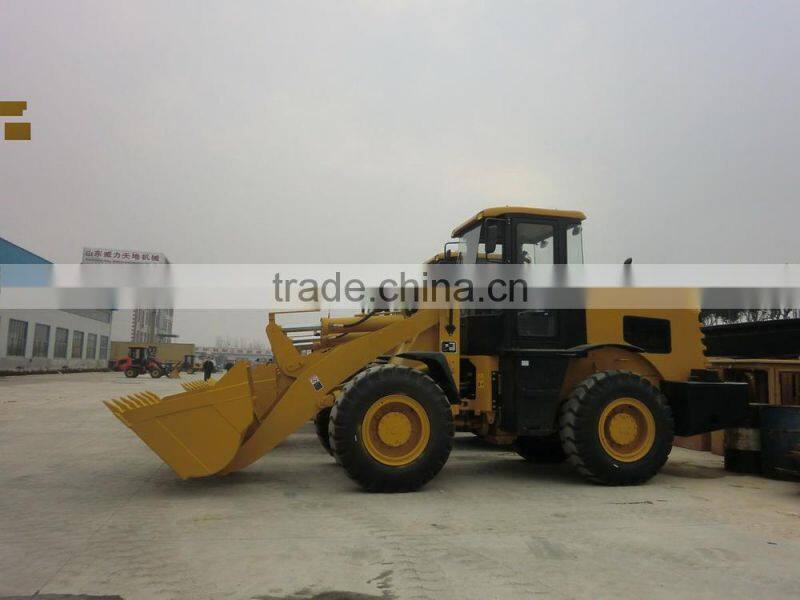

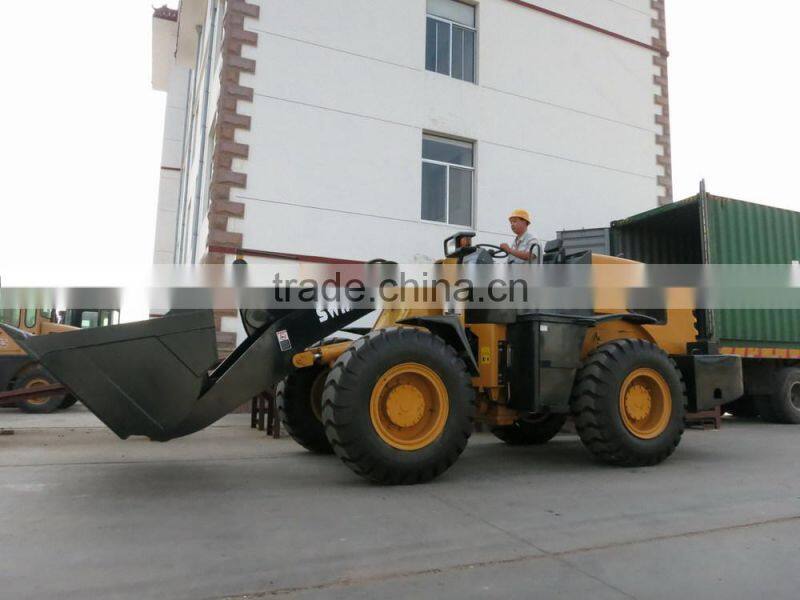

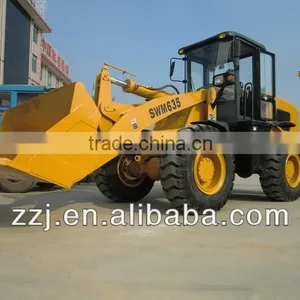

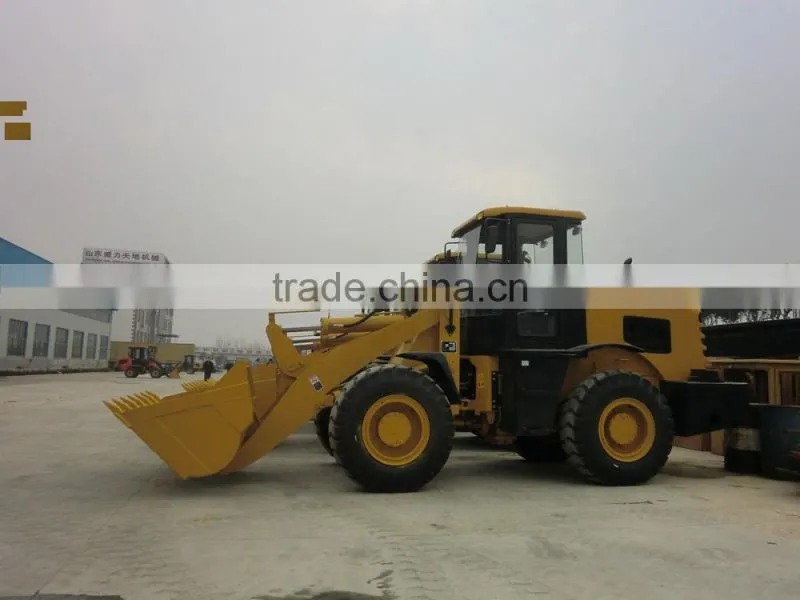

New Brand SWM635 WHEEL LOADER WITH CUMMINS ENGINE WITH CE

Model

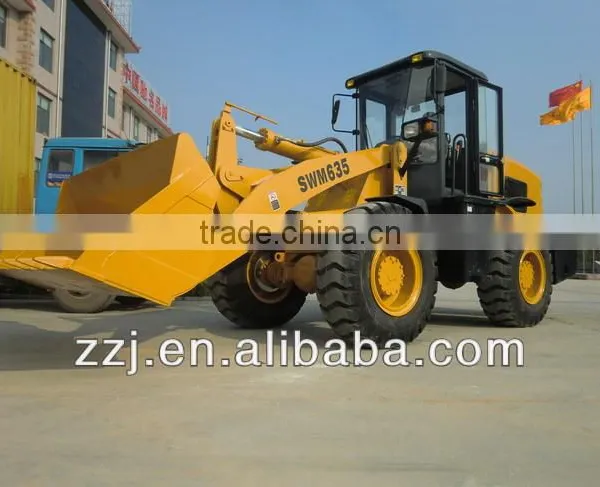

SWM635 WHEEL LOADER

Engine

Model:

Xichai CA6110/125G-DG10

Engine type:

In-line arrangement, water-cooled, four-cylinder diesel Engine

Rated Power:

92KW (125HP)

Rated Speed:

2200 R/MIN (RPM)

Fuel consumption

Rated in standard working condition: 251.6g/kw.h

Transmission system

Type: Fixed-spindle Power shift

Shift gear control oil pressure: 1373 ~1569MPa

Rated input speed: 2200 (rpm)

Bucket

Bucket Capacity:

1.7 m3

Bucket width:

1910mm

Bucket type:

Heavy-duty bolt on teeth

Max. Breakout Force:

120.6KN

Rated Load:

3500kg

Operating Weight:

9940kg

Overall Dimensions

Overall Length:

(Bucket on ground position): 7120mm

Overall Height:

3120mm

Ground to Cab Top:

2880mm

Ground to exhaust pipe:

It is below from the top of cabin

Dumping Height:

3110mm

Overall Width:

2400mm

Operating Specifications

Drive Means:

Four-wheel drive

Steering System

Articulated Frame with hydraulic power steering

Min Turning Radius:

5600mm

Driving System:

Hydraulic converter

Brake System

Service Brake:

Four Wheel Hydraulic disk brake

Parking Brake:

Hand operated

Tyre

Model:

17.5-25

Width:

41cm

Diameter:

128cm

Wheelbase

2630mm

Track

1800mm
