Specifications
mini front end loader1.A6110 ENGINE OF 92KW
2. 3500KG OF LOAD, 1.7CBM OF BUKET CAPACITY
3.CONVERTER,
4.JOYSTICK

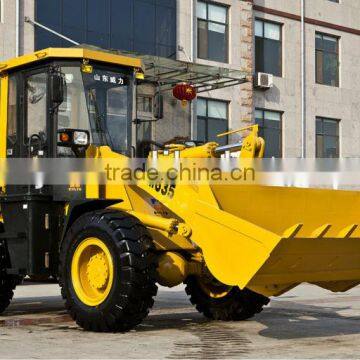

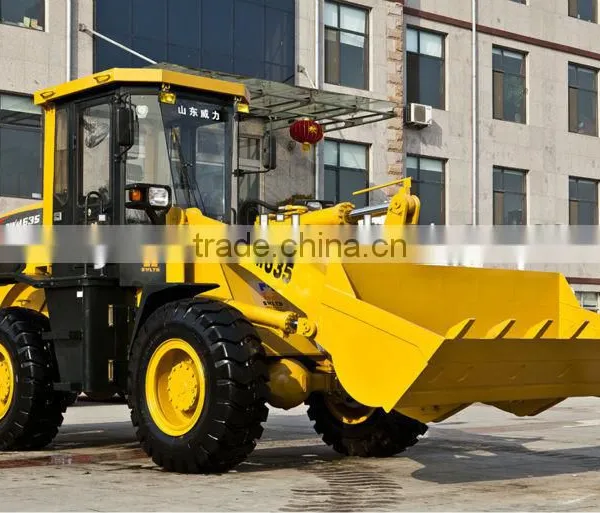

mini front end loader
1.0 Engine Details (1) Model: 6110/125G5-DG10 (2) Engine type:In-line arrangement, water-cooled, four-cycle diesel Engine (3) Rated Power:92KW (125.12H.P.) (4) Rated Speed:2200 r/p.min (rpm) |
2.0 Transmission System (1) Type:Fixed-spindle Power shift (2) Shift gearcontrol oil pressure: 1.2~1.5MPa (3) Rated inputspeed: 2500 (rpm) |
| 3.0 Bucket (1) BucketCapacity: 1.7 m3 (2) Dump Height: 3110mm (3) Bucket type:Heavy-duty bolt on teeth (4) Max. BreakoutForce: 120.6KN (5) Rated Load: 3500kg (6) OperatingWeight: 9940kg. |
| 4.0 Overall Dimensions (1) Overall Length(Bucket on ground position): 7120mm (2) Overall Height (3) Ground to CabTop: 2820mm (4) Ground toexhaust pipe: It is below from the top of cabin (5) Overall Width: 2400mm |
| 5.0 Operating Specifications (1) SteeringSystem: Articulated Frame with hydraulic power steering (2) Min Turning Radius: 5600mm (3) Driving System:Hydraulic converter |
| 6.0 Brake System (1) Service Brake:Air over Hydraulic disc brake on Four Wheels (2) Parking Brake:Hand operated |
| |
