Specifications
SWM635A6110 ENGINE OF 92KW
5300KG OF LIFT CAPACITY, 1.7CBM OF BUKET CAPACITY
CONVERTER,
JOYSTICK, QUICK HITCH
Specifications of swm635 wheel loader
1.0 Engine Details
(1) Model: 6110/125G5-DG10
(2) Engine type:In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power:92KW (125.12H.P.)
(4) Rated Speed:2200 r/p.min (rpm)
2.0 Transmission System
(1) Type:Fixed-spindle Power shift
(2) Shift gearcontrol oil pressure: 1.2~1.5MPa
(3) Rated inputspeed: 2500 (rpm)
3.0 Bucket
(1) BucketCapacity: 1.7 m3
(2) Dump Height: 3110mm
(3) Bucket type:Heavy-duty bolt on teeth
(4) Max. BreakoutForce: 120.6KN
(5) Rated Load: 3500kg
(6) OperatingWeight: 9940kg.
4.0 Overall Dimensions
(1) Overall Length(Bucket on ground position): 7120mm
(2) Overall Height
(a) Ground to CabTop: 2820mm
(b) Ground toexhaust pipe: It is below from the top of cabin
((3) Overall Width: 2400mm
5.0 Operating Specifications
(1) SteeringSystem: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 5600mm
(3) Driving System:Hydraulic converter
6.0 Brake System
(1) Service Brake:Air over Hydraulic disc brake on Four Wheels
(2) Parking Brake:Hand operated
7.0 Tyre
(1) Model: 17.5-25(2)Width: 41cm (3) Diameter: 128cm
8.0 Wheelbase: 2630mm
9.0Track: 1800mm

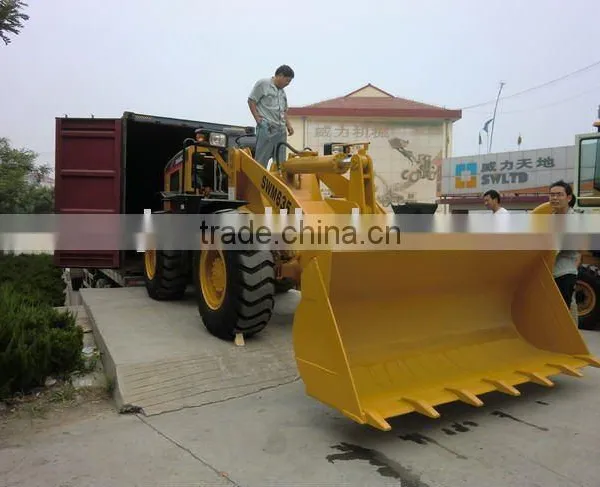

SWM635 wheel loader adopts Changchai Diesel Engine, which has strong horsepower, improved energy efficiency and low fuel consumption. The loader adopts hydrostatic and the hydraulic mechanical power gearshift transmission box, which can automatically adjust the output torque. The loader adopts the full hydraulic flow-enlarged steering system, which is flexible and easy to operate, small in its turning radius and stable in its performance. It designed and built to deliver exceptional performance and versatility, ease of operation and serviceability.
Their power, small size and versatility make the wheel loaders ideal for a wide variety of applications:landscaping, nurseries, residential construction, agriculture and industrial material handling, and recycling to name just a few.
