SWLTD Wheel Loader SWM620

SWLTD Wheel Loader SWM620 thumbnail-1
SWLTD Wheel Loader SWM620 photo-1
US$ 13,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
SWLTD
Model Number:
SWM620
Contact Supplier Request Quote Chat Now
Shandong Weili World Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name SWLTD
Model Number SWM620
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 5630*2100*2850mm
Rated Load 2000kg
Certification CE BV ISO
Warranty 1 year or 1000 working hours
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Rated load :2000kg
Engine Weichai ZH 4100K14-3
Hydro-mechanical transmission
Joystick valvle
Hydraulic Pallet fork



SWLTD wheel loader SWM620





                                                                Features





1. The wheel loader uses a hydro-mechanical transmission which can make full use of engine power and can have an automatic variable transmission according to the external resistance. It avoids power failure of the engine due to the suddenly increased external load. The wheel loader can absorb and eliminate the vibration and impact of external load on engine. It protects the drive system and engine, increases the service life, facilitates the operation and achieves higher economical and production efficiency.


2. The wheel loader uses a central articulated frame and load sensing hydraulic steering gear. The machine can achieve a short turning radius and superposition of the front and rear tracks upon turning (this will ensure safe driving). The wheel loader has the advantages of easy operation on narrow sites, flexible operation, safety, convenient maintenance and so on.

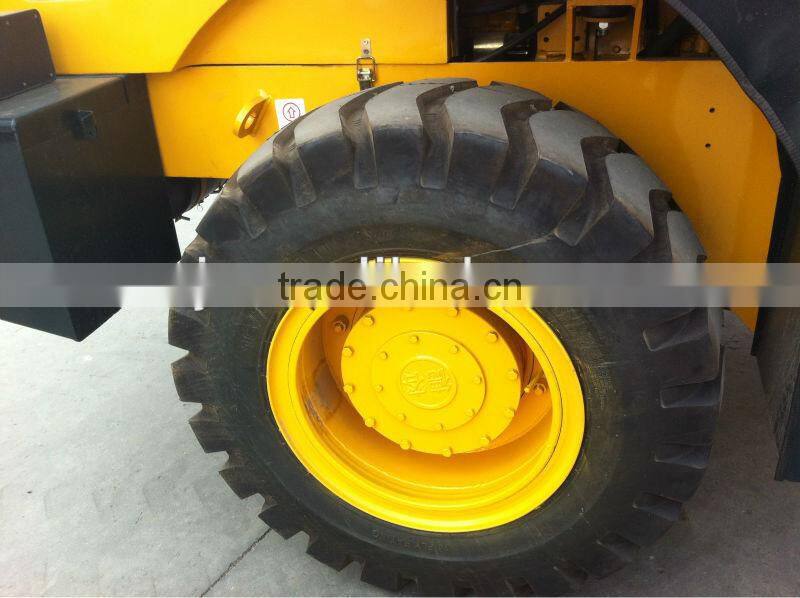

3. The wheel loader uses four-wheel drive, low-pressure wide base off-road tires and an oscillating rear axle, so it has sound off-road performance, good traffic ability and larger traction.


4. The wheel loader is equipped with a single-pipe type hydraulic four-wheel brake.

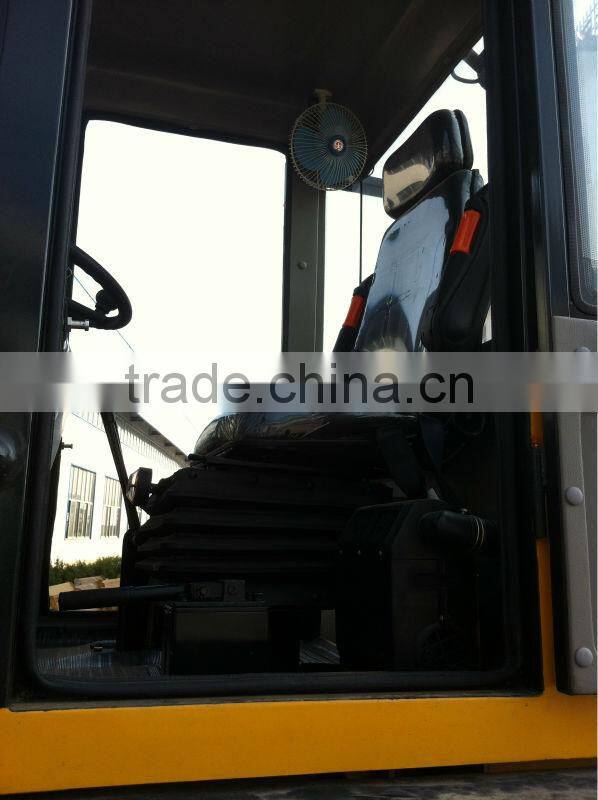

5. The wheel loader has a fully enclosed cab and the seats have the functions of vibration reduction and easy adjustment. The machine offers the driver a comfortable drive and wide view.



                                                    Technical Specifications

Main Technical Parameter of SWM620
Item Parameter
Rated load (kg) 2000
Bucket capacity (m3) 1.2
Wheel tread (mm) 1470
Wheel base (mm) 2160
Min turning radius (mm) 5200
Min ground clearance (mm) 340
Dumping height (mm) 2600
Corresponding dumping reach (mm) 1140
Lifting time (s) 6
Hydraulic cycle time (s) 10
Maximum excavating force (KN) 37.75
Drive mode Four are Drive
Machine weight (kg) 5310
Overall dimensions (mm) (Length*width*height) 5630*2100*2850
Engine model Weichai ZH4100K14-3
Rated power of engine (kw) 45
Rated speed of engine (rpm) 2400



                                  Optional Equipments

             SWLTD wheel loader SWM620



                                              Certificates                                                                 SWLTD wheel loader SWM620          SWLTD wheel loader SWM620

                                                             CE                                                                                                            ISO SWLTD wheel loader SWM620





SWLTD wheel loader SWM620



SWLTD wheel loader SWM620



 SWLTD wheel loader SWM620SWLTD wheel loader SWM620SWLTD wheel loader SWM620



 SWLTD wheel loader SWM620SWLTD wheel loader SWM620SWLTD wheel loader SWM620SWLTD wheel loader SWM620

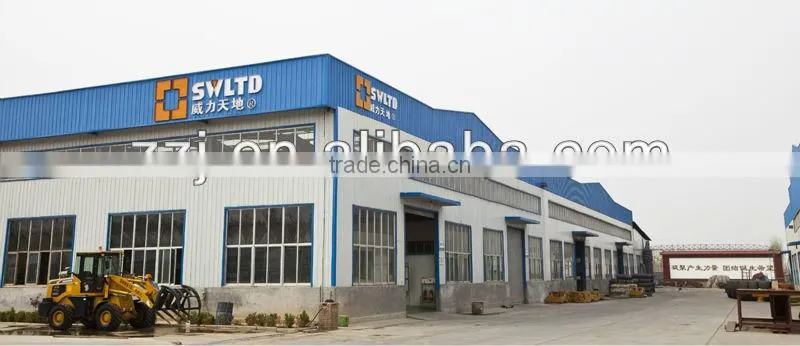

We are the professional and big manufacturer of the loaders andforklifts for over 17 years .



Our main products are as follows:



Wheel Loaders



800kg wheel loader  ZL08A ZL08B



1000kg wheel loader ZL10A ZL10B   ZL10F  SWM610



1200kg wheel loader ZL12F (best sell model)  SWM615  SWM618



1600kg wheel loader ZL16F



2000kg wheel loader SWM620



3500kg wheel loader SWM635



5000kg wheel loader SWM952



Rough Terrain Forklift --Hot Sale



2800kg   CPCY28

3500kg   CPCY35

5000kg   CPCY50

10000kg CPCY100



Diesel Forklift



3000kg and 3500kg CPC30 CPC35



Electric Forklift



1500kg    CPD15



It is our great pleasure to receive your specific inquiries .

Please send us inquiries or send email to  SWLTD wheel loader SWM620directly .



Our best wishes to you and your esteemed company .   :)     O(∩_∩)O
