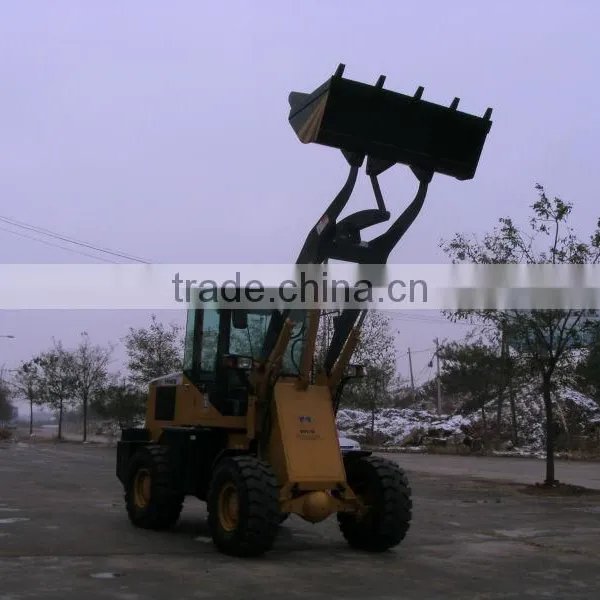

Help CenterSWM618 Wz30-25 Backhoe Loader
Related Products
Specifications
SWM618 wheel loaders1 CE Certification
2 18 years experience
3. OEM service
4. Rated load :1200 kg
Features
Features
1. The wheel loader uses a hydro-mechanical transmission which can make full use of engine power and can have automatic variable transmission according to the external resistance. It avoids power failure of the engine due to the suddenly increased external load. The wheel loader can absorb and eliminate the vibration and impact of external load on engine. It protects the drive system and engine, increases the service life, facilitates the operation and achieves higher economical and production efficiency.
2. The wheel loader uses the central articulated frame and load sensing hydraulic steering gear. The machine can achieveshort turning radius and superposition of the front and rear tracks upon turning (this will ensure safe driving). The wheel loader has the advantages of easy operation on narrow site, flexible operation, safety, convenient maintenance and so on.
3. The wheel loader uses four-wheel drive, low-pressure wide base off-road tires and an oscillating rear axle, so it has sound off-road performance, good trafficability and larger traction.
4. The wheel loader is equipped with a single-pipe type hydraulic four-wheel brake.
5. The wheel loader has a fully enclosed cab and the seats have the functions of vibration reduction and easy adjustment. The machine offers the driver a comfortable drive and wide view.
-----------------------------------------------------------------------------------------------------------------------------------------
Technical Specifications
| Main Technical Parameter of SWM618 | ||
| Item | Parameter | Note |
| Rated load (kg) | 1200 | |
| Bucket capacity (m3) | 0.7 | |
| Wheel tread (mm) | 1480 | |
| Wheel base (mm) | 2070 | |
| Min turning radius (mm) | Left 4532 Right 4332 | |
| Min ground clearance (mm) | 270 | |
| Dumping height (mm) | Tooth 3180 Toothless 3250 | |
| Corresponding dumping reach (mm) | Tooth 910 Toothless 810 | |
| Lifting time (s) | 4.75 | |
| Hydraulic cycle time (s) | 7.57 | |
| Maximum excavating force (KN) | Bucket 40.9 Swing arm 22.5 | |
| Drive mode | Four-wheel drive | |
| Machine weight (kg) | 3916 | |
| Overall dimensions (mm) (Length*width*height) | 5280*1870*2730 | |
| Engine model | ZH4100Y4 | |
| Rated power of engine (kw) | 44 | |
| Rated speed of engine (rpm) | 2200 | |
-----------------------------------------------------------------------------------------------------------------------------------------
CERTIFICATION
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Our company is the only Importing and Exporting Company invested by our Head Company, Shandong Weili World Machinery Co., Ltd. The factory is located in Qingzhou City, Shandong Province, and it is one big and professional Wheel Loader and Forklift manufacturer.
We have many years experience in exporting the machinery products, with the main products are as construction machinery, mining machinery, agricultural machinery and spare parts for all machineries. And the specific products are Wheel Loader, Forklift, Roller, Excavator, Motor Grader, Dredger, Gold Mining Machines, Environmental Protection Machines, etc.
Borderless Friendship, Endless Cooperation. The company expects friendship, cooperation and development.
