SWM618 mini loader for sale

Specifications

mniloader SWM618
CE
Manipulation of deft and agile
Safe and reliable
Hydraulic machanical transmission

Features



1. The wheel loader uses a hydro-mechanical transmission which can make full use of engine power and can have automatic variable transmission according to the external resistance. It avoids power failure of the engine due to the suddenly increased external load. The wheel loader can absorb and eliminate the vibration and impact of external load on engine. It protects the drive system and engine, increases the service life, facilitates the operation and achieves higher economical and production efficiency.

2. The wheel loader uses the central articulated frame and load sensing hydraulic steering gear. The machine can achieveshort turning radius and superposition of the front and rear tracks upon turning (this will ensure safe driving). The wheel loader has the advantages of easy operation on narrow site, flexible operation, safety, convenient maintenance and so on.

3. The wheel loader uses four-wheel drive, low-pressure wide base off-road tires and an oscillating rear axle, so it has sound off-road performance, good trafficability and larger traction.

4. The wheel loader is equipped with a single-pipe type hydraulic four-wheel brake.

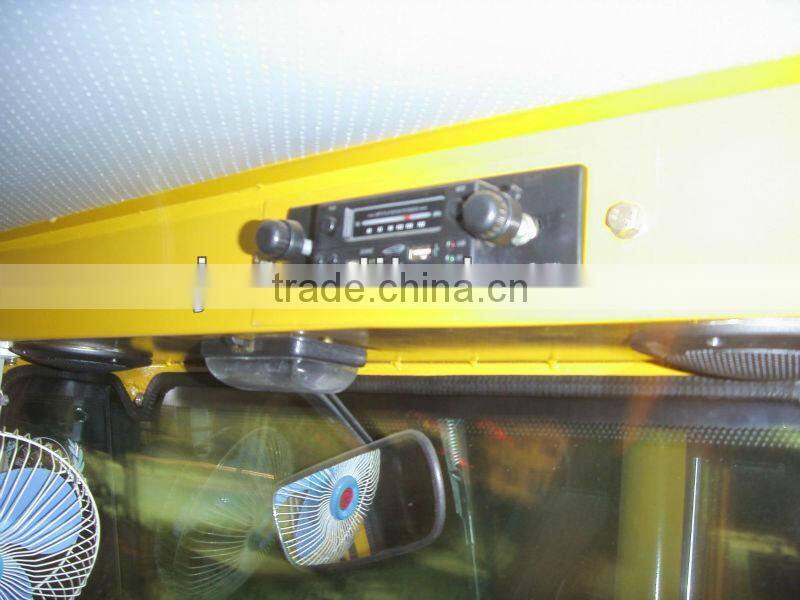

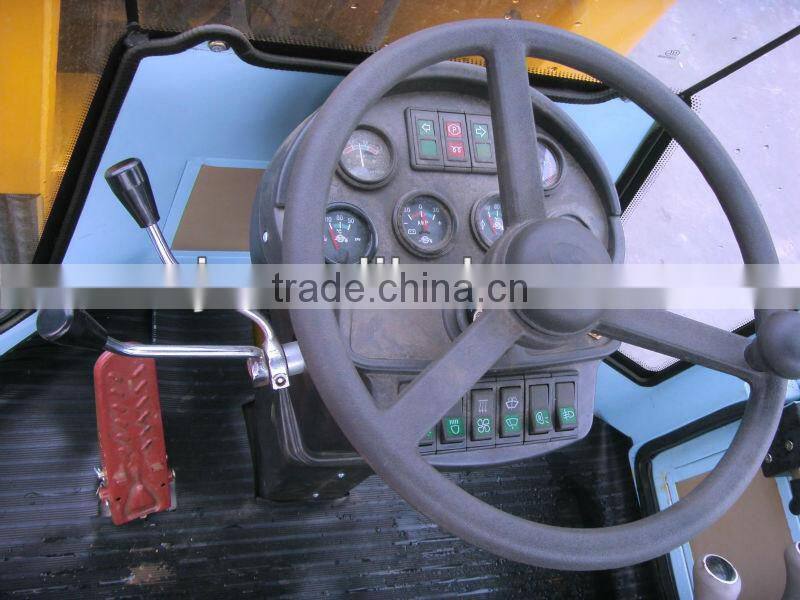

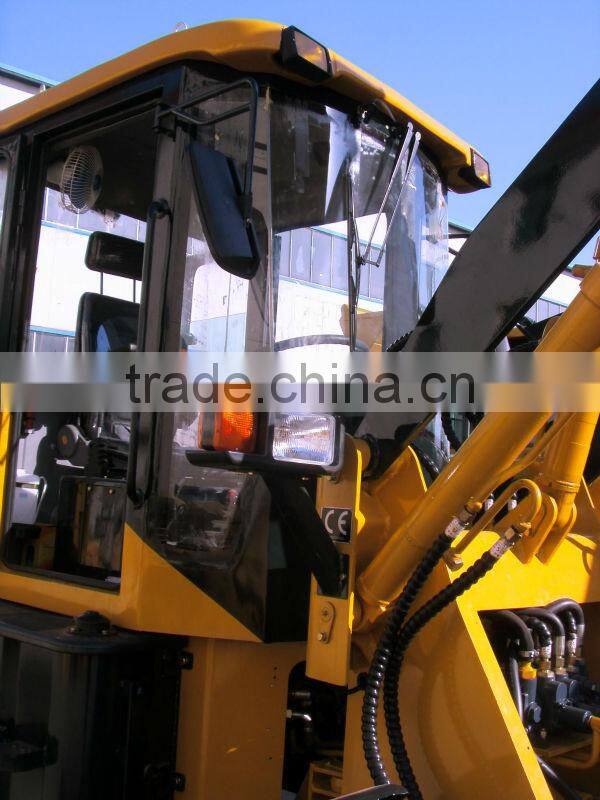

5. The wheel loader has a fully enclosed cab and the seats have the functions of vibration reduction and easy adjustment. The machine offers the driver a comfortable drive and wide view.



Technical Specifications



Main Technical Parameter of SWM618
Item	Parameter
Rated load (kg)	1200
Bucket capacity (m3)	0.7
Wheel tread (mm)	1480
Wheel base (mm)	2070
Min turning radius (mm)	left4532 right4332
Min ground clearance (mm)	270
Dumping height (mm)	Tooth3180 Toothless3250
Corresponding dumping reach (mm)	Tooth910 Toothless810
Lifting time (s)	4.75
Hydraulic cycle time (s)	7.57
Maximum excavating force (KN)	Bucket40.9 Swiming arm22.5
Drive mode	Four are Drive
Machine weight (kg)	3916
Overall dimensions (mm) (Length*width*height)	5280*1870*2730

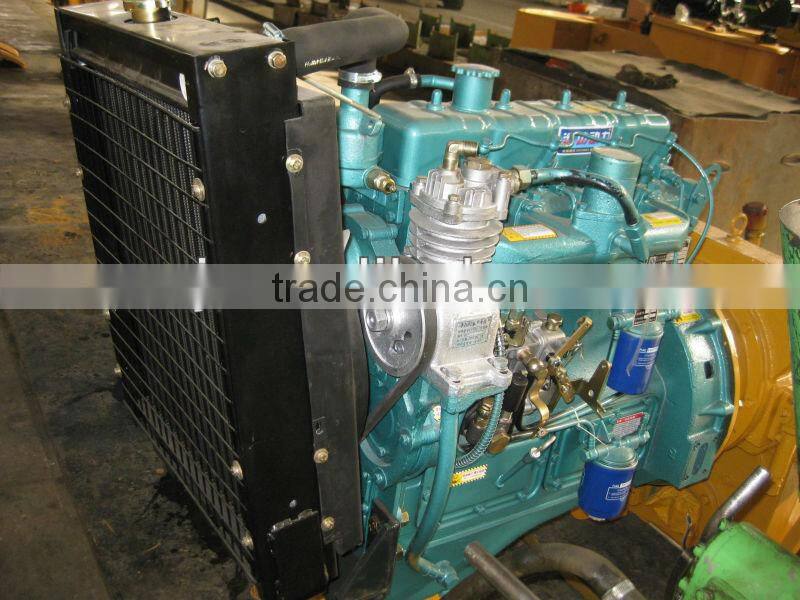

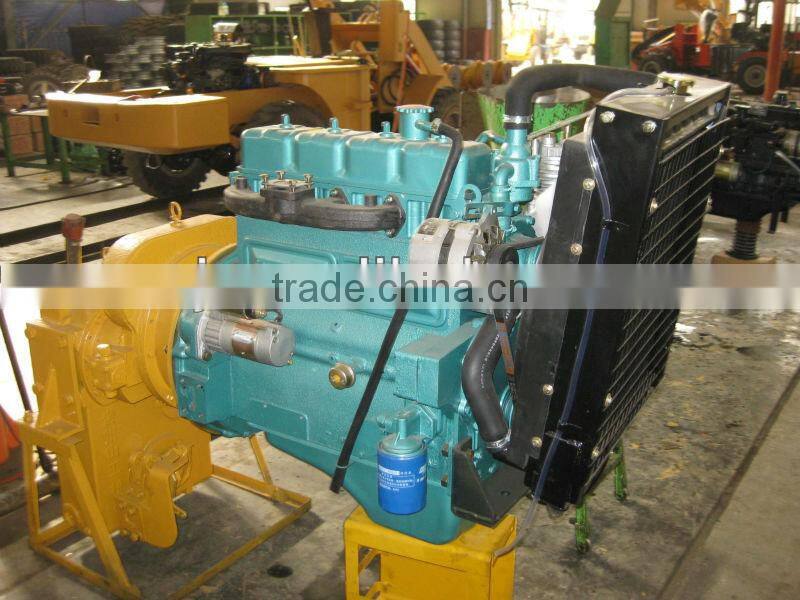

Engine model	ZH4100Y4
Rated power of engine (kw)	44
Rated speed of engine (rpm)	2200
