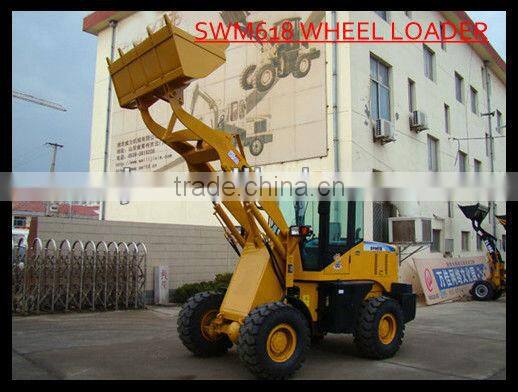

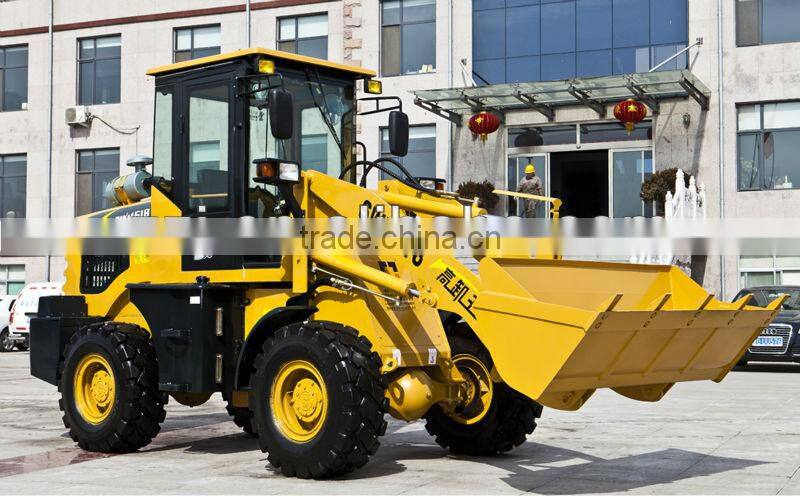

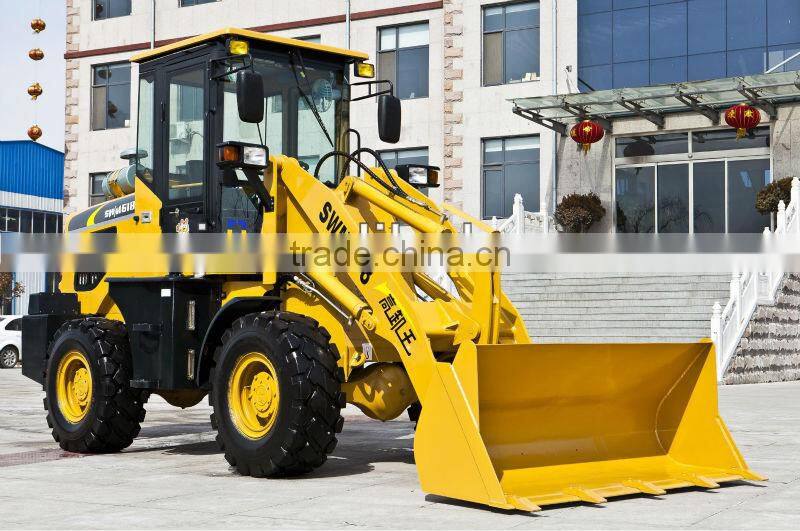

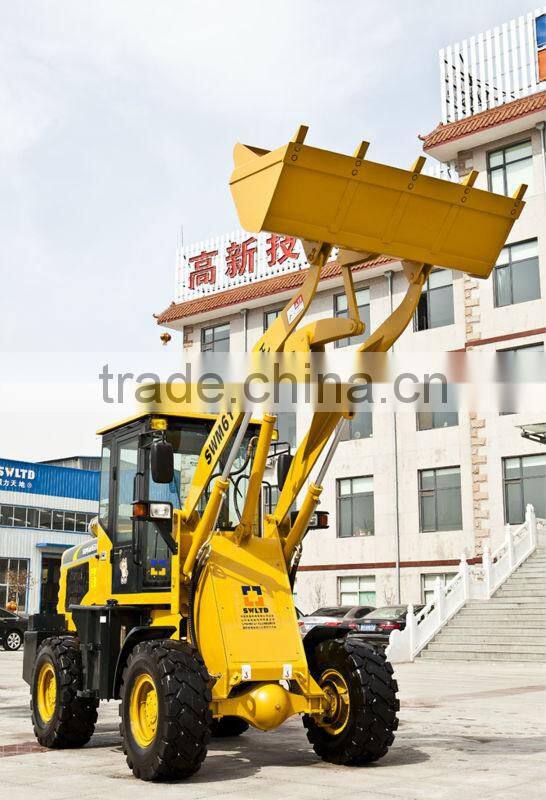

wheelloader mini SWM618 with ceManipulation of deft and agile
Safe and reliable
Hydraulic machanical transmission
Features
1. The loader uses a hydro-mechanical transmission which can make full use of engine power and can have automatic variable transmission according to the external resistance. It avoids power failure of the engine due to the suddenly increased external load. The wheel loader can absorb and eliminate the vibration and impact of external load on engine. It protects the drive system and engine, increases the service life, facilitates the operation and achieves higher economical and production efficiency.
2. The wheel loader uses the central articulated frame and load sensing hydraulic steering gear. The machine can achieveshort turning radius and superposition of the front and rear tracks upon turning (this will ensure safe driving). The wheel loader has the advantages of easy operation on narrow site, flexible operation, safety, convenient maintenance and so on.
3. The wheel loader uses four-wheel drive, low-pressure wide base off-road tires and an oscillating rear axle, so it has sound off-road performance, good trafficability and larger traction.
4. The wheel loader is equipped with a single-pipe type hydraulic four-wheel brake.
5. The wheel loader has a fully enclosed cab and the seats have the functions of vibration reduction and easy adjustment. The machine offers the driver a comfortable drive and wide view.
Technical Specifications
Main Technical Parameter of SWM618 | |
| Item | Parameter |
| Rated load (kg) | 1200 |
| Bucket capacity (m3) | 0.7 |
| Wheel tread (mm) | 1480 |
| Wheel base (mm) | 2070 |
| Min turning radius (mm) |
left4532 right4332 |
| Min ground clearance (mm) | 270 |
| Dumping height (mm) |
Tooth3180 Toothless3250 |
| Corresponding dumping reach (mm) |
Tooth910 Toothless810 |
| Lifting time (s) | 4.75 |
| Hydraulic cycle time (s) | 7.57 |
| Maximum excavating force (KN) |
Bucket40.9 Swiming arm22.5 |
| Drive mode | Four are Drive |
| Machine weight (kg) | 3916 |
| Overall dimensions (mm) (Length*width*height) | 5280*1870*2730 |
| Engine model | ZH4100Y4 |
| Rated power of engine (kw) | 44 |
| Rated speed of engine (rpm) | 2200 |
We are the professional and big manufacturer of the loaders and forklifts for over 17 years .
Our main products are as follows:
Wheel Loaders
800kg wheel loader ZL08A ZL08B
1000kg wheel loader ZL10A ZL10B ZL10F SWM610
1200kg wheel loader ZL12F (best sell model) SWM615 SWM618
1600kg wheel loader ZL16F
2000kg wheel loader SWM620
3500kg wheel loader SWM635
5000kg wheel loader SWM952
Rough Terrain Forklift --Hot Sale
2800kg CPCY28
3500kg CPCY35
5000kg CPCY50
10000kg CPCY100
Diesel Forklift
3000kg and 3500kg CPC30 CPC35
Electric Forklift
1500kg CPD15
It is our great pleasure to receive your specific inquiries .
Please send us inquiries or send email to directly .
Our best wishes to you and your esteemed company . :) O(∩_∩)O
