Specifications
SWM615 loader machine1 CE Certification
2 Pilot control,Joystick valve
3 Rated load :fro1.2 ton
4 Quick attach,pallet for
Features

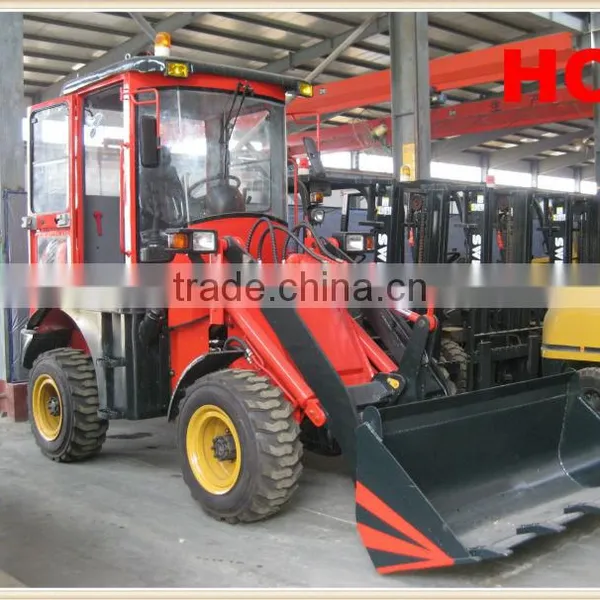

1. The SWM615 wheel loader uses a high-reliability torque converter, gearbox, drive axle and brake system.
2. Using a high-reliability engine, the wheel loader can save more oil, lower noise and emission.
3. Using the hard structural parts and powerful working device, the wheel loader can strengthen the excavating force.
4. The wheel loader is equipped with an advanced hydraulic system and has a full rearview mirror.
5. It has the advantages of large space, low noise, easy operation and so on.
6. Adjusting the swinging angle of the high and rear axle, the wheel loader can smooth its operation in narrow spaces or on rugged sites.
7. The wheel loader has the functions of dustproof, sound insulation, vibration reduction, UV protection and heat insulation.
8. It is equipped with a high-quality seat, made of professional manufacturing technology and characterized by damping suspension.
9. The wheel loader features rigid structure.
-----------------------------------------------------------------------------------------------------------------------------------------
Technical Specifications
Main Technical Parameter of SWM615 | |
| Item | Parameter |
| Rated load (kg) | 1200 |
| Bucket capacity (m3) | 0.7 |
| Wheel tread (mm) | 1480 |
| Wheel base (mm) | 2005 |
| Min turning radius (mm) | 4500 |
| Min ground clearance (mm) | 260 |
| Dumping height (mm) | 2600 |
| Corresponding dumping reach (mm) | 1070 |
| Lifting time (s) | 4 |
| Hydraulic cycle time (s) | 8.5 |
| Maximum excavating force (KN) | 36 |
| Drive mode | Four are Drive |
| Machine weight (kg) | 3600 |
| Overall dimensions (mm) (Length*width*height) | 4800*1770*2720 |
| Engine model | A498BT1 |
| Rated power of engine (kw) | 36.8 |
| Rated speed of engine (rpm) | 2400 |
-----------------------------------------------------------------------------------------------------------------------------------------
CERTIFICATION
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Our company is the only Importing and Exporting Company invested by our Head Company, Shandong Weili World Machinery Co., Ltd. The factory is located in Qingzhou City, Shandong Province, and it is one big and professional Wheel Loader and Forklift manufacturer.
We have many years experience in exporting the machinery products, with the main products are as construction machinery, mining machinery, agricultural machinery and spare parts for all machineries. And the specific products are Wheel Loader, Forklift, Roller, Excavator, Motor Grader, Dredger, Gold Mining Machines, Environmental Protection Machines, etc.
Borderless Friendship, Endless Cooperation. The company expects friendship, cooperation and development.
