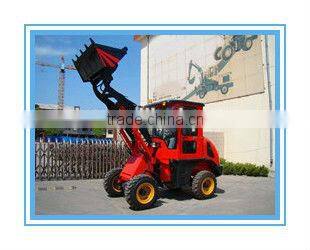

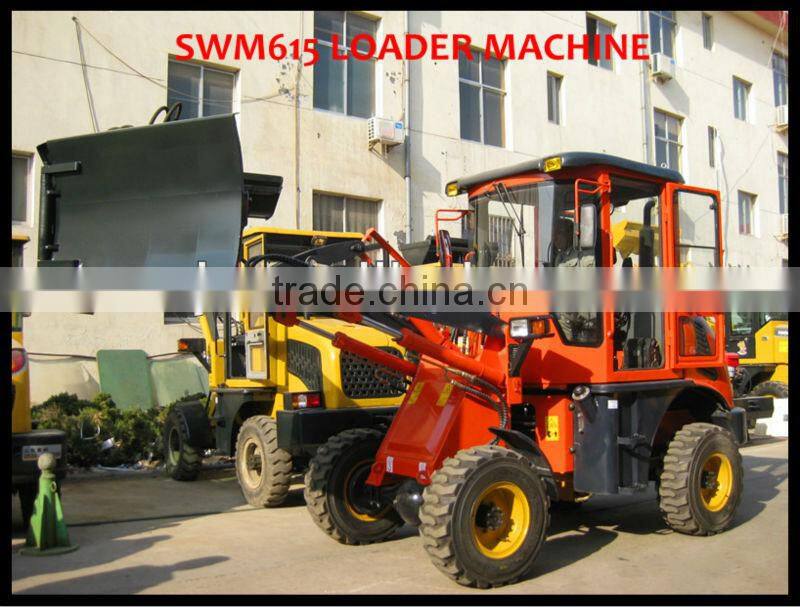

Steer Loader SWM615 With ce for Sale

Name: Steer Loader SWM615 With ce for Sale
Brand: SWLTD
SKU: 140829106
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

SWLTD

Model Number:

SWM615

Shandong Weili World Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name SWLTD

Model Number SWM615

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 4800*1770*2720

Rated Load 1200kg

Certification CE BV ISO

Warranty 1 year or 1000 working hours

After-sales Service Provided Engineers available to service machinery overseas

Specifications

steer loader SWM615
CE or EPA
Pilot control
Rated load :from 1 ton to 5 ton
quick attach

Features

1. The SWM615 wheel loader uses a high-reliability torque converter, gearbox, drive axle and brake system.

2. Using a high-reliability engine, the wheel loader can save more oil, lower noise and emission.

3. Using the hard structural parts and powerful working device, the wheel loader can strengthen the excavating force.

4. The wheel loader is equipped with an advanced hydraulic system and has a full rearview mirror.

5. It has the advantages of large space, low noise, easy operation and so on.

6. Adjusting the swinging angle of the high and rear axle, the campact loader can smooth its operation in narrow spaces or on rugged sites.

7. The wheel loader has the functions of dustproof, sound insulation, vibration reduction, UV protection and heat insulation.

8. It is equipped with a high-quality seat, made of professional manufacturing technology and characterized by damping suspension.

9. The wheel loader features rigid structure.

Technical Specifications

Main Technical Parameter of SWM615
Item	Parameter
Rated load (kg)	1200
Bucket capacity (m³)	0.7
Wheel tread (mm)	1480
Wheel base (mm)	2005
Min turning radius (mm)	4500
Min ground clearance (mm)	260
Dumping height (mm)	2600
Corresponding dumping reach (mm)	1070
Lifting time (s)	4
Hydraulic cycle time (s)	8.5
Maximum excavating force (KN)	36
Drive mode	Four are Drive
Machine weight (kg)	3600
*Overall dimensions (mm) (Lengthwidthheight)*	*480017702720*
Engine model	A498BT1
Rated power of engine (kw)	36.8
Rated speed of engine (rpm)	2400
