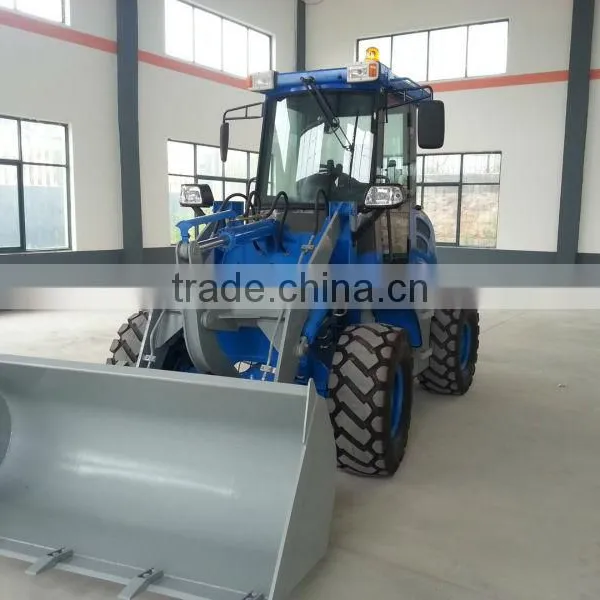

DG Wheel Loader 1.5 Tons CE Wheel Loader

Name: DG Wheel Loader 1.5 Tons CE Wheel Loader
Brand: SWLTD
SKU: 140829094
Availability: InStock

US$ 9,000 - 22,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Brand Name:

SWLTD

Model Number:

ZL 15

Shandong Weili World Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name SWLTD

Model Number ZL 15

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 5100*1900*2650

Rated Load 1500KG

Certification CE, ISO:9001

Warranty 1 year or 1200 working hours

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Japan engine
2. ZF transmission
3. Car quality paint
4. CE certificate
5. Multiple configuration choose

Overall Dimension
1	Length(with bucket on ground)	5100(mm)
2.	Width(to outside of wheels)	1900(mm)
3	Bucket width	1900(mm)
4	Height(To the top of the cab)	2650(mm)
5	Wheel base	2060(mm)
6	Tread	1400(mm)
7	Min. ground clearance	210(mm)
Main Technical Specification
1	Rated load	1500(Kg)
2	Operating weight	4500KG
3	Rated bucket capacity	0.80(CBM)
4	Bucket type	Heavy-duty bolt teeth
5	Max. breakout force	36kN
6	Max. dump clearance	2850(mm)
7	Min. turning radius	4500mm
8	Driving system	Hydraulic converter
9	Traveling speed(Km/h)	2 forward and 2 reverse
	(1) 1st gear forward	5.75
	(2) 2nd gear forward	23.86
	(3) 1st gear reverse 5.85	5.85
	(3) 2nd gear reverse	24
Diesel engine
1	Model	EURO III
2	Type	In-line arrangement. Water cooling
3	Rated output	37 (kW)
4	Inter-bore of cylinder/stroke	95 (mm)
5	Rated speed	2300(r/min)
6	Max. Torque	275(N.M)
7	Starting type	Electric
8	Min. fuel consumption	230(g/Kw.h)
9	Net weight	240(kg)
Transmission System
I. Torque Converter
1	Model	YJ240
2	Type	Fixed-spindle power shift
3	Cooling type	Pressure oil circulating
II. Transmission case
1	Model	MAP
2	Type	Power shift, spur gear constantly in mesh
3	Gear shift position	2 Forward and 2 reverse gears
III. Axle and Tire
1	Type of main reducer	spiral bevel gear, single stage
2	Size of tire	20.5/70-16
Brake system
1	Service brake	4 wheel hydraulic brake
2	Parking brake	Hand operated
Steering system
1	Type	Middle articulated frame with hydraulic power steering
