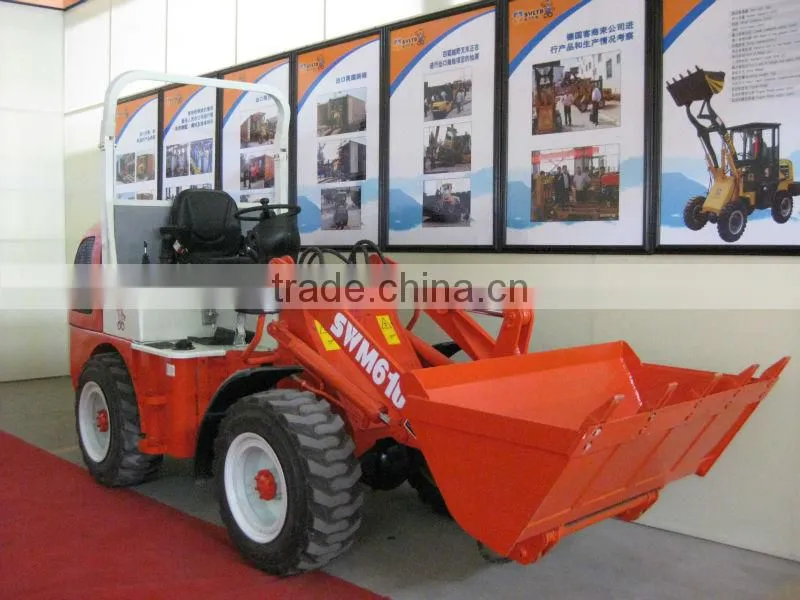

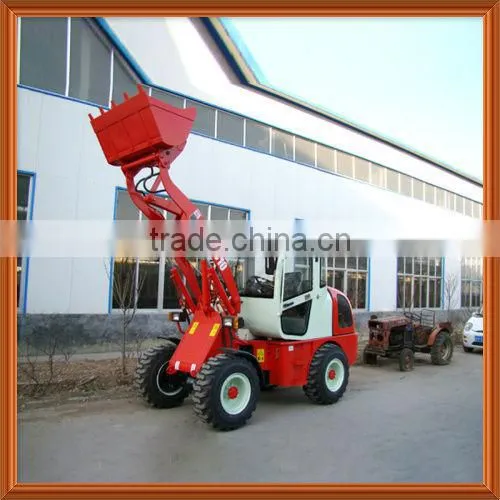

Help CenterSWM610 1000kg Wheel Loaders for Sale With CE
Related Products
Specifications
SWM610 mini loaders1 CE Certification
2 18 years experience
3. OEM service
4. Rated load :1000 kg
Features
1. The SWM610 wheel loader uses the Japan Yanma engine that has the advantages of small engine sound, high power, and low oilconsumption.
2. Equipped with the electronically controlled traveling and manipulation system, the wheel loader can greatly reduce the labor intensity.
3. The wheel loader is equipped with an advanced hydraulic system.
4. It has a reliable torque converter, gearbox and drive axle.
5. The wheel loader has a highly reliable brake system.
6.Using the hard structural parts and powerful working device, the wheel loader can strengthen the excavating force.
7. The wheel loader features unique machine design, perfect color matching and high-comfort.
-----------------------------------------------------------------------------------------------------------------------------------------
Technical Specifications
Main Technical Parameter of SWM610 | ||
Item |
Parameter |
Note |
Rated load (kg) |
1000 |
|
Bucket capacity (m3) |
0.5 |
|
Wheel tread (mm) |
1170 |
|
Wheel base (mm) |
1790 |
|
Min turning radius (mm) |
4450 |
|
Min ground clearance (mm) |
240 |
|
Dumping height (mm) |
2300 |
|
Corresponding dumping reach (mm) |
1080 |
|
Lifting time (s) |
4 |
|
Hydraulic cycle time (s) |
9 |
|
Maximum excavating force (KN) |
Bucket 24.6 Swing arm 13.45 |
|
Drive mode |
Four-wheel drive |
|
Machine weight (kg) |
2500 |
|
Overall dimensions (mm) (Length*width*height) |
4530*1500*2500 |
|
Engine model |
4TNV88-BSBKC |
|
Rated power of engine (kw) |
25.2 |
|
Rated speed of engine (rpm) |
2200 |
|
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Our company is the only Importing and Exporting Company invested by our Head Company, Shandong Weili World Machinery Co., Ltd. The factory is located in Qingzhou City, Shandong Province, and it is one big and professional Wheel Loader and Forklift manufacturer.
We have many years experience in exporting the machinery products, with the main products are as construction machinery, mining machinery, agricultural machinery and spare parts for all machineries. And the specific products are Wheel Loader, Forklift, Roller, Excavator, Motor Grader, Dredger, Gold Mining Machines, Environmental Protection Machines, etc.
Borderless Friendship, Endless Cooperation. The company expects friendship, cooperation and development.
