Specifications
-Hot sale mini loader-Manipulation of deft and agile
-Joystick valve pilot control
-Hydraulic machanical transmission
SHANDONG WEILI WORLD MACHINERY CO.,LTD
Features
1. The SWM610 wheel loader uses the Japan Yanma engine that has the advantages of small engine sound, high power, and low oilconsumption.
2. Equipped with the electronically controlled traveling and manipulation system, the wheel loader can greatly reduce the labor intensity.
3. The wheel loader is equipped with an advanced hydraulic system.
4. It has a reliable torque converter, gearbox and drive axle.
5. The wheel loader has a highly reliable brake system.
6.Using the hard structural parts and powerful working device, the wheel loader can strengthen the excavating force.
7. The wheel loader features unique machine design, perfect color matching and high-comfort.
Technical Specifications
Main Technical Parameter of SWM610 | |
| Item | Parameter |
| Rated load (kg) | 1000 |
| Bucket capacity (m3) | 0.5 |
| Wheel tread (mm) | 1170 |
| Wheel base (mm) | 1790 |
| Min turning radius (mm) | 4450 |
| Min ground clearance (mm) | 240 |
| Dumping height (mm) | 2300 |
| Corresponding dumping reach (mm) | 1080 |
| Lifting time (s) | 4 |
| Hydraulic cycle time (s) | 9 |
| Maximum excavating force (KN) | Bucket24.6 Swiming arm13.45 |
| Drive mode | Four are Drive |
| Machine weight (kg) | 2500 |
| Overall dimensions (mm) (Length*width*height) | 4530*1500*2500 |

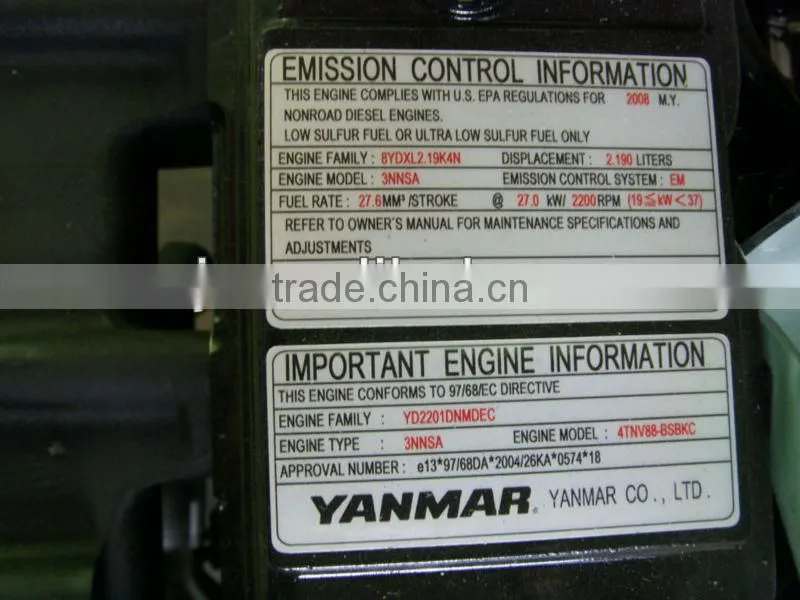

| Engine model | 4TNV88-BSBKC |
| Rated power of engine (kw) | 25.2 |
| Rated speed of engine (rpm) | 2200 |
CE ,ISO 9001-2008
