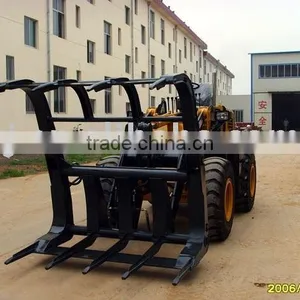

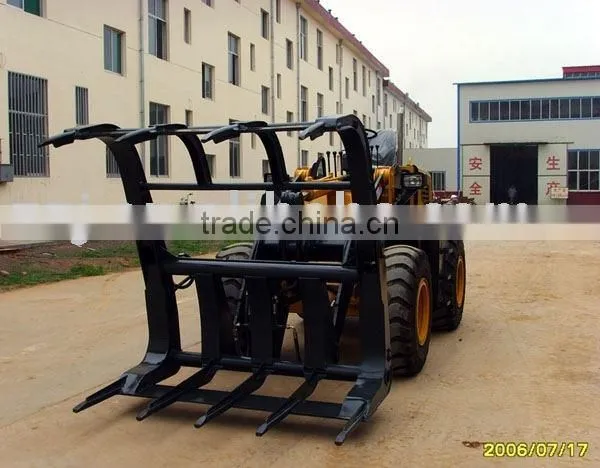

mini wheel loader with CE markZL16F

Specifications

mini wheel loader
1) CEorEPA;
2Pilot control
2) Engine: Xinchai, Changchai; Weichai
3) Rated loading: from 1Tto5T ISO

mini  wheel loader

1.Using direct injection diesel engine as power, with easy startup and low oil consumption
2. Using special drive axle, with strong ability to overcome obstacle
3. Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4. This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
5. Widely applying to the construcction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.



Specifications of ZL16F Wheel Loader

1.0     Engine details:

(1) Model: Weichai ZH4100K14-3

(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine

(3) Rated Power: 45KW (61.2 H.P.)

(4) Rated Speed: 2400 r/min (rpm)

(5) Fuel Consumption ratio in standard working condition: 251.6g/kw.h

2.0 Transmission System

(1) Type: Fixed-spindle Power shift

(2) Clutch control oil pressure: 1373~1569MPa

(3) Rated input speed: 2500 (rpm)

3.0 Bucket

(1) Bucket Capacity: 0.9 m3

(2) Bucket width: 1910mm

(3) Bucket type: Heavy-duty bolt on teeth

(4) Max. Breakout Force: a. tipper hopper cylinder: 4887, Lifting Cylinder: 2856

(5) Rated Load: 1800kg

(6) Operating Weight: 4800kg

4.0 Overall Dimensions:

(1) Overall Length (Bucket on ground position): 5088mm

(2) Overall Height

(a) Ground to Cabin Top: 2880mm

(b) Ground to exhaust pipe: It is below from the top of cab

(c) Dumping Height: 2405mm

(3) Overall Width: 1905mm

5.0 Operating Specifications

(1) Steering System: Articulated Frame with hydraulic power steering

(2) Min Turning Radius: 4640mm

(3) Driving System: Hydraulic converter

6.0 Brake System

(1) Service Brake: Hydraulic disc brake on four wheels

(2) Parking Brake: Hand operated

7.0 Tyre

(1) Model:11.00-16 (2) Width: 24cm (3) Diameter: 87cm

8.0 Wheelbase: 2150mm

9.0 Track: 1440mm
