ZL10A Wheel Loader With CE

Technical Specification of Model ZL10A of Wheel Loader (4WD, 3 Cylinder Diesel Engine)

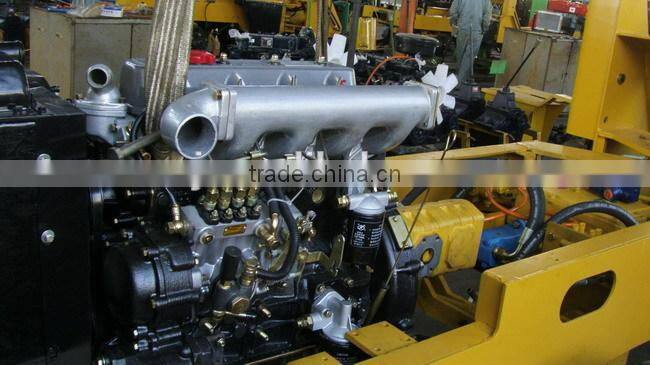

1.0 Engine Details
(1) Model: Changcai ZN485Q
(2) Engine type: In-line arrangement, water cooled, 3-cycle diesel Engine
(3) Rated Power: 20KW ( 27 H. P. )
(4) Rated Speed: 2200 r/min(rpm)
(5) Fuel Consumption ratio in standard working condition: 269g/kw. H

2.0 Steering System
(1) Cycloid full hydraulic steering system: BZZ-125
(2) System Pressure: 10MPa
(3) Steering Cylinder: Φ76x Φ63x180
(4) Speed
--i Forward shift (forward I) 7.19
--ii Forward shift (forward II) 3.35
--iii Reverse shift (Reverse I) 7.19
--iiii Reverse shift (Reverse II) 3.35

3.0 BUCKET
(1) Bucket Capacity: 0.5 m3
(2) Bucket width: 1400mm
(3) Bucket type: Heavy duty bolt on teeth
(4) Max. Breakout Force: 32KN
(5) Rated Load: 1000kg
(6) Operating Weight: 2880kg

4.0 OVERALL DIMENSION
(1) Overall Length ( Bucket on ground position ): 4900mm
(2) Overall Height
(a) Ground to Cab Top: 1685mm
(b) Ground to exhaust pipe: It is below from the top of cabin
(c) Dumping Height: 2545mm
(3) Overall Width: 2520mm

5.0 OPERATING SPECIFICATIONS
(1) Drive Means: Four-wheel drive
(2) Min Turning Radius: 4200mm
(3) Driving System: Mechanical
(4) Dumping Height: 2545mm
(5) Min Base to the ground: 240mm
(6) Time of raise: 3.05sec.
(7) Hydraulic cycle time: 9sec.

6.0 Brake System
(1) Service Brake: Four Wheel Hydraulic spread-shoed brake
(2) Parking Brake: Hand operated

7.0 Wheelbase: 2040mm

8.0 Track: 1320mm

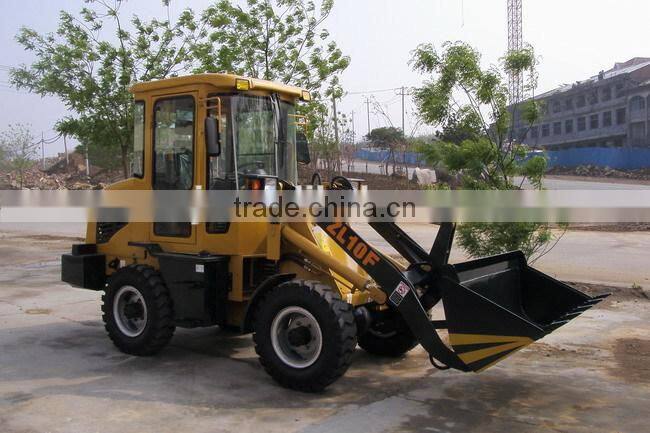

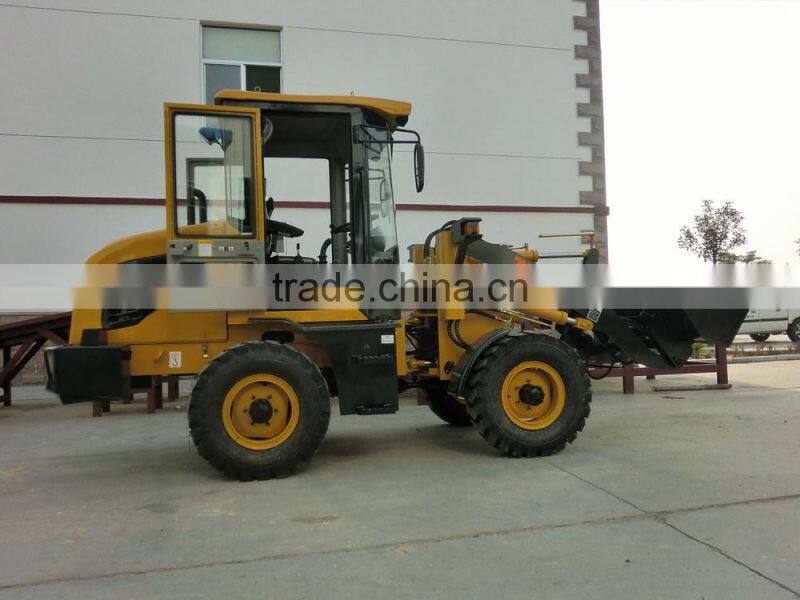

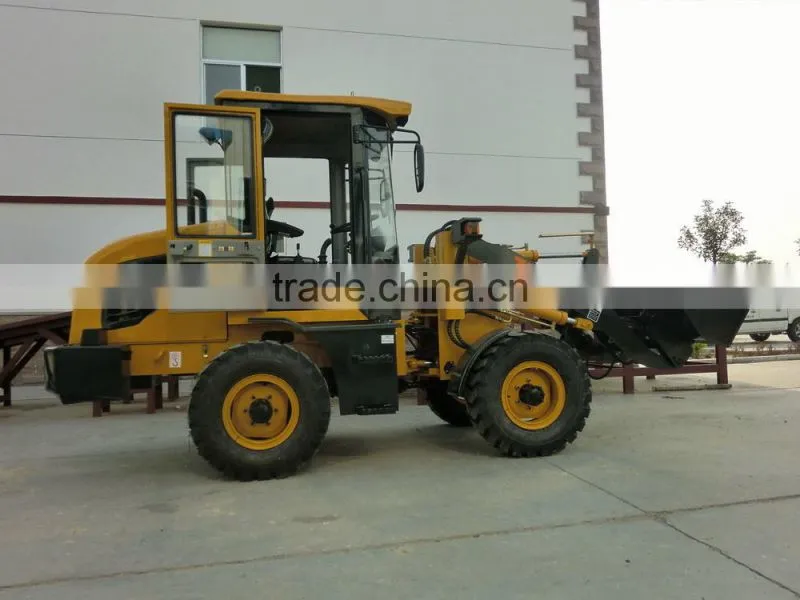

ZL10F WITH CABIN WITH CE

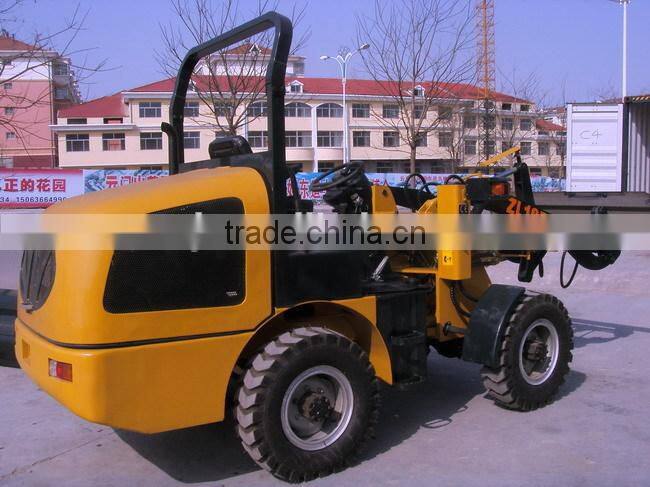

ZL10F WITHOUT CABIN WITH CE
