CPCY50 All Terrain Forklift SWLTD

Shandong Weili World Machinery Co., Ltd.
CPCY50 All Terrain Forklift SWLTD thumbnail-1
CPCY50 All Terrain Forklift SWLTD photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
SWLTD
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name SWLTD
Model Number CPCY50
Type Powered Pallet Truck
Power Souce Diesel Engine
Rated Loading Capacity 5000 Kg
Max. Lifting Height 4000 mm
Min. Lifting Height 210 mm
Fork Length 1300 mm
Fork Width 150 mm
Overall Dimensions 5730*1905*1880 mm
Certification CE
After-sales Service Provided Overseas service center available

Specifications

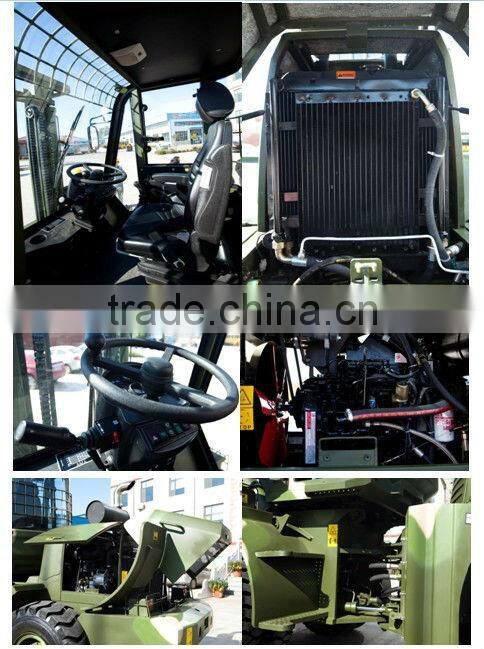

1.Luxurious cabin
2.Air condition
3.3 stage 4.5m mast
4.Optional accessory

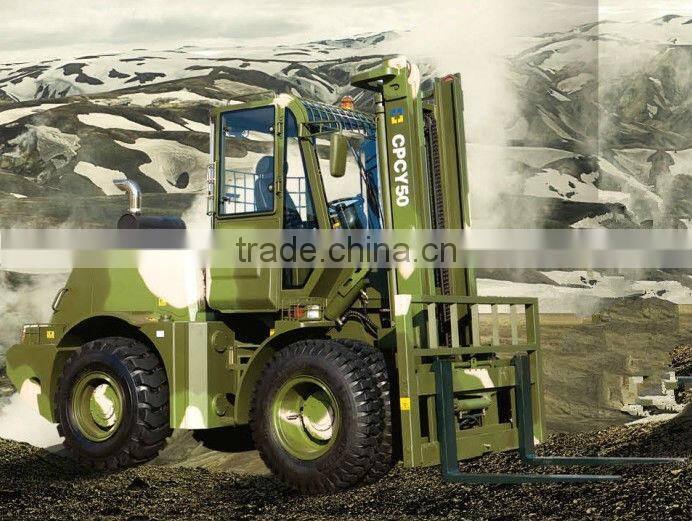

CPCY50 all terrain forklift SWLTD

                   Features

CPCY50 all terrain forklift SWLTD

        CPCY50 all terrain forklift SWLTD

                 Parameter



Overview

Model of driving power

Diesel

Rated load

5000kg

Load center distance

500mm

Lifting height

3000mm / 4500mm





Performance



Speed

Running speed (no load)

22Km/h

Lifting speed(full load)

300 mm/s

Max. grade ability

20°

Dead weight

9500kg





Tires

Tires

Front wheel

11.00-20

Rear wheel

16/70-20

Tread

Front wheel

1575mm

Rear wheel

1545mm

Wheelbase

2185mm

Min ground clearance

285mm

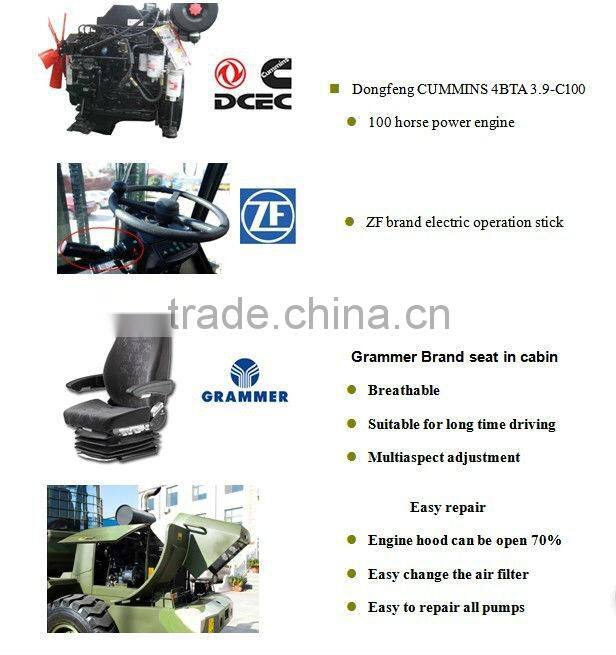

Driving power and transmission

Battery

Voltage

24V







Engine

Model

CUMMINS 4BTA3.9-C100

Place of Origin

Xiangyang Hubei

Output power

74 KW

Rated torque

410

Number of cylinders

4

Cylinder size X trip

n.a

Displacement

n.a

Fuel tank capacity

40L

Transmission

Gear(front and rear)

2/2

Work pressure

16 Mpa







                                                                                        Certification



-------------------------------------------------------------------------------------------------------------------------------------------------------------------------




                                                                 Contact






                                                             PROFILE

Qingdao Welvo Import & Export Co., Ltd is located in the most vigorous city in China, QINGDAO city, which itself is a Port.

Our company is the only Importing and Exporting Company invested by our Head Company, Shandong Weili World Machinery Co., Ltd. The factory is located in Qingzhou City, Shandong Province, and it is one big and professional Wheel Loader and Forklift manufacturer.

We have many years experience in exporting the machinery products, with the main products are as construction machinery, mining machinery, agricultural machinery and spare parts for all machineries. And the specific products are Wheel Loader, Forklift, Roller, Excavator, Motor Grader, Dredger, Gold Mining Machines, Environmental Protection Machines, etc.
