Specifications
ROPSStrengthen front axle
Electronic control gear box(With ZF Converter)
Cummins Turbo Engine

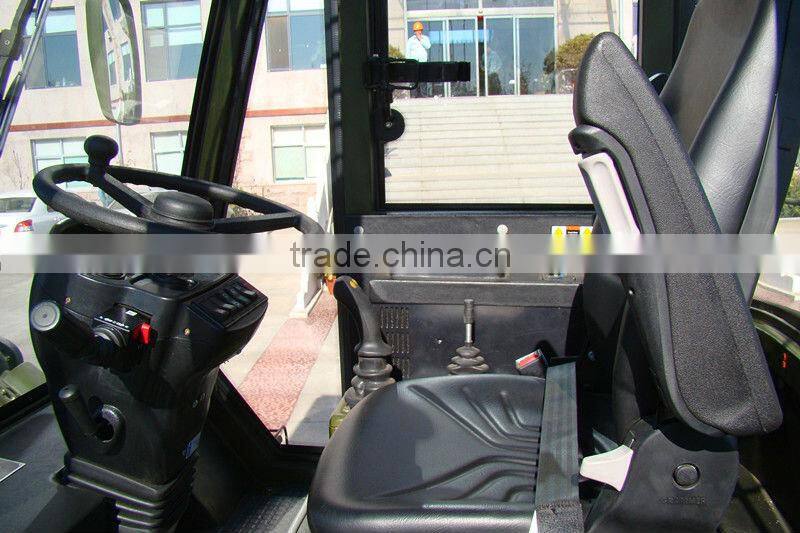

Adjustable dashboard
No |
Item | Unit | Standard model | Optional model | |
1 | rated load | Kg | 5000 | 5000 | |
2 | Length | No fork | mm | 4420 | 4420 |
with fork | mm | 5700 | 5700 | ||
3 | width | mm | 2185 | 2185 | |
4 | height | height of the mast | mm | 3100 | 3100 |
Height of the cab | mm | 3125 | 3125 | ||
full height when max lifting | mm | 4305 | 5805 | ||
5 | Wheelbase | mm | 2185 | 2185 | |
6 | Front overhang distance | mm | 880 | 880 | |
7 | front wheel tread | mm | 1575 | 1575 | |
8 | Rear wheel tread | mm | 1545 | 1545 | |
9 | ground clearance | mm | 285 | 285 | |
10 | Max lifting height | mm | 3000 | 4500 | |
11 | Free lifting height | mm | ----- | ----- | |
12 | Fully free lifting height | mm | ----- | ----- | |
13 |
forward / rear tilting angle of mast | (.) | 6/12 | 6/12 | |
14 | standard Dead weight (no-load) | kg | 9500 | ||
15 | full-load Max lifting speed | mm/s | 300 | 300 | |
16 | Min turning radius | mm | 5920 | 5920 | |
17 | Max speed | Km/h | 20.0 | 20.0 | |
18 | Max climbing degree (full load) | % | |||
19 | Max Drawbar pull(full load ) | kN | 30.0 | 30.0 | |
20 | Load center distance | mm | 500 | 500 | |
21 | engine model | ------ | Cummins 4BTA3.9-C100 | Cummins 4BTA3.9-C100 | |
Features
Standard configuration
Roll over protection structure
Strengthen front axle
Electronic control gear box(With ZF Converter)

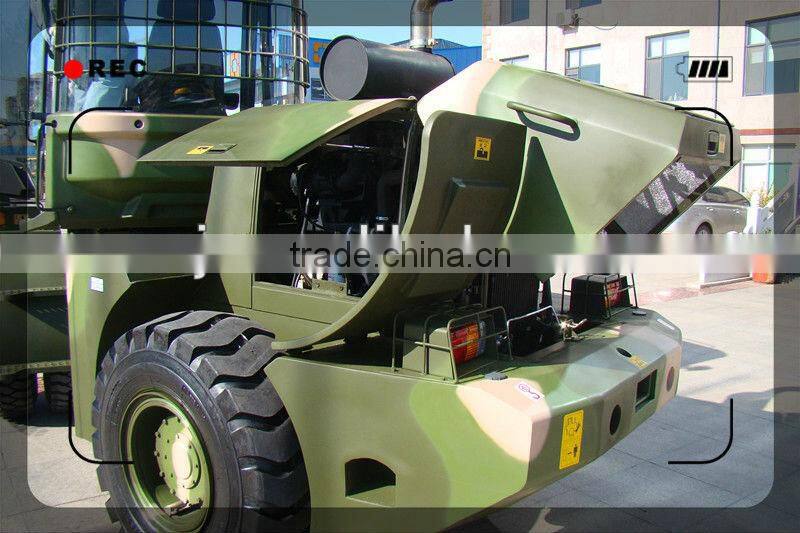

Cummins Turbo Engine

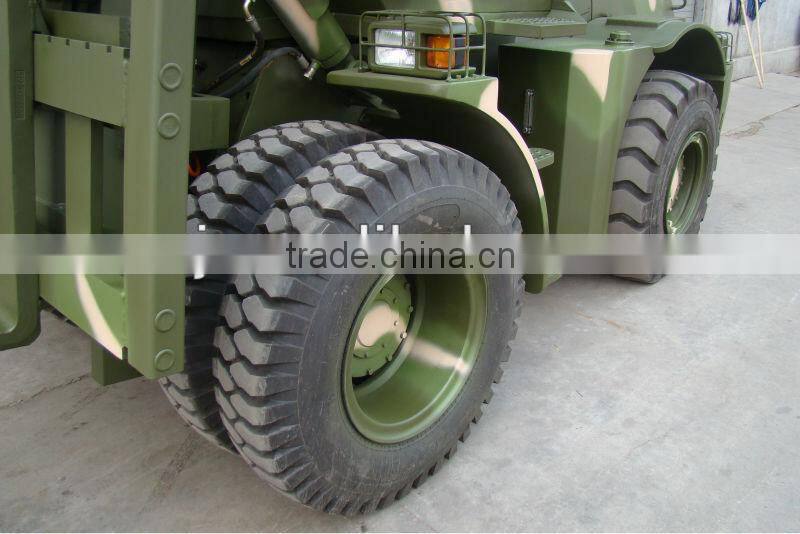

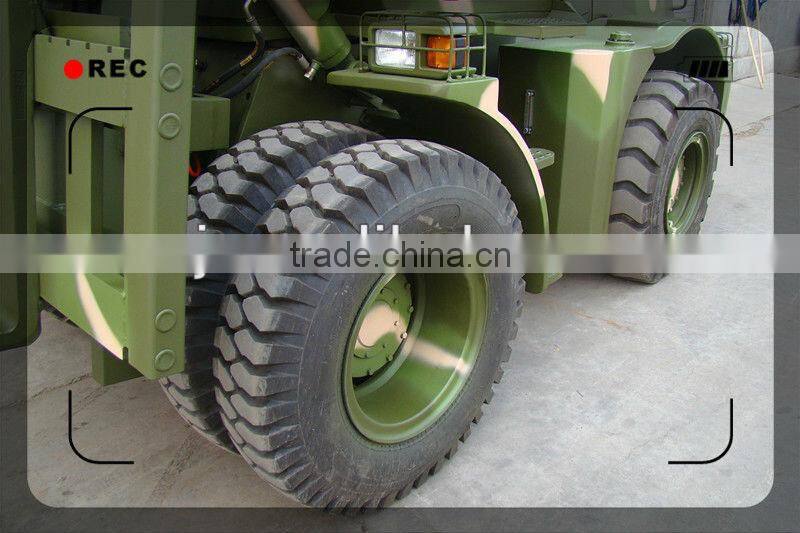

Front axle with double tire
Adjustable dashboard
ZF gear positioner ,double tyres
Excellent workmanship
Glamour luxurious seat
OPTIONAL DEVICES
Luxurious cabin
Air-conditioning
3 Stage4.5M Mast
Fork Positioner
Side shifter
The forklift is more easy to operate ,disassemble and maintenance

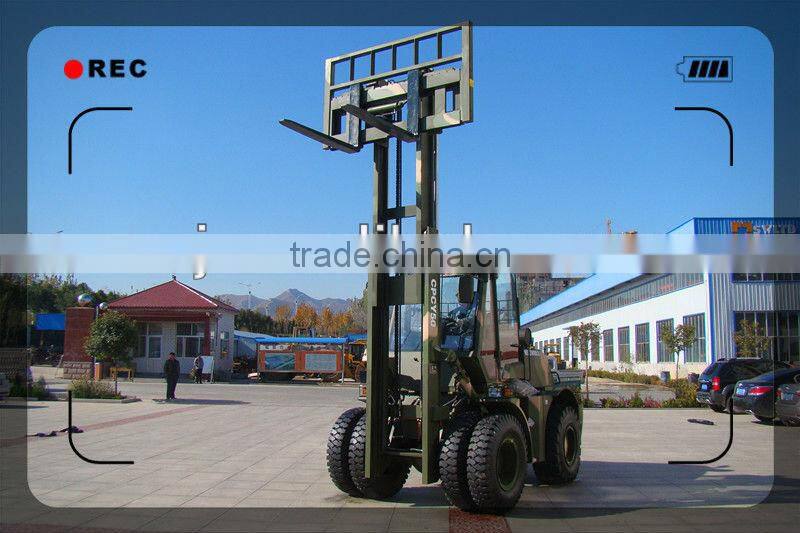

Pictures
