HSM Lifetime Warranty Best Price yuezhen wood crusher/hammer mill
- 100 Set / Sets per Month
- China Main Port
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | HSM Wood Hammer Crusher |
Model Number: | yuezhen wood crusher/hammer mill | Voltage: | 220-380 | Power(W): | 7.5-82.5 |
Dimension(L*W*H): | According to the type | Weight: | According to the type | Certification: | CE ISO SGS BV |
Warranty: | 2 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Applications of yuezhen wood crusher/hammer mill:

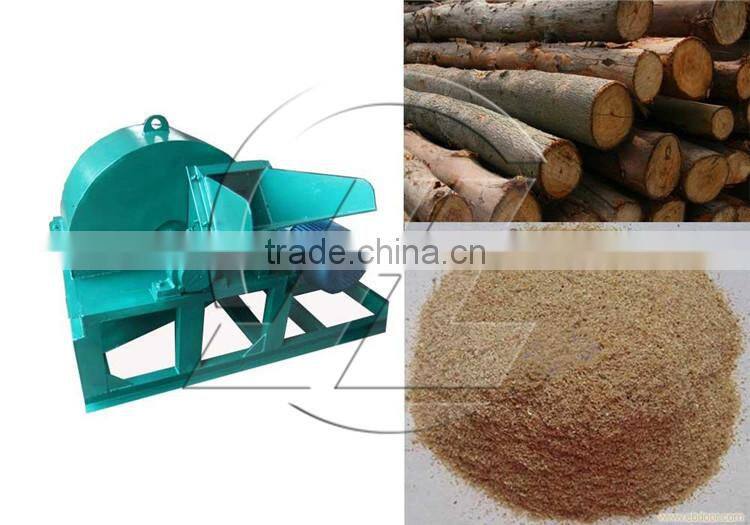

1. This yuezhen wood crusher/hammer mill can process small wood material such as pine, poplar wood, weed tree, aspen weed into small pieces which is not extend 5mm.

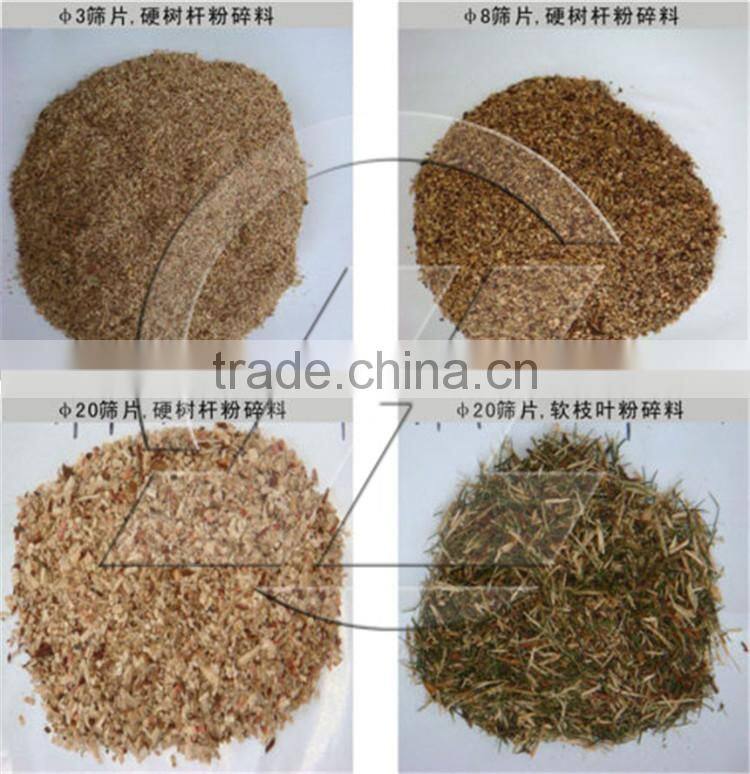

2. yuezhen wood crusher/hammer mill is adopt vee belt transmit, with knife cutting and hammer together to crush material,,the granularity size can be adjusted by changing the sieve.
3. Compact structure, cover small area, low consumption.
Working Principle of yuezhen wood crusher/hammer mill:

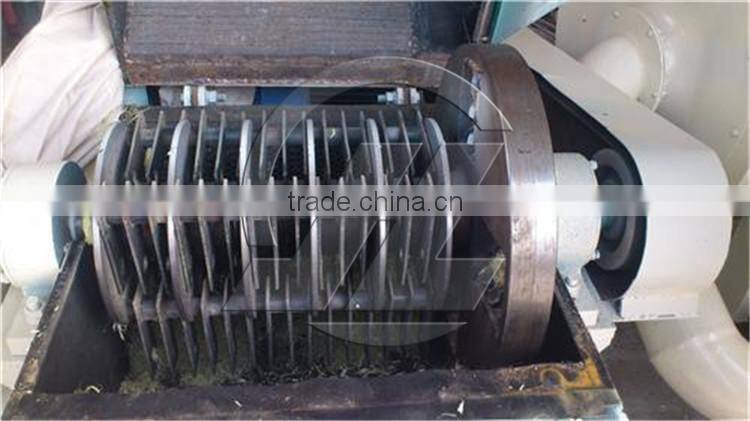

yuezhen wood crusher/hammer mill adopts blade cutting and high speed flow, collision and double crush functions can be completed in one machine , can separate particulate at the same time.
During cutting, rotor produces high-speed airflow, rotating along with the blade cutting direction, materials speed up in the airflow, repeated shocks, make materials double crushed, accelerated material crushing rate.
Features of yuezhen wood crusher/hammer mill:
1.Trimmed branches, trunk, leaf can be crushed as fertilizer .
2.yuezhen wood crusher/hammer mill can installed on the cart or farm vehicle,
3.Engine can be electromotor, diesel engine, gasoline engine ,both of them are ok for working.
4.Crushing type can be mobile and fixed-line. two-way for choice.
Data Parameter of yuezhen wood crusher/hammer mill:
Model | HSM-400 | HSM-500 | HSM-600 | HSM-700 | HSM-800 | HSM-1000 |
Blade Diameter(mm) | 400 | 500 | 600 | 700 | 800 | 1000 |
Blade Number | 4 | 4 | 4 | 4-6 | 4 | 6-8 |
Blade Length(mm) | 90 | 100 | 150 | 200 | 230 | 260 |
Inlet Diameter(mm) | 160x200 | 180x200 | 200x200 | 200x250 | 250x300 | 300x400 |
Roller Speed(r/min) | 2600 | 2600 | 2600 | 2300 | 2000 | 2000 |
Motor Power(kw) | 7.5-11 | 15 | 18.5-22 | 22-30 | 37-45 | 75+7.5 |
Capacity(kg/h) | 600-900 | 800-1000 | 1200-1500 | 1800-2000 | 2500 | 3000-4000 |

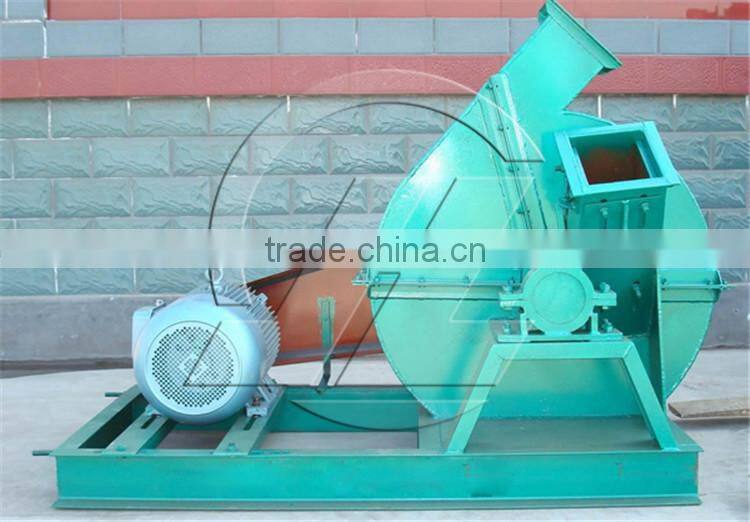

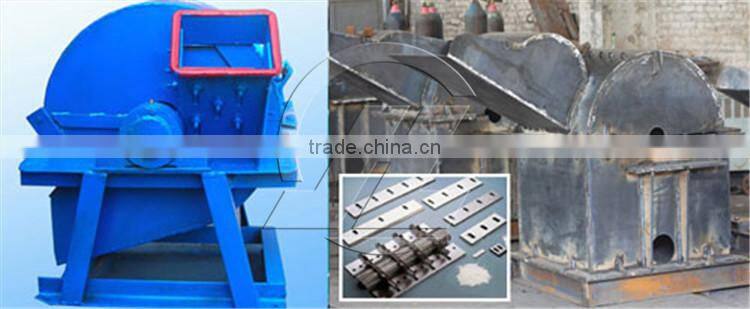

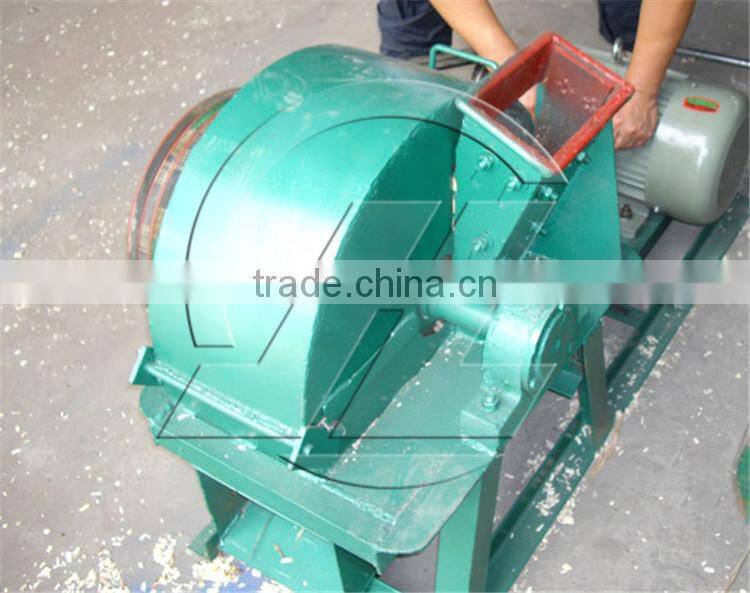

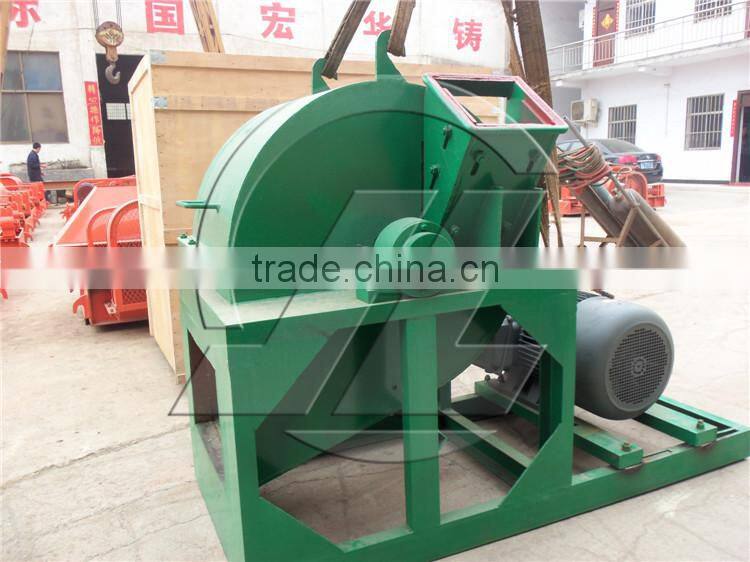

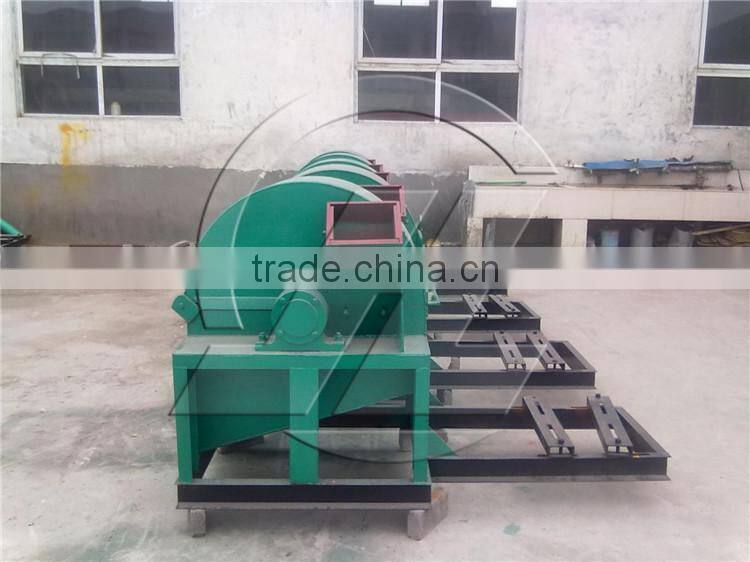

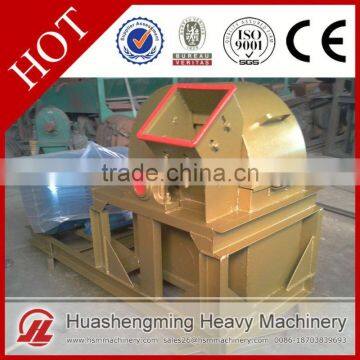

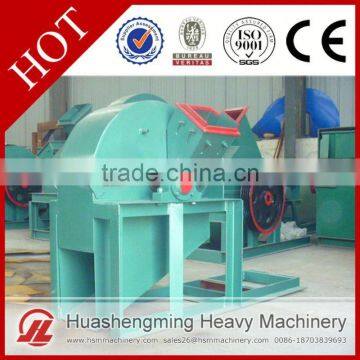

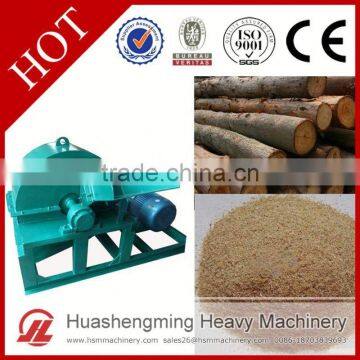

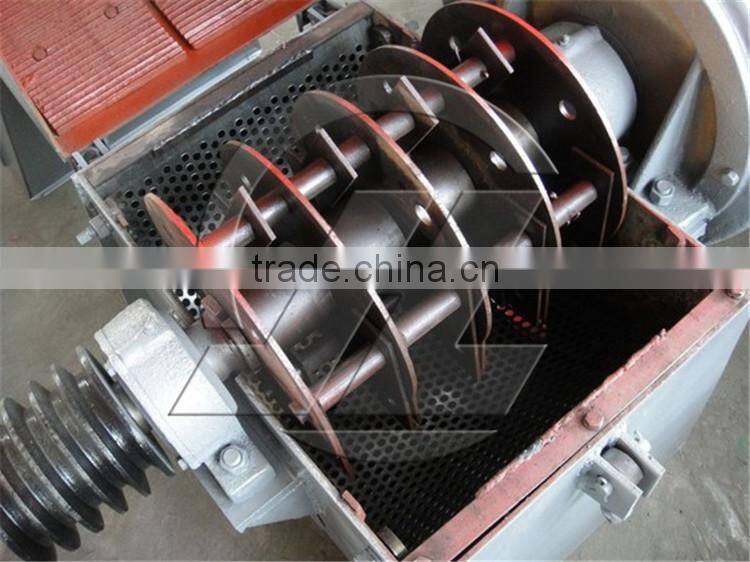

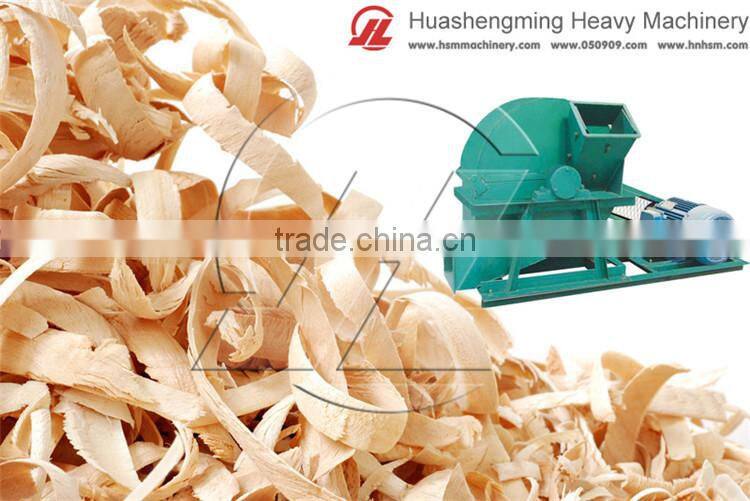

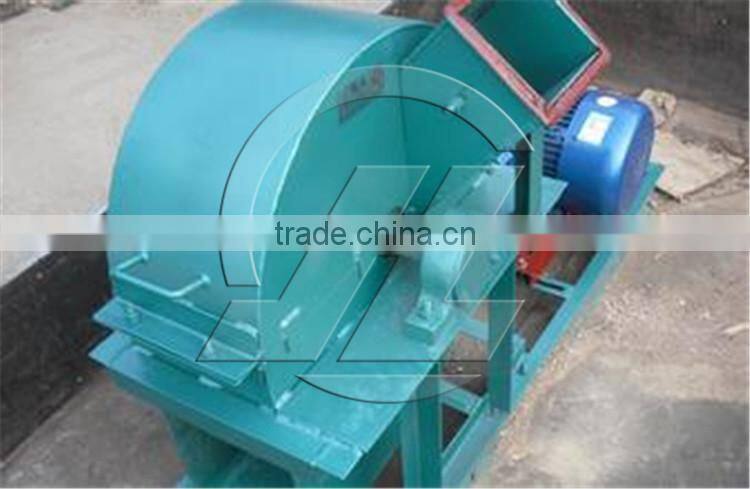

Pictures of yuezhen wood crusher/hammer mill:
1.Design most suitbale flow chart and layout freely according to your request.
2.Provide operating instruction and relative drawing.
3.We can send 1-2 technicians to the site for guiding the installation and commissioning.
4.We offer training service for free.
5.We offer the components with favorable price.
6.Lifetime Warranty.
Packing:
1.Sand blasting, coat with high quality paint.
2.Rustproof and moisture proof before delivery.
3.Load container, Spear Parts in wooden case or iron sheet trunk.
Shipping:
1.By sea or by train. we have 20 years cooperate transport company. bestfreight, fast delivery.
2.Send B/L in 3-5 days after ship leaving.
3.We will remind you before ship arrival.
Gongyi Huashengming Heavy Machinery Factory are mainly produce crushing and mining equipment.
We have 20 years experience.Our products got ISO CE BV SGS certificate. If your are interested in any of our machine, pls feel free to contact us.
We will work with you to create a win-win situation, together to create the world famous brand of china.
