Home > Products > Agriculture Machine > HSM ISO CE 2 Years Warranty Walking Tractor Trailer
HSM ISO CE 2 Years Warranty Walking Tractor Trailer
- 100 Set / Sets per Month
- Main port in China
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Walking Tractor | By wheel: | 2WD |
Usage: | Farm Tractor | Drive Type: | Gear Drive | Power(W): | 8.82KW |
Certificate: | Other, CE, ISO/CE/SGS/BV | Brand Name: | HSM | Model Number: | HSM-101 |
Place of Origin: | Henan, China | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

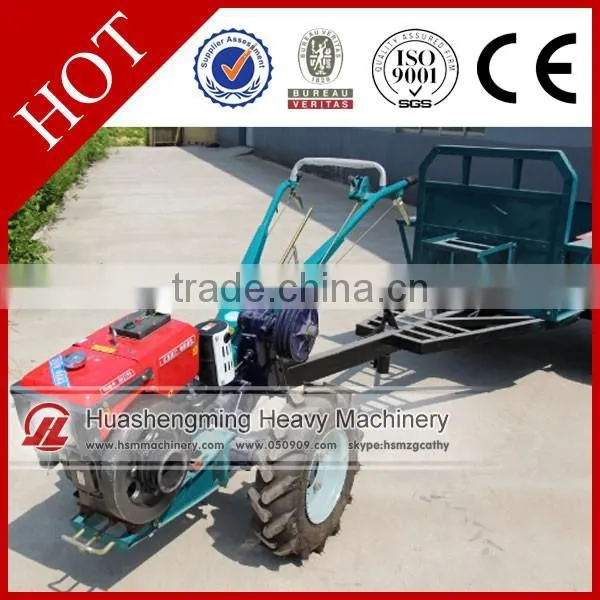

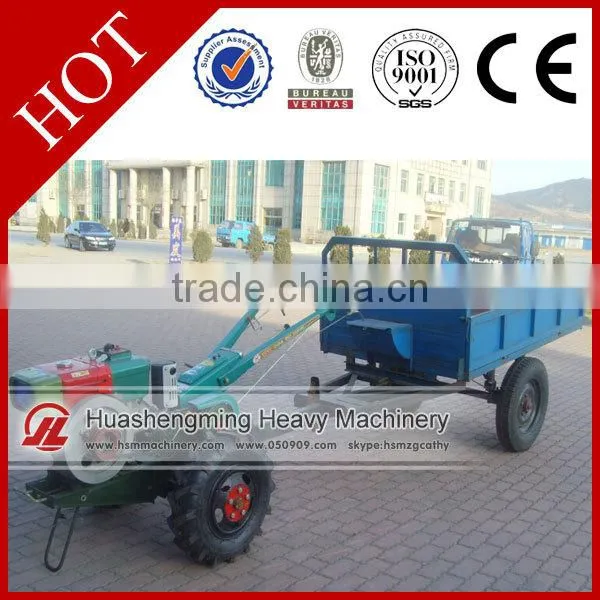

HSM Walking Tractor Trailer
Walking Tractor Trailer Quick Info:
1. Application: It is very suitable for use in paddy field, small dry field, orchards,vegetable gardens of hilly land with small inclination.
2. Implements: 2/3 share plough, rotary tiller, ditching machine, harvester, cave digging machine, trailer and rotary seed drill etc.
3. Engine Power: the walking tractor can be ordered with 8hp, 12hp, 15hp, 18hp, 20hp engine, and can be ordered for eletctric start or manual start.
4. Speed (km/h): Forward: 1.39, 2.47, 4.15, 5.14, 9.12, 15.3 Reverse: 1.1, 4.1
5. Clutch: single-stage or double-stage
6. Steering: mechanical or hydraulic
7. Brake: cricoid, inside expansion
8. Rated traction: 3,000N to 10,000N
Walking Tractor Trailer Why Choose Us:
1. 2 years warranty for all of our products
2. Small Order Accepted
3. OEM Accepted
4. Fastest Delivery
5. Factory price
6. Superior Quality
7. CE,ISO,BV, SGS certificates
8. Enough technical support
Walking Tractor Trailer Technical Specification:
Model of Power Tiller | HSM-101A | HSM-12 | HSM-15 | |
Structure weight KG | Without rotavator | 258 | 353 | 363 |
With rotavator | 350 | 458 | 468 | |
Working weight (with rotavator) KG | 395 | 493 | 508 | |
Overall dimensions (LxWxH) mm | 2700x 960 x 1220 | 2680 x 960 x 1250 | ||
Number of blades PCS | 16 | 18 | ||
Rototilling width mm | 700 | 600 | ||
Type of tractor | Single axle, dual-purpose for both traction & drive | |||
Travelling speed Km/h Forwrd | 2.19, 3.62, 5.79, 7.37, 12.20, 19.48 | 1.4,2.5,4.1,5.3,9.4,15.3 | ||
Travelling speed Km/h Reverse | 3.58, 12.03 | 1.1, 3.8 | ||
Type size | 6.00-12 | |||
Wheel track mm | 650~790(normally use 790) | 800, 740, 640, 580(normally use 800) | ||
Min. ground clearance mm | 214 | 185 | ||
Min. turning radius m | 0.9 with no rotavato | |||
Model of engine | R190N | S195N | S1100N | |
Type of engine | Horizontal 4-stroke | |||
Bore x stroke mm | 90×90 | 95×115 | 100×115 | |
Total displacement L | 0.598 | 0.815 | 0.903 | |
Compression ratio | 18:1 | 20:1 | 19.5:1 | |
Turing speed of crankshaft rpm | 2400 | 2000
| ||
1-hour rated output KW/hphp | 8/10.88 | 9.3/12.65 | 10.5/14.3 | |
12-hour rated output KW/hp | 7.35/10 | 8.3/11.29 | 9.8/13.33 | |
Specific fuel consumption g/kw.h | ≤281.4 | ≤258 | ≤250 | |
Specific lube oil consumption g/kw.h | ≤2.04 | ≤2.04 | ≤2.00 | |
Cooling mode | Condenser (Radiator) |
Walking Tractor Trailer Matched implements:
HSM Walking tractor is dual-function product that can be operated as the towing machine as well as driving machine. They have small and compact structure, light weight, long service life, reliable performance, easy operation and good running ability, also they are be assemble a seating equipment for driver.
It can be used for ploughing, rotary cultivating, harrowing in paddy field, harvesting, transportation etc. if suitable implements or accessories are attached, the tractor can be extensively used as a stationary power station for small scale drainage and irrigation, spraying, grain threshing, cottons ginning, flour milling, fodder cutting etc.
Gongyi Huashengming Heavy Machinery Factory are mainly produce many popular machinerys. We have 30 years experience.Our products got ISO CE BV SGS certificate.
Certifications of Walking Tractor Trailer :
1.Design most suitbale flow chart and layout freely according to your request.
2.Provide operating instruction and relative drawing.
3.We can send 1-2 technicians to the site for guiding the installation and commissioning.
4.We offer training service for free.
5.We offer the components with favorable price.
6.lifetime Warranty.
Walking Tractor Trailer Warranty Time: 2 years warranty for all of our products.
Our payment terms:T/T, L/C, Western Union or others.
Packing:
1.Sand blasting, coat with high quality paint.
2.rustproof and moisture proof before delivery.
3.Load container, Spear Parts in wooden case or iron sheet trunk.
Shipping: We can accept EXW, FOB and CIF terms.
1.By sea or by train. we have 20 years cooperate transport company. bestfreight, fast delivery.
2.Send B/L in 3-5 days after ship leaving.
3.will remind you before ship arrival.
When you inquire the Walking Tractor Trailer, please provide us the following information:
1. Your country
2. Power(HP) of the tractor
3. How many units in your first order
4. Destination port
How to make the order?
1. Send a inquiry by email or trademanager.
2. We proivide you the offer.
3. Confirm delivery time and freight operation.
4. Arrange production after 30% deposit received by T/T
5. Confirm consignee and notify party information.
6. Balance payment received and book ship arranges shipping.
7. Performa invoice, packing list and copy bill of lading sent to you.
8. Product received.
If you are interested in Walking Tractor Trailer, pls feel free to contact us
