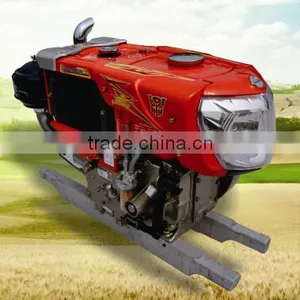

14HP Electric Start Single Cylinder Diesel Engine

Name: 14HP Electric Start Single Cylinder Diesel Engine
Brand: GOLDEN BOW
SKU: 140825172
Availability: InStock

US$ 490 - 500 MOQ: 96 Pieces

Key Specifications

Condition:

New

Usage:

Other, Agriculture

Fuel:

Diesel

Chongqing Goldenbow Group Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

CHONGQING

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Usage Other, Agriculture

Fuel Diesel

Stroke 4 Stroke

Cylinder Single Cylinder

Cold Style Other, Water-cooled

Start Electric Start

Place of Origin Chongqing, China

Brand Name GOLDEN BOW

Model Number JG140DIE

Dimension(L*W*H) 820*348*560

Weight 130KGS

Certification ISO

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Model	Unit	G125DI	G125DIE		G140DI	G140DIE
Type		Horizontal,water-cooled,4-cycle
Bore x Stroke	mm	97x96
Displacement	cc	709
Maximum output	Hp(kW)/rpm	14(10.3)/2400
Continuous rated output	Hp(kW)/rpm	12.5(9.2)/2400
Fuel consumption	g/Hp(kW).h	170(231)
Rated speed	rpm	2400
Idle speed	rpm	≤600
Compression ratio		18:1
Maximum torque	kgf.m/rpm	4.7/1600		5.0/1600
Valve clearance(cold engine)	mm	0.195-0.235
Cooling system		Radiator
Governor system		Flying hammer centrifugal speed type
Fuel injection pressure	kgf/cm2	200
Fuel delivery position		17-19
Combustion system		Direct Injection
Lubricating system		Forced lubrication with trochoid pump
Lubricating oil		SAE 40 API CF
Fuel		Light diesel oil (SAE No.2-D)
Fuel tank capacity	l	10
Cooling water capacity	l	2.1
Crankcase oil capacity	l	2.8
Starting system		Speed doubling handle by hand/Electric start
Direction of Rotation		Counterclockwise facing flywheel
Measurement	mm	820×348×560
Net weight	kg	114	116		114	116
