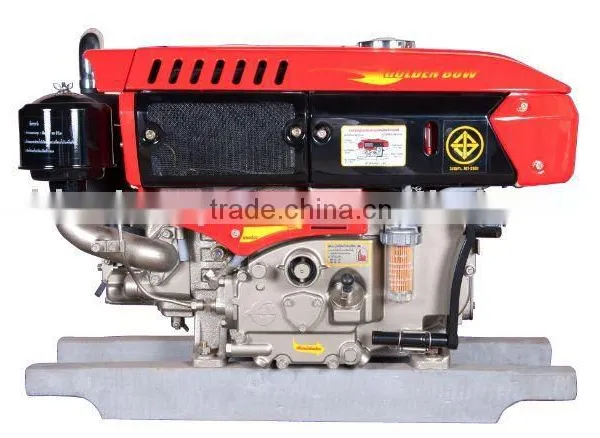

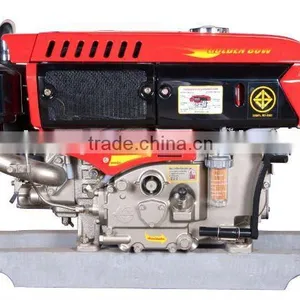

186 4 Cycle Diesel Engine

FOB Price

USD $400 - $500 / Set

5 Sets(Min.Order)

Product Details

Condition:	New	Usage:	Other, Agriculture	Fuel:	Diesel
Stroke:	4 Stroke	Cylinder:	Single Cylinder	Cold Style:	Other, Water-cooled
Start:	Other, electric start&handle start	Place of Origin:	Chongqing, China	Brand Name:	Golden Bow
Model Number:	G95A	Dimension(LWH):	765x350x520mm	Weight:	108kg
Certification:	ISO9001:2008	After-sales Service Provided:	Engineers available to service machinery overseas

1.Type: water-cooled
2.Certificate: ISO9001:2008
3.Maximum output: 9.5(6.99)/2400
4.Fuel: diesel

Technical Specification

NO.	ITEMS	UNIT	MODEL
NO.	ITEMS	UNIT	G95A
1	Type		Single cylinder, horizontal, water-cooled, 4-cycle
2	Bore×stroke	mm×mm	86×90
3	Displacement	cc	522
4	Rated speed	r/min	2400
5	Continuous rated output	Hp	8.5
6	Max. output	Hp	9.5
7	Idle speed	r/min	≤600
8	Compression ratio		21.5:1
9	Cooling system		Radiator
10	Combustion system		(TVCS) Three vortex combustion system
11	Fuel delivery position		19~21
12	Fuel injection pressure	kgf/cm2	120~125
13	Lubricating system		Forced lubrication with trochoid pump
14	Starting system		Electric startup,Speed doubling handle hand
15	Direction of rotation		Counter clockwise facing flywheel
16	Cooling water capacity	L	2.1(Radiator)
17	Fuel tank capacity	L	10
18	Crankcase oil capacity	L	2.3
19	Measurement	mm	765×350×520
20	Net weight	kg	110
