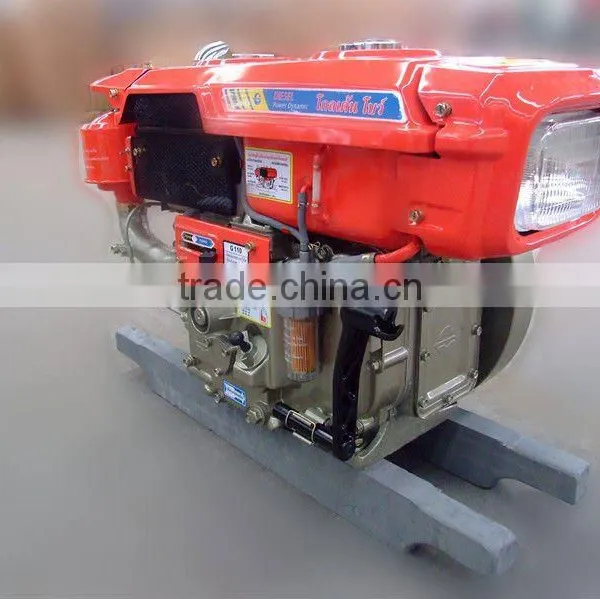

Agricultural Diesel Engine

Name: Agricultural Diesel Engine
Brand: Golden Bow
SKU: 140825108
Availability: InStock

US$ 400 - 480 MOQ: 5 Sets

Key Specifications

Condition:

New

Usage:

Other, Agriculture

Fuel:

Diesel

Chongqing Goldenbow Group Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chongqing China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Usage Other, Agriculture

Fuel Diesel

Stroke 4 Stroke

Cylinder Single Cylinder

Cold Style Other, Water-cooled

Start Other, electric start&handle start

Place of Origin Chongqing, China

Brand Name Golden Bow

Model Number G95

Dimension(L*W*H) 765x350x520mm

Weight 109kg

Certification ISO9001:2008

After-sales Service Provided Engineers available to service machinery overseas

certification

NO.	ITEMS	UNIT	MODEL
NO.	ITEMS	UNIT	G95
1	Type		Single cylinder, horizontal, water-cooled, 4-cycle
2	Bore×stroke	mm×mm	86×90
3	Displacement	mL	522
4	Rated speed	r/min	2400
5	Continuous rated output	Hp	8.5
6	Max. output	Hp	9.5
7	Idle speed	r/min	≤600
8	Compression ratio		21.5:1
9	Cooling system		Radiator
10	Combustion system		(TVCS) Three vortex combustion system
11	Fuel delivery position		20°~22°
12	Fuel injection pressure	kgf/cm2	125~130
13	Lubricating system		Forced lubrication with trochoid pump
14	Starting system		Electric startup,Speed doubling handle hand
15	Direction of rotation		Counter clockwise facing flywheel
16	Cooling water capacity	L	2.1(Radiator)
17	Fuel tank capacity	L	10
18	Crankcase oil capacity	L	2.3
19	Measurement	mm	765×350×520
20	Net weight	kg	110
