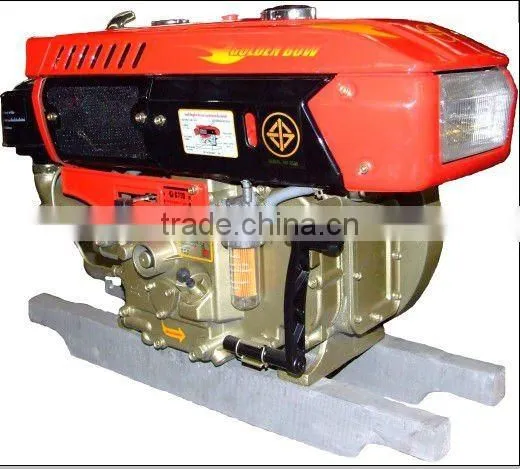

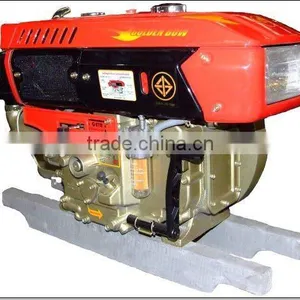

engine diesel 12hp

Name: engine diesel 12hp
Brand: GOLDEN BOW
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Product Details

1.Type: water-cooled
2.Certificate: ISO9001:2008
3.Rated output: 7.72(10.5) kw(Hp)
4.Rated speed: 2400 r/min
Fuel: diesel

Technical Specifications

NO.	ITEMS	UNIT	MODEL
NO.	ITEMS	UNIT	G120A
1	Type		Single cylinder, horizontal, water-cooled, 4-cycle
2	Bore×stroke	mm×mm	94×90
3	Displacement	mL	625
4	Rated speed	r/min	2400
5	Continuous rated output	Hp	10.5
6	Max. output	Hp	12
7	Idle speed	r/min	≤600
8	Compression ratio		21:1
9	Cooling system		Radiator
10	Combustion system		(TVCS) Three vortex combustion system
11	Fuel delivery position		19°~21°
12	Fuel injection pressure	kgf/cm2	120~125
13	Lubricating system		Forced lubrication with trochoid pump
14	Starting system		Electric startup,Speed doubling handle hand
15	Direction of rotation		Counter clockwise facing flywheel
16	Cooling water capacity	L	2.1(Radiator)
17	Fuel tank capacity	L	10
18	Crankcase oil capacity	L	2.3
19	Measurement	mm	765×350×520
20	Net weight	kg	117
