Home > Products > DIESEL ENGINE > SD1115 Single cylinder diesel engine

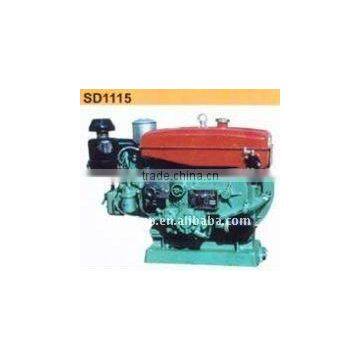

SD1115 Single cylinder diesel engine
Negotiable
/ Set
1 Set(Min.Order)
- 0 per Month
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Usage | Automobile | |
| Fuel | Diesel | Stroke | 4 Stroke | |
| Cylinder | Single Cylinder | Cold Style | Other, Water-cooled | |
| Start | Other, HAND START | Place of Origin | Shandong, China | |
| Model Number | SD1115 |
Product Description
Specifications
single cylinder diesel engine
single cylinder diesel engine LD1100 LD1105 LD1110 LD1115 km130 km138
| Designation | 1115 | 1115T | 1115AT |
| Type | Single cylinder, 4 stroke, direct-injection, horizontal | ||
| Cylinder Bore(mm) | 115 | ||
| Piston Stroke(mm) | 115 | ||
| Displacement(1) | 1.194 | ||
| Compression Ratio | 16~18 | ||
| Rated Speed(rpm) | 2200 | ||
| 12/1 Hour Powder(kw) | 14.7/16.2 | ||
| Specific Fuel Consuption(g/kw.h) | ≤242.1 | ||
| Mean Effective Pressure(kpa) | 740 | ||
| Minimum idling Steady Speed(rpm) | ≤800 | ||
| Maximum Torque(N.M) | 78.8 | ||
| Speed at Maximum Torque(rpm) | ≤1650 | ||
| Fuel Injection Pressure(mpa) | 191 | ||
| Cooling Method | Forced circulation | Hopper | |
| Lubrication Type | Combination of pressure and splash | ||
| Starting Type | Hand cranking | ||
| Direction of rotation of flywheel(faces flywheel) | Counterclockwise | ||
| Net Weight(kg) | 180 | ||
| Overall Dimensions(L×W×H)(mm) | 820×530×700 | ||
