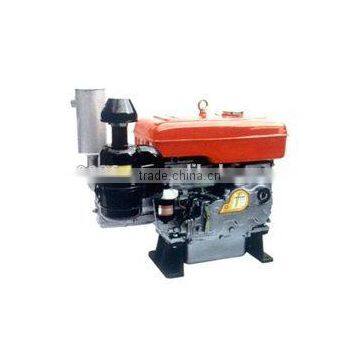

Good Quality & Low Price Diesel Engine KM130

Good Quality & Low Price Diesel Engine KM130 thumbnail-1
Good Quality & Low Price Diesel Engine KM130 photo-1
US$ 100 - 400 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, AGRICULTURAL DIESEL ENGINE
Fuel:
Diesel
Contact Supplier Request Quote Chat Now
Taian City Up International Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Other, AGRICULTURAL DIESEL ENGINE
Fuel Diesel
Stroke 4 Stroke
Cylinder Single Cylinder
Cold Style Other, Water-cooled
Start Other, Hand Start
Place of Origin Shandong, China
Brand Name JULING
Model Number KM130

Specifications

Single cylinder diesel engine KM130

SINGLE CYLINDER BLOCK DIESEL ENGINE SD1115
1.Power:17.6kw/24hp
2.Running Speed:2200 r/min
3.Hand Starting
4.Water-cooled



SINGLE CYLINDER BLOCK DIESEL ENGINE SD1115

MODEL SD1115
Number of cylinder 1
Cylinder diameter×piston stroke 115x125(mm)
Compressure ratio 17.5:1
Rated power(kw/hp) 17.65/24
Running speed(r/min) 2200
Fuel consumption(g/kw.h) 250.2
Lub.oil consumption(g/kw.h) 2.3
Net weight(kg) 185



SINGLE CYLINDER BLOCK DIESEL ENGINE SD1100,SD1105,SD1110.SD1115,SD1125,LD1110,LD1115,KM130,KM138.

model unit sd1100 sd1100b sd1105 sd1110 sd1115 sd1125 sd1130 JSD1800 JSD3200 KM130 km138
specifications
type horizontal type ,single,cylinder,four-stroke,water-cooling
cylinder diameter x stroke mm 100x115 100x115 105x115 110x115 115x125 125x120 130x120 135X130 150X120 118X118 122x118
displacement l 0.903 0.903 0.996 1.093 1.298 1.473 1.593 1.86 3.711 1.29 1.38
model of combustion chamber swirl chamber direct-injection           DIRECT INJECTION direct-injection
compressure chamber   20 20 16.5 16.5 17.5 6.5 16.5 15.5 16 17 17
power 1hour power kw/r(min) 12.1/2200 12.1/2200 13/2200 14.7/2200 17.6/2200 20.2/2200 22/2200 16.2/1500 28/1100 17.6/2200 18.4/2200
12 hour power kw.r(min) 11/2200 11/2200 11.76/2200 13.2/2200 16.2/2200 8.8x2200 20.2/2200 15.5/1500 32/1100 16.2/2200 17.6/2200
specific fuel consumption g.kw.h ≤262.5 ≤262.5 ≤250.2 ≤250.2 ≤250.2 ≤250.2 ≤250.2 ≤250.2 ≤145. ≤242.1 ≤242.1
specific oil consumption kg/h ≤.03 ≤.03 ≤.032 ≤.036 ≤.044 ≤.05 ≤.055 ≤.042   ≤.044 ≤.048
max torque n.m ≥53.4 ≥53.4 ≥57.1 ≥64.1 ≥78.7 ≥89.4 ≥98.2 ≥110.5   ≥85.6 ≥89.4
injectiong pressure mpa 17.76 17.76 18.13 1.13 19.8 19.5 19.5 19.8   20±0.5 20±0.5
lubricating type force and splash
cooling method water-cooling
starting method cranking or electric starting
net weight kg 165 165 170 180 185 240 240 300 788 190 190
overall dimension l x w x h mm 782x536x596 782x510x596 756x510x593 814x545x627 814x538x647 857x555x779 814x545x627 960X560X700   762X548X893 762x548x893
