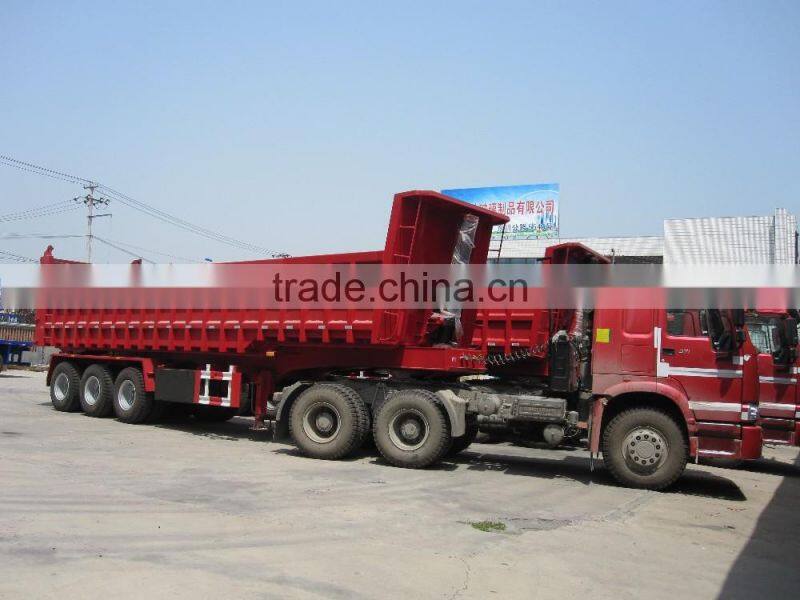

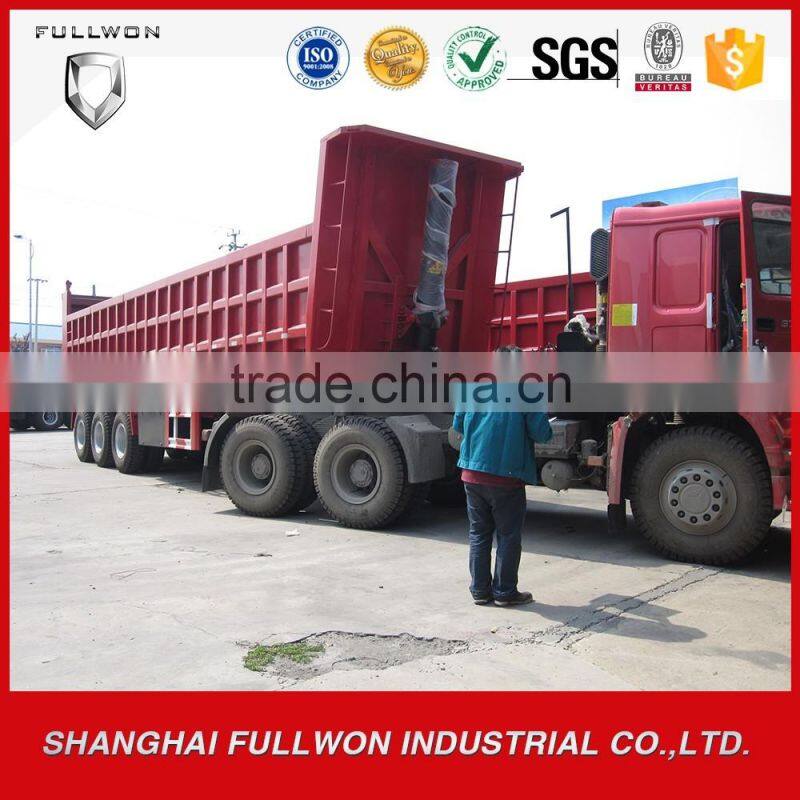

SEENWON China Supplier Manufacturers 15ton Small Farm Dump Trailer

Name: SEENWON China Supplier Manufacturers 15ton Small Farm Dump Trailer
Brand: seenwon
Availability: InStock

FOB Price

US$ 3,000 - 7,000 / Unit

1 Unit(Min. Order)

Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Semi-Trailer	Material	Aluminum / Alloy
Certification	CE	Size	1128024953970mm
Max Payload	15ton	Brand Name	seenwon
Model Number	sw 156

Product Description

Product name	SEENWON China Supplier Manufacturers 15ton small farm dump trailer
Dimension	1128024953970mm ( outside)
Dimension	1050023001700mm (work space ) size can be your choose
Tare weight	About 15600KGS
Total Volume（m3）	37 m³ or less than 60tons
Side wall thickness（mm）	6mm Q235 steel
Bottom plate thickness(mm)	8mm /Q235 steel

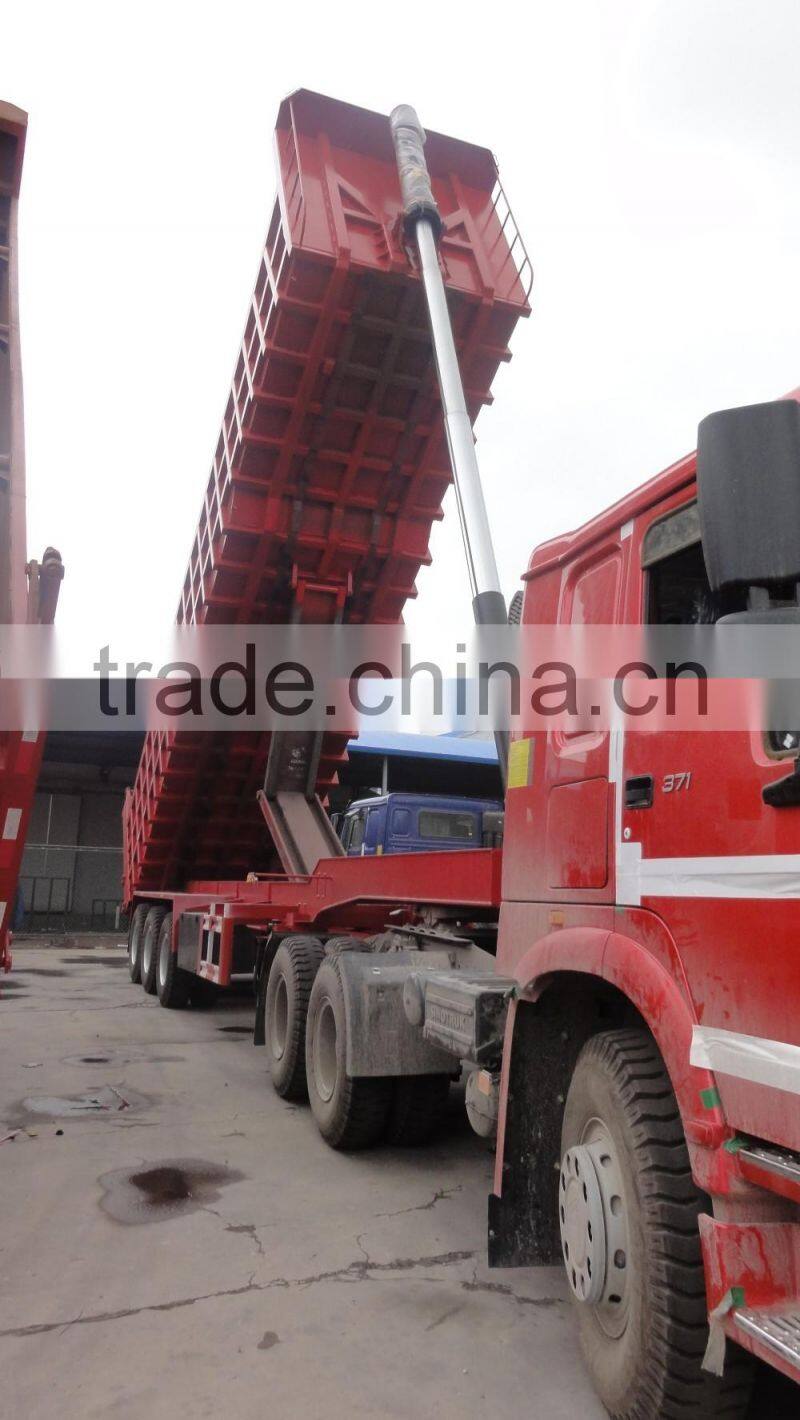

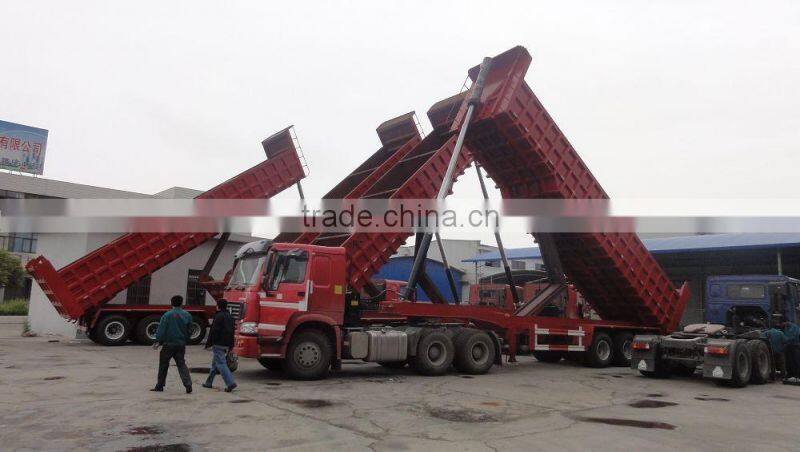

Lifting system	Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder
Lifting system	(FC196 MODEL use for 9 m length trailer)

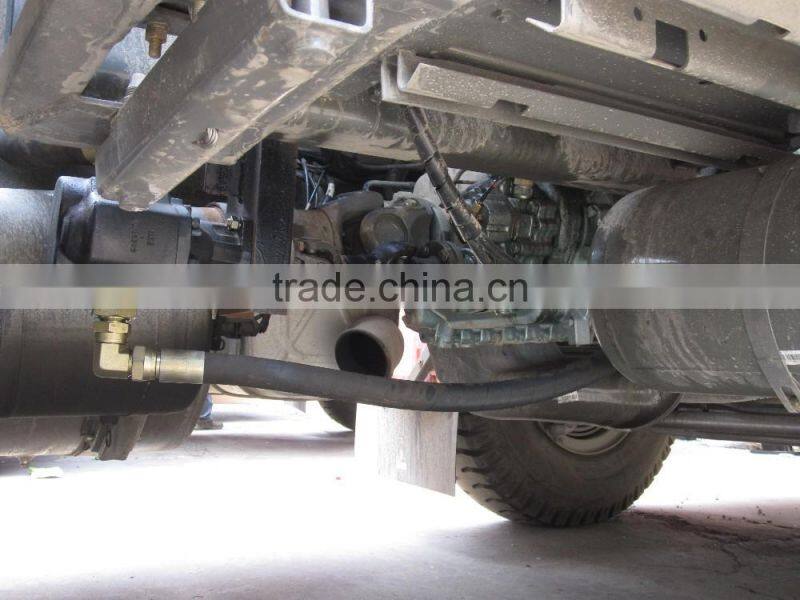

Chassis
Main Beams	Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel
Axle	3 axles, FUWA/HUAJING brand 16tons per axles
Landing Gear	JOST (D200T）or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/ America type /
Leaf Spring	90(W)mm13(Thickness)mm10 Layer
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber; 2 pieces of 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model .
	By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model .
	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	Transport by bulk cargo carrier, RORO or 40HQ container.
