STC250H truck crane achieves intelligent electronic control. Self-developed controller SYMC special for engineering machinery is configured. The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness, and high reliability. Timely feedback of data information can achieve the monitoring of the overall working status in real time.
Superior Performance
Powerful Lifting Capacity

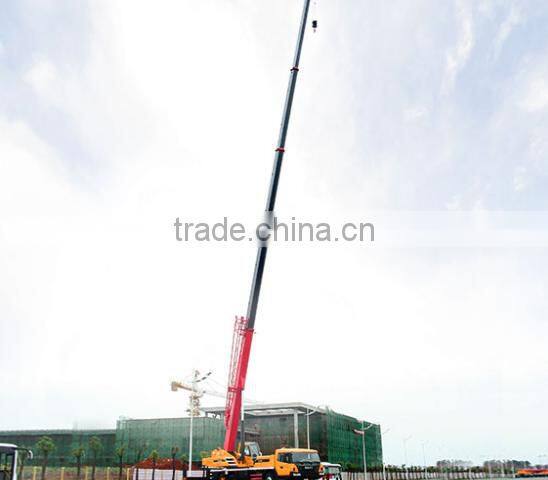

STC250H 25 ton crane has five-section boom of high strength steel structure and optimized U-shaped cross section with max.lifting capacity of 25t, full-extended boom length of 33.5m, max.lifting height including jib of 42m, reduce weight and improve safety significantly.
Jib mounting angles are 0°, 15°, and 30°, which ensure fast and convenient change-over between different operating conditions so as to improve working efficiency of the machine.
Efficient & Adjustable Hydraulic System
Load sensitive variable plunger pump is applied to provide real time adjustment of pump displacement, high-accuracy flow control, strong lifting capacity and good micro-mobility. Unique steering system is applied to ensure stable braking operation.
Excellent Traveling Performance
Double-axle drive is applied to provide good mobility. Trafficability and comfortableness under the complex road condition is improved with reliable traveling performance;
Engine has the multimode power output function, which reduces power consumption.
Safety and Stability
The Load Moment Limiter
Equipped with the comprehensive intelligent protection system is used with accuracy within 3%. The adoption of comprehensive logic and interlock control system ensures more safe and reliable operation.
More Safe Devices
Main and auxiliary winches are equipped with over roll-out limiter to prevent over rolling-out of wire rope.

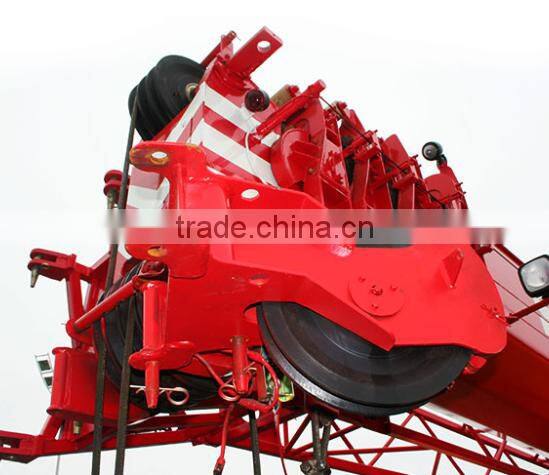

Boom and jib ends are equipped with height limiters respectively to prevent over-hoisting of wire rope.
Hydraulic system is configured with the balance valve, overflow valve and two-way hydraulic lock etc., to ensure stable and reliable operation.

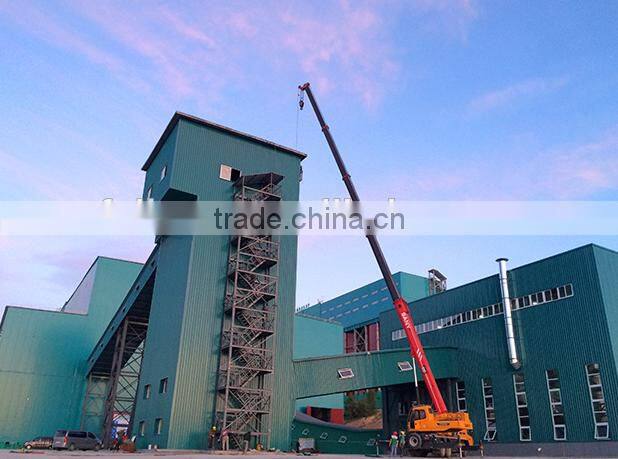

Sany Truck Crane Used in Mongolia–Russia Mine Expansion
Sany’s 25-ton truck crane STC250H was used in the Erdenet Copper-Molybdenum Mine expansion project. Erdenet Copper-Molybdenum Mine is the third-largest mine in Mongolia — a joint venture between Mongolia and Russia in which Mongolia owns 51 percent and Russia, 49 percent.
The expansion was part of the goal to increase the mine’s yearly mining capacity from 26 million tons (2014) to 32 million tons. An increase in revenue of $115 million (240 billion Tugrik) is expected from the expansion, with $35 million (73 billion Tugrik) going to government tax.
Mongolian President Tsakhiagiin Elbegdorj was also in attendance at the mine expansion project’s inauguration ceremony held on June 20, 2015.
Fullwon cooperates with leading truck manufacturers and suppliers , We are the officially authorized 4S dealer and distributor of some famous brands such as SINOTRUK, LONKING and VOLVO. And we are registered in the Commercial Department of China, with the whole qualification for exporting. Certificates including ISO9001 can also be provided.
Advantage:
* Have Our Own Logistics Company
* Senior Engineers with over 20 Years' Working Experience
* Offer Operation and Maintenance Training
* Have No Limit of Order Quantity
Value-added Services:
* Forty-five Predelivery Inspections
* Export Brand New Vehicle with Clean Cab
* Export Vehicle with Full Wax Protection
* Reasonable Packing
* One-stop service supplied
Other Service:
* Customer accompanied services
* Consulting Service
* Sourcing Service
