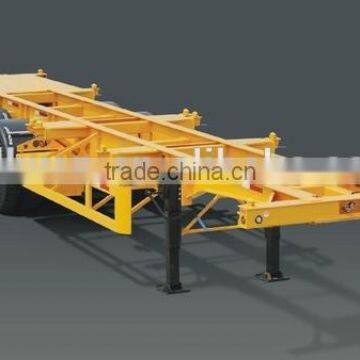

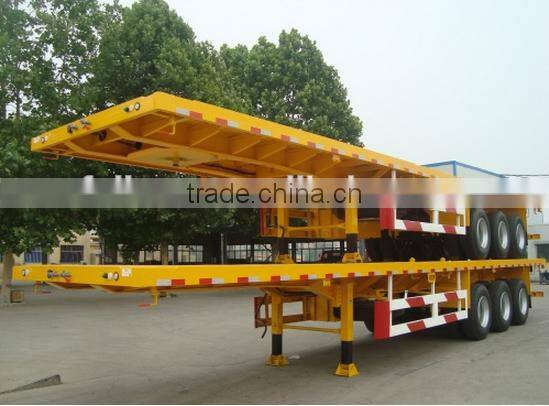

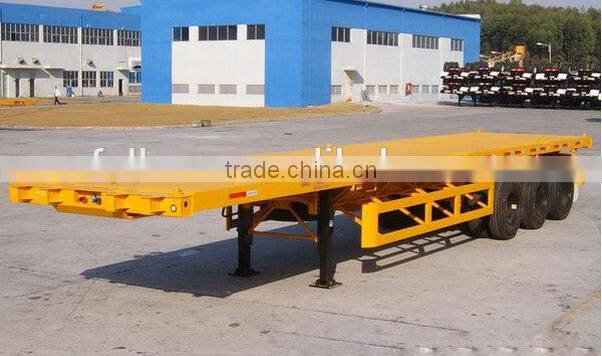

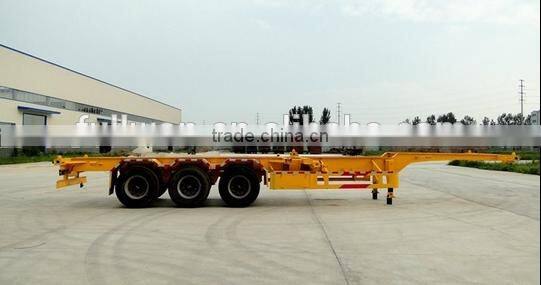

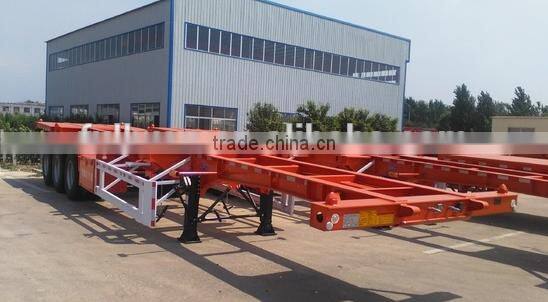

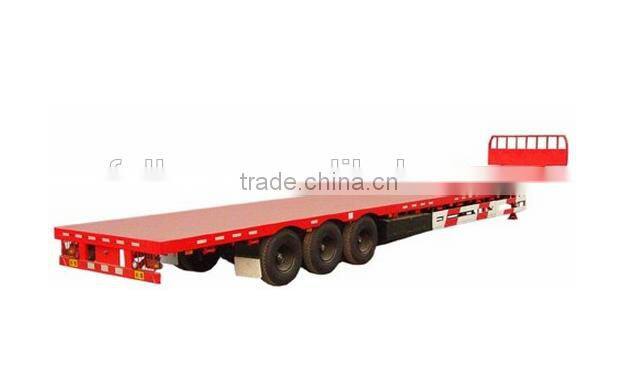

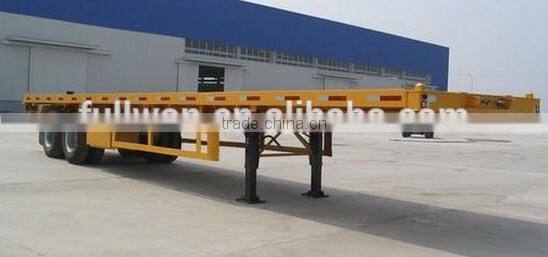

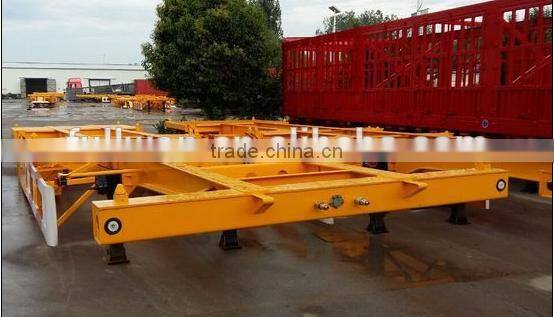

New product tri axle container semi-trailer
- 1700000 Unit / Units per Month
- Shanghai China
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Type: | Semi-Trailer | Material: | Steel | Certification: | DOT |
Size: | 12450x2490x1575mm | OEM No.: | 370832228001160 | Max Payload: | 45T |
Place of Origin: | Shanghai, China | Brand Name: | Fullwon | Model Number: | Fullwon container trailer |
Product Description
New product tri axle container semi-trailer
Specifications | |
Tare Weight | About 7.1T |
Dimension | 12450×2490×1575mm( outside dimension,The exact size depends on the final design.) |
Loading Capacity | less than 45 tons |
Bottom Plate | Thickness: 3mm checkered plate /Q235 steel |
Axle | 13 T/16T, China Brand two or three axles |
Rim | 9.00-22.5, 13pcs |
Tire | 12.00R22.5/ 315 80R22.5, 13pcs |
Suspension | Mechanical suspension (German or American type) or air suspension (Chinese brand or BPW brand ) |
Spring leaf | 90(W)mm×13(Thickness)mm×10 layers or 100mm×12mm×12 layers |
King pin | JOST brand 2.0 or 3.5inch (bolted or welded type) |
Support leg | JOST brand C200T or Chinese brand 28Tons (Double speed) |
Main beam | Height: 500mm Top plate: 14mm Middle Plate: 8mm; Bottom Plate is 16mm; Material: Q345B Steel |
Side beam | 16mm or 18mm steel channel(Q235steel ). |
Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber ; 45L air tanks |
Twist lock | 4, 8, or 12 sets (lifting or screw Type) |
ABS | Optional |
Valve | WABCO valve |
Light | LED light (specially intended for oversea market ) |
Voltage | 24V |
Receptacle | 7-pin Socket (for 7 wire harness) |
Tool box | 1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Size can be tailored to suit your needs.) |
Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats. |
- Senior after sale service team
- International Logistic Company(Fullwon Branch company)
- ISO9001 and ISO14001 Approved
We are looking forward to your enquiry. Thank you!
FULLWON is one of the leading distributor and exporter on the trucks and construction equipment in China. Fullwon cooperates with leading truck and construction equipment manufacturers and suppliers of brand SINOTRUK, LONKING, VOLVO, RENAULT.
New equipment inspection service: For Tractor, Dump Truck, Cargo Truck, Tank Truck, truck crane and Construction Equipment.
- After-sales Service
- In-house training and Workshop
- Technical Support
- International Logistics Service
- Special Promotions
- Purchasing Solutions
- Maintenance Program
- Consultation Program
Q: How can we trust your company?
A: We are the officially authorized 4S dealer and distributor of some famous brands such as SINOTRUK, LONKING and VOLVO. And we are registered in the Commercial Department of China, with the whole qualification for exporting. Certificates including ISO9001 can also be provided.
Q: How about your warranty item?
A: We can support you with original spare parts, and email or telephone assistance in the following days. If necessary, our experienced engineer can go abroad to your place for technical support.
Q:How about your product quality?
A: All our products are from the original manufacturers and the quality is 100% guaranteed.
Q:How do you transport the trucks?
A: There are optional transportation manners including RORO ship, bulk cargo ship, flat rack container, 20' container, 40' container, 40' HQ, 40' top open container, and LCL to meet your requirements.
Q: Can I be your agent in my country ?
A:It’s OK if the order quantity is appropriate. We looks forward to long-term cooperation.
