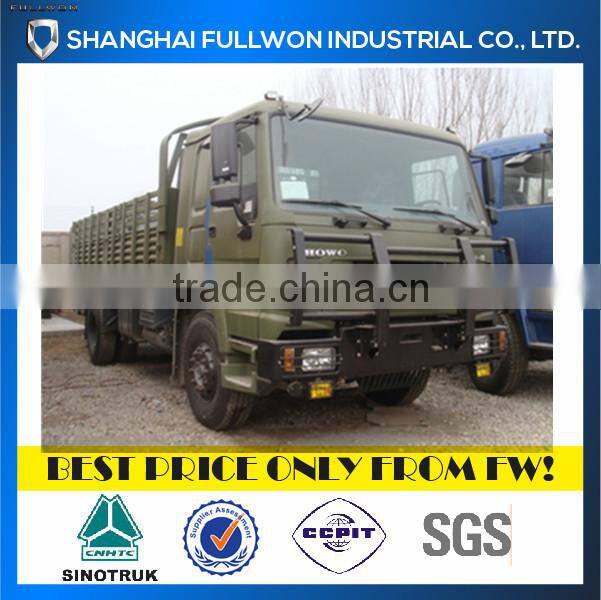

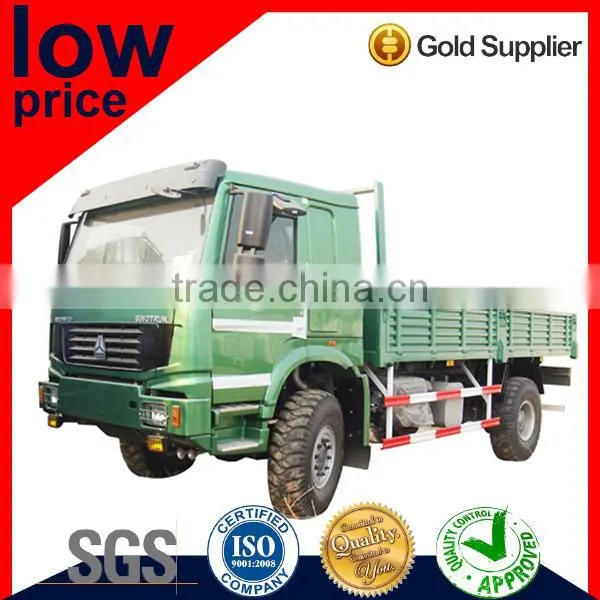

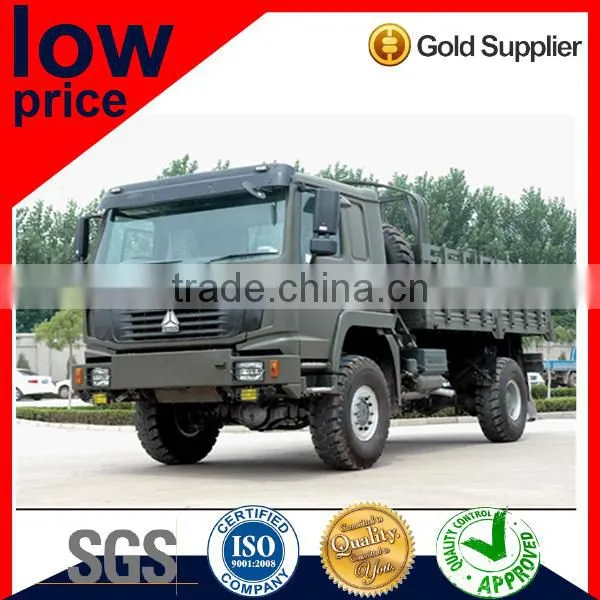

SINOTRUCK AWD 290HP 4*4 Military Truck
1.Certificates: ISO, CE. 2.Good after-sale service 3.Fuel-efficient, big bucket
| AWD 290HP 4*4 AWD TRUCK | |||
| Dimensions | Length (mm) | 8968 | |
| Width (mm) | 2496 | ||
| Height (mm) | 3146 | ||
| cargo body size(mm): | 6400*2326*400 | ||
| Cargo beam steel thickness | Bottom 3mm, Side 1.5mm | ||
| Wheel Base (mm) | 1800+4600+1350 | ||
| Front /rear suspension(mm) | 1500/2625 | ||
| Approach/Departure Angle (°) | 16/15 | ||
| Weight | Vehicle Curb Weight (kg) | 10020 | |
| Loading weight(kg) | 9950 | ||
| Gross Comb. Weight (kg) | 20100 | ||
| Gross Comb. Weight (design) | 20100 | ||
| Performance | Max. Speed (km/h) | 90,102 | |
| Max. Speed (km/h)(design) | 90,102 | ||
| Fuel Consumption (L/100km) | 35 | ||
| Core Equipments Specifications | ||||||||||||
| Engine | Model | WD 415.21 Diesel engine, EURO2 ,6-cylinder in line,4-stroke,water-cooled,turbocharged,air-to-air intercooled | ||||||||||
| Rated Power (HP/r/min) | 210HP/155kw, 2200r/min | |||||||||||
| Max. Torque (Nm/r/min) | 820Nm ,1300~1600r/min | |||||||||||
| Type | WEICHAI ENGINE | |||||||||||
| Driving axle | Type | HC16/16ton, double axle/ reduction, Ratio: 4.42/4.8/5.73 | ||||||||||
| Clutch | Model | Standard C-type (Standard WABCO clutch master cylinder,wheel cylinder) | ||||||||||
| Type | SINOTRUK 430 pull-type diaphragm clutch | |||||||||||
| Transmission | Type | HW15710, Max.torque1500Nm,10 gears | ||||||||||
| Frame | Type & Advantages | MAN Frame,Enhanced whole front suspension brackets and beams to Improve the reliability of the engine and cab suspension | ||||||||||
| Large span beams connecting plate and local reinforcement structure make stress distribution more uniform | ||||||||||||
| Stringer standard pitch design in favour of Modular layout and option of the assembly of different wheelbase | ||||||||||||
| Front Axle | Type | SINOTRUK MADE, HF9, Howo new Style,Standard disc brakes | ||||||||||
| Ratio Load(kg) | 9000 | |||||||||||
| FR. Suspension | Type | New SINOTRUK style, spring suspension | ||||||||||
| Rear Axle | Type | HC16 | ||||||||||
| Ratio Load(kg) | 16000 | |||||||||||
| Reduction | Ratio: 4.42/4.8/5.73 | |||||||||||
| RR. Suspension | Type | New SINOTRUK style, spring suspension | ||||||||||
| Steering | Model | ZF8098 | ||||||||||
| Type | ZF steering ,ZF power steerig pump,system pressure18Mpa | |||||||||||
| Steering Wheel | hydraulic steering | |||||||||||
| Brake System | Parking | drum brake | ||||||||||
AWD TRUCK
roll-on/roll-off
We have exported our trucks through roll-on/roll-off by many times and guarantee the safety of customers' cargo.
Shanghai Fullwon International Logistics Co., Ltd. (“Fullwon Logistics” for short), a subsidiary of Shanghai Fullwon Industrial Co., Ltd., was established in November 2007.
-- Roll-on/roll-off ships
-- Container Transpotation
AWD TRUCK
-- Air Transportation
-- Customs clearance
Parts & service
--New equipment inspection service
--Supports techniques
--Parts service
--Vehicle failure and damage
Fullwon group was founded in 1999. Shanghai Fullwon Industrial Co., Ltd. (hereinafter referred to as Fullwon) belongs to Fullwon group and established in 2003. Fullwon cooperates with leading truck manufactures and suppliers of brand name VOLVO, RENAULT TRUCK, UD, SINOTRUCK and ISUZU. FULLWON is one of the leading truck and construction equipment distributors and exporter in China.
Focus on the oversea market development, Fullwon is the professional exporter for heavy duty trucks, construction equipments and spare parts in China. As the authorized exporter for China National Heavy Duty Trucks(SINOTRUK), who can provide all types of SINOTRUK including bus, light truck, tractor head, dump truck, cargo truck, concrete mixer truck, mining dump truck, terminal tractor, workshop truck, flat tray truck, 20’ container self-loaded vehicle, logging truck, road wrecker, AWD truck, tank truck, suction pump tank truck, septic tank truck, garbage truck, special purpose truck, customized truck, all types of semitrailer, and all brand of spare parts. AWD TRUCK
AWD TRUCK
