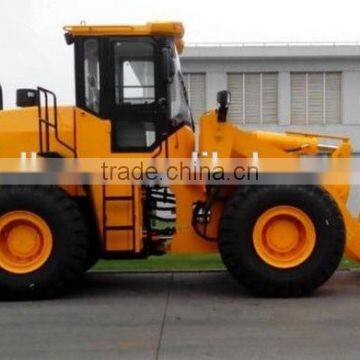

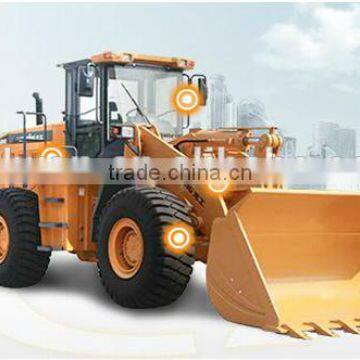

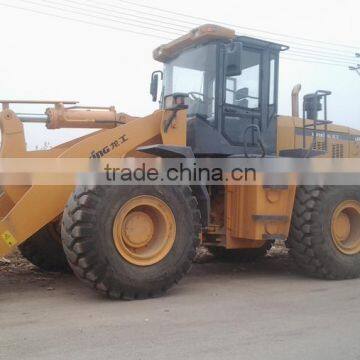

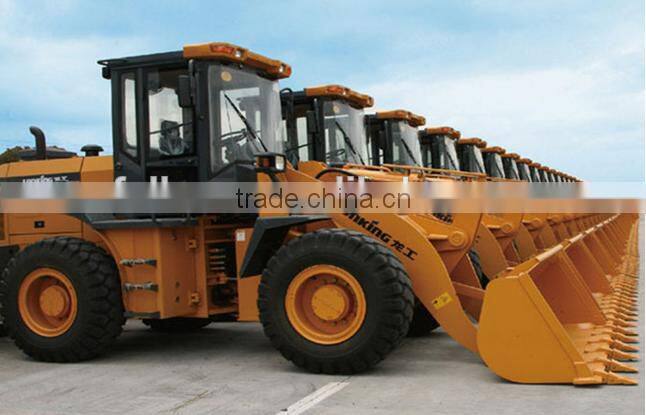

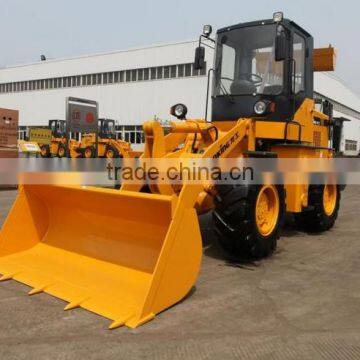

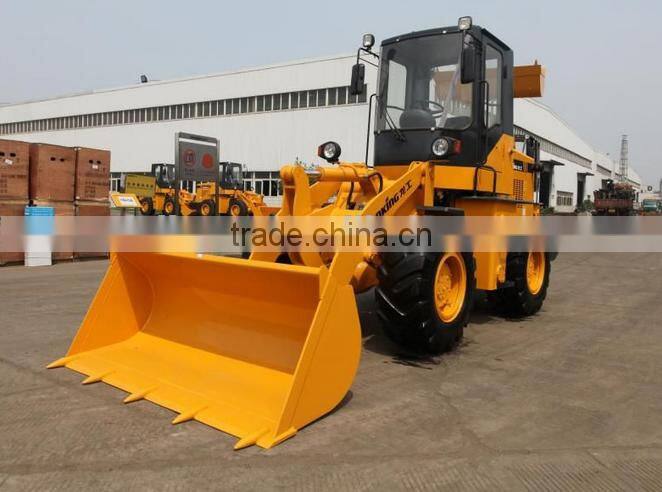

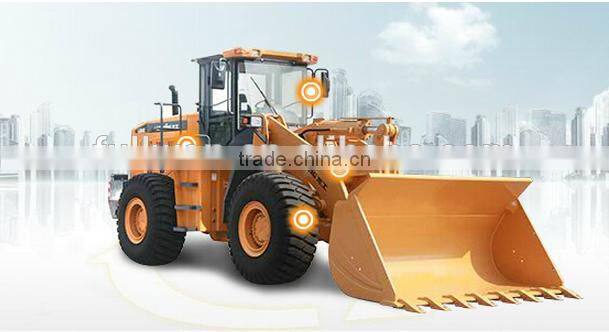

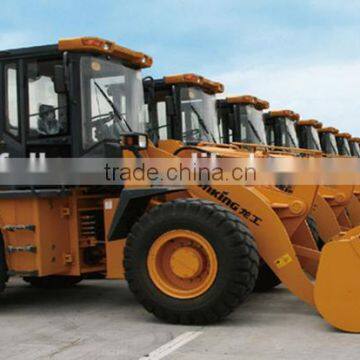

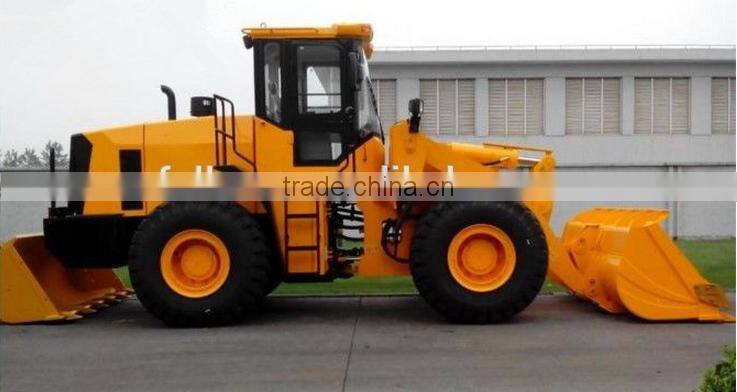

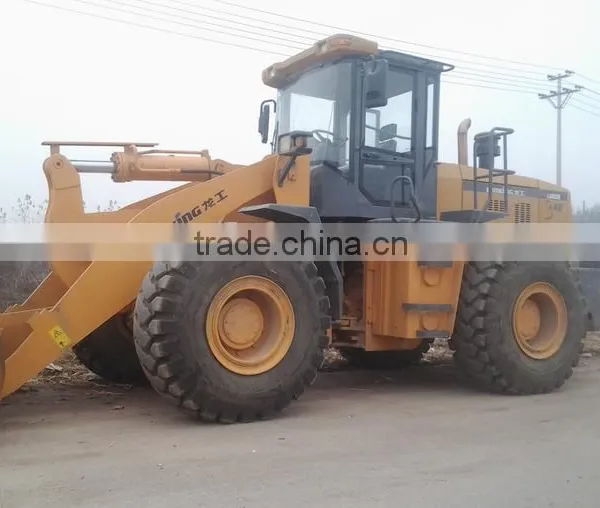

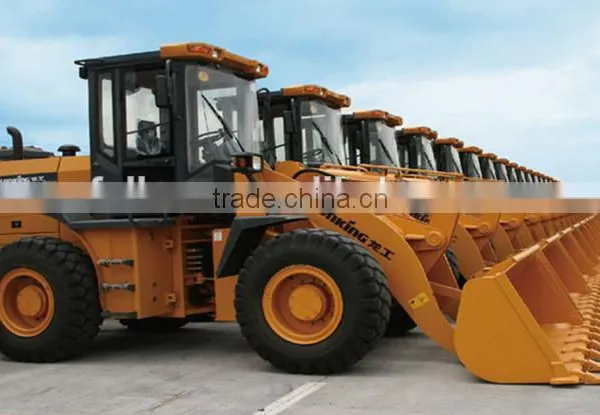

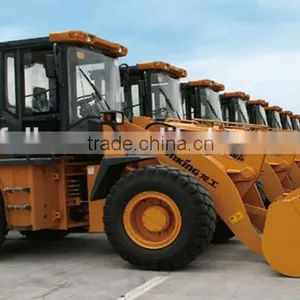

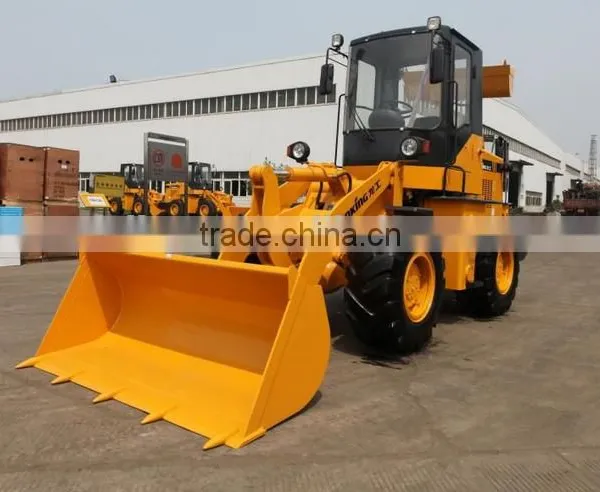

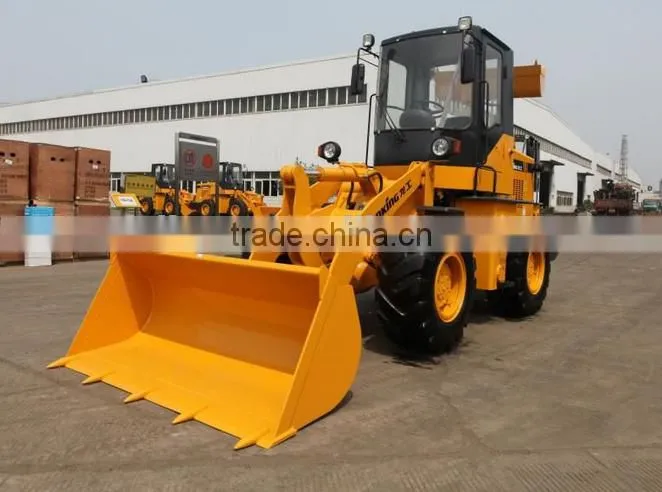

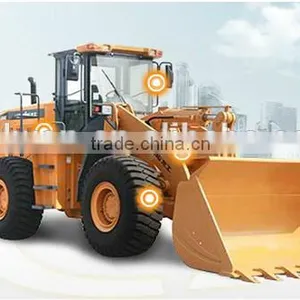

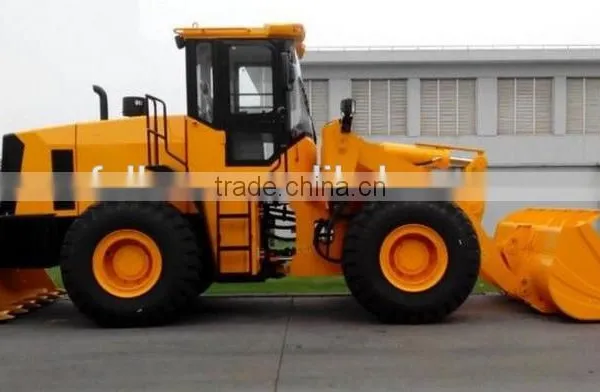

Good Price Lonking 5 Ton Wheel Loader for Sale

Overall data

Bucket Capacity (m³)

0.95

Rated Payload (kg)

1600

Operating Weight (kg)

5500

L×W×H(mm)

5700×1950×2930

Traction Force (kN)

50

Breakout Force (kN)

52

Travel Speeds (km/h):

Forward

8 or 21

Reverse

8 or 21

Engine

Engine model

YTO  YT4A2-24

Rated Power (kW·hp)/rpm)

55·(75)/2400

Rated Torque (Nm/rpm)

235/1680-1800

Starting Voltage (V)

24

Drive Train

Torque Converter

Single-stage, Single-turbine, 3-element

Torque Ratio

3.7

Transmission

Fixed Shaft Hydraulic Shift Spur Gear

Gear

2F/2R

Pressure of Transmission (MPa)

1.2-1.5

Main Reducer

Spiral Bevel Gear Single-stage Reduction

Final Reducer

Planetary Reduction

Tire

16/70-20

Brake System

Service Brake

Air Drive, Four Wheel Brake (Dry)

Setting Pressure (MPa)

0.78

Parking & Emergency Brake

Flexible Shaft Controlled Caliper

Steering System

Type

 Hydraulic Load Sensor System

Cylinders-bore x Stroke (mm)

2-63X280

Steering Pump

Shared With Working Pump

System Pressure (MPa)

14

Steering Angle

±35°

Hydraulic System

Lift Cylinders-bore x Stroke (mm)

2-90X589

Tilt Cylinder-bore x Stroke(mm)

1-100X387

Working Pump

Gear Pump

Flow Rate (L/min/rpm)

120/2400

System Pressure (MPa)

16

Hydraulic Cycle Time, Rated Load in Bucket (In Second):

Raise(Loaded)

4.9

Dump

0.8

Lower(Empty)

3.7

Total

9.4

Electrical System

System Voltage (V)

24

Battery(2 in series) (Ah)

180

Lamp Voltage (V)

24

Service Refill Capacity

Fuel Tank (L)

80

Hydraulic Tank (L)

80

Transmission (L)

18

Front Axle (L) / Rear Axle (L)

12/12

Air Conditioning System (Optional)

Heating Capacity (W)

4500 (±10%)

Cooling Capacity (W)

3200 (±10%)

Standard

Optional

Hydraulic Transmission
Dry Brake Drive Axle
Standard Bucket
Mechanical Flexible Shaft Control

Log Grapple
Light-duty Grapple
High Dumping
Quick Connector
Fork
Enlarged Bucket
Air Conditioner
Pilot Control
