Lonking Hydraulic Crawler Excavator CDM6485H for Sale

Shanghai Fullwon Industrial Co., Ltd.
Lonking Hydraulic Crawler Excavator CDM6485H for Sale thumbnail-1
Lonking Hydraulic Crawler Excavator CDM6485H for Sale photo-1
US$ 10,000 - 250,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Lonking
Model Number:
CDM6485H
Condition:
New
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Lonking
Model Number CDM6485H
Condition New
Moving Type Crawler Excavator
Operating Weight 48200kg
Bucket capacity 2.2m3
Maximum Digging Height 10300mm
Maximum Digging Depth 6691mm
Machine Weight 48200kg
Max Digging Radius 10849mm
Rated Speed 3.3 - 5.32 km/h
Certification ISO
After-sales Service Provided Engineers available to service machinery overseas
Product Description
Lonking Hydraulic Crawler Excavator CDM6485H for sale
Specifications
CDM6485H
Engine
Model
Cummins QSM11
Rated power
269kW /1850 rpm
Max. torque
1674N∙M/1400rpm
Bore × Stroke
125mm × 147mm
Displacement
11.04 L
Operating weight
Summary
Operating weight：48200kg
The operating weight includes the weight of 7060mm standard boom, 3380mm standard arm,2.2m3 standard bucket, 600 mm track, lubricating oil, coolant, the full diesel oil tank and the rest standard configuration units.
Ground pressure
83 kPa
Fluid capacity
Fuel tank
655 L
Cooling system
43 L
Engine oil
40 L
Swing drive unit
7.3 L
Traveling gear
2×10 L
Hydraulic oil tank
480 L
Swing mechanism
Summary
High torque plunger motor and 2-stage planetary reducer drive. Brake inside loading motor is applied by spring and released by hydraulic unit. The automatic braking is available when the swing control lever is in neutral position.
Swing speed
9.1 rpm
Travel drive
Summary
The integrated 2-speed plunger hydraulic motor and reducer drive, motor and hydraulic pipeline are arranged inside the track frame to prevent the damage caused by the rugged road surface; The motor inside is provided with the service brake and shock absorption valve to ensure the smooth running and stop and the reliable braking.
Taveling speed
3.3 - 5.32 km/h
Gradeability
35°(70%)
Maximum Traction
382 kN
Traveling mechanism
Standard track shoe width
600 mm
No. of track shoes
50 (each side)
No. of carrier rollers
2 (each side)
No. of track rollers
9 (each side)
Hydraulic system
Main pump
Duplex axial variable plunger pump
Pilot pump
Gear pump (integrated in main pump)
Max. flow of system
2×360 L/min
Max. pressure of equipment
37.2 MPa
Max. pilot pressure
3.9 MPa
Operating equipment
Each machine action is under the pilot control. The right lever controls the motion of boom and bucket while the left lever controls the arm motion and upper structure swing. The foot pilot valve is provided with the lever joystick to control the machine traveling or turning by the foot or lever. The traveling gear shift adopts the solenoid switch control.
Electrical system
System voltage: 24 V
Battery: 12 V, 85 A

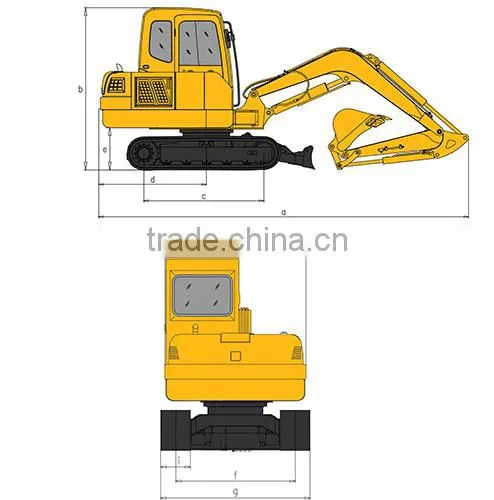

Product Description
Boom Length (mm)
6300
Arm Length (mm)
2900
a Transport length (mm)
11176
b Total transport height (mm)
3556
c Tumblers distance (mm)
4350
d Tail slewing radius (mm)
3595
e Counterweight ground clearance (mm)
1319
f Track gauge (mm)
2750
g Total transport width (mm)
3538
h Upper structure width (mm)
3160
i Standard track shoe width (mm)
600
j Min. ground clearance (mm)
791
Cab height (mm)
3313

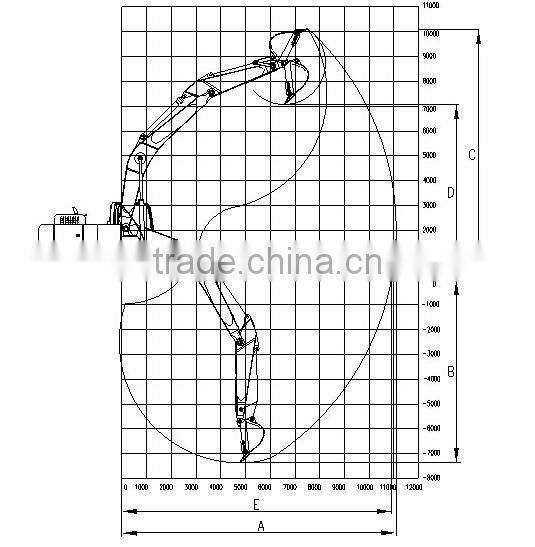

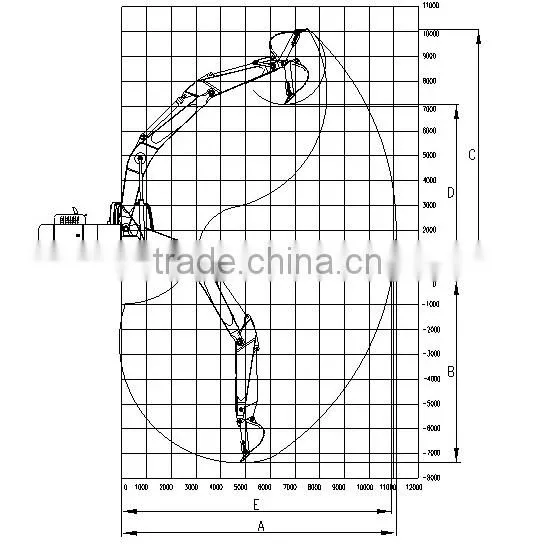

Product
Boom Length (mm)
6300
Arm Length (mm)
2900
A   Max. digging radius (mm)
10849
B Max. digging depth (mm)
6691
C Max. digging height (mm)
10300
D Max. dumping height (mm)
7161
E Max. digging radius on ground (mm)
10623
Max. bucket breakout force ISO (kN)
258
Max. arm breakout force ISO (kN)
267
