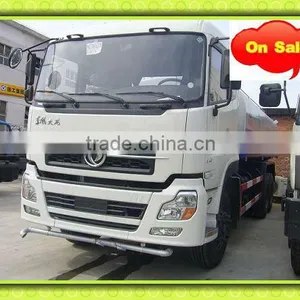

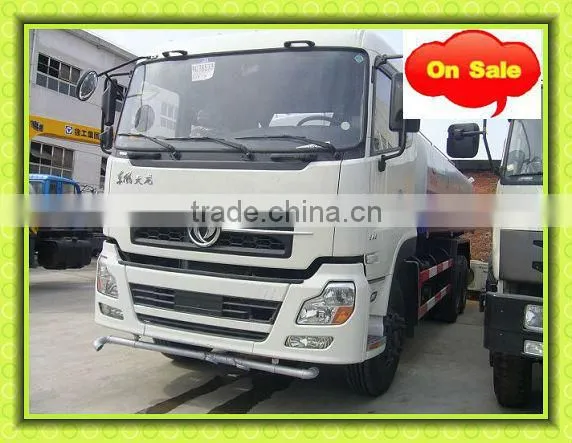

Dong Feng Water Truck,water Tank Truck,off-road Water Truck

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Drive Wheel:

6x4

Fuel:

Diesel

Transmission Type:

Manual

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of China

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel 6x4

Fuel Diesel

Transmission Type Manual

Condition New

Sprinkling Area (m) 12 - 16m

Emission Standard Euro 2

Engine Capacity 4 - 6L

Tank Volume 15001 - 30000L

Dimensions (L x W x H) (mm) 8.8*2.5*3.8

Brand Name CLW

Place of Origin Hubei, China

Model Number CLW

Gross Vehicle Weight 25000

Certification ISO

Specifications

Dong Feng Water Truck
Chassis model:EQ1108G6DJ16
Overall dimensions:7500*2470*3050
Fact cubage:10000-12000L
OEM

Dong Feng Water Truck

Item		unit	parameter
Vehicle model			CLW5108GSS Water Truck
Chassis model			EQ1108G6DJ16
Overall dimensions		mm	7500×2470×3050
	Fact cubage	L	10000-12000
	GVW	kg	Appro×10810
	Rated loading capacity		Appro×4500
	Mass in working order		Appro×6115
	Body internal dimensions	mm	4200×2000×1150
	Wheel base		3950
	F/R track base		1900/1800
	Approach/departure angle	°	30/18
Exhaust/hp		ml/kw	5880/118
Max speed		km/h	90
Tire specification		9.00-20,9.00R20	Engine type	EQB160-20
Traction system		4×2	transmission	6-speed with over drive
Number of axles		2	Electric system	24v
Operation control system		Electrically hydraulic control	Allowable passengers in cab	3
Equipment		Equipped with front(rear,side)sprinkler(sprinkling width14m ) Equipped with rear working platform with water cannon (range28m) Equipped with CLW pump(suction lift6m) Equipped with fire valve,water valve,and filter gauze
Engine		DongFeng Cummins Environmental Protection,supercharge,diesel engine
Production cycle		5-7 days
Factory price			FOB/DAF/CNF/CIF
