Home > Products > water truck > DongFeng Truck,dongfeng water tank truck,water irrigation truck

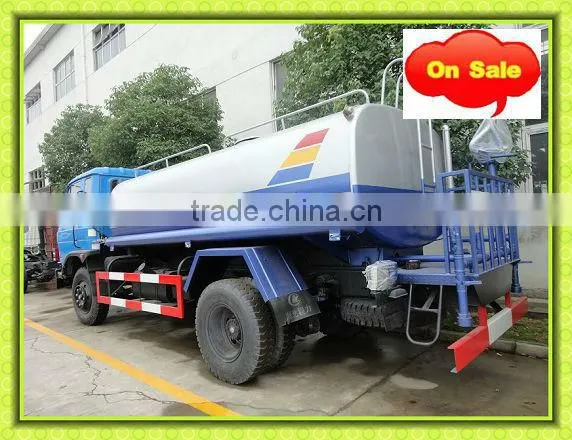

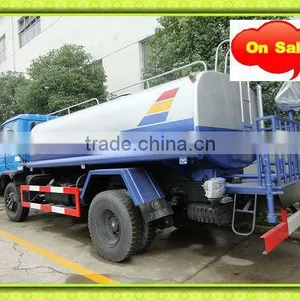

DongFeng Truck,dongfeng water tank truck,water irrigation truck
- 500 Unit / Units per Month
- Shang hai
You May Like
Product Details
| Drive Wheel | 4x2 | Fuel | Diesel | |
| Transmission Type | Manual | Condition | New | |
| Sprinkling Area (m) | 12 - 16m | Emission Standard | Euro 2 | |
| Engine Capacity | 4 - 6L | Tank Volume | 10001 - 15001L | |
| Dimensions (L x W x H) (mm) | 7640*2462*2710 | Brand Name | CLW | |
| Place of Origin | Hubei, China | Model Number | CLW5141GSS | |
| Gross Vehicle Weight | 5200 | Certification | iso |
Product Description
Specifications
DongFeng TruckThe water truck installed the sprinkler(front, rear,and side)
The convenience is practical.
3C,ISO,BV
OEM
DongFeng Truck
Item | unit | parameter | ||
Vehicle model |
| CLW5141GSS Water Truck | ||
Chassis model |
| EQ1141G7DJ | ||
Overall dimensions | mm | 7640×2462×2710 | ||
| Fact cubage | L | 12000-13000 | |
GVW | kg | Appro×14800 | ||
Rated loading capacity | Appro×7000 | |||
Mass in working order | Appro×7605 | |||
Body internal dimensions | mm | 5000×2100×1350 | ||
Wheel base | 4500 | |||
F/R track base | 1940/1860 | |||
Approach/departure angle | ° | 34/18 | ||
Exhaust/hp | ml/kw | 5880/132 | ||
Max speed | km/h | 90 | ||
Tire specification | 10.00R20,10.00-20 | Engine type | EQB180-20 | |
Traction system | 4×2 | transmission | 6-speed with over drive | |
Number of axles | 2 | Electric system | 24v | |
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | |
Equipment | Equipped with front(rear,side)sprinkler(sprinkling width14m ) Equipped with rear working platform with water cannon (range28m) Equipped with CLW pump(suction lift6m) Equipped with fire valve,water valve,and filter gauze | |||
Engine | DongFeng Cummins Environmental Protection,supercharge,diesel engine | |||
Production cycle | 5-7 days | |||
Remark:
1.The warranty is one year, and the production cycle is 20 working days when receiving your deposit.
2.The water truck installed the sprinkler(front, rear,and side), and the Sprinking length exceed 14 meters
the rear platform with water cannon(range be bigger than 28 meters), Installed the CLW Brand water Pump(suction lift range be bigger than 6m)
3.This water truck is a sample, If you have any question or other requirement about it, Plesae don’t hesitate to contact with me.
