Famous 16 Ton Knuckle Boom Truck Mounted Crane,pickup Truck Crane

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

all field

Rated Loading Capacity:

10Tons

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application all field

Rated Loading Capacity 10Tons

Rated Lifting Moment 25TM

Max. Lifting Load 10Tons

Max. Lifting Height 14m

Span 15.8m

Place of Origin Hubei, China

Brand Name CLW

Model Number SQ4S/SQ4Z

Certification iso

Specifications

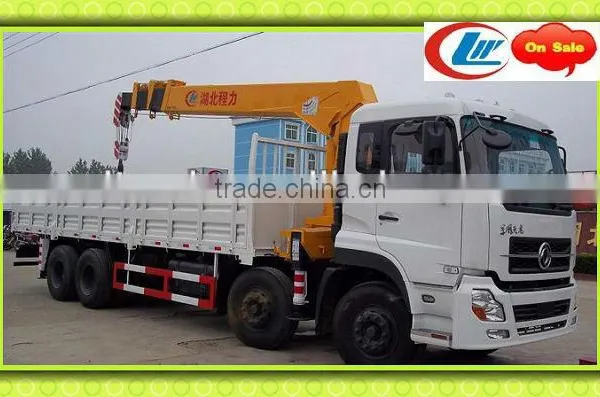

famous 16 ton knuckle boom truck mounted crane
1.dongfeng 8x4 new cabin;
2.diesel cummins engine, 260hp
3.16t
4.OEM

famous 16 ton knuckle boom truck mounted crane

Overall dimension(mm)	12000×2490×3850	G.V.W(Kg)	31000
Load capacity(kg)	14105,14305	Curb weigh(Kg)	16700,16600
Engine model	Engine manufacrurer	Emission	Power
YC6A260-31 C260 33	Guangxi Yuchai diesel engine company Dongfeng Cummins diesel engine company	7255 8300	191 191
Axle number	4	Axle load(Kg)	6500/6500/18000
Rear wheel distance(mm)	1860/1860	Front wheel distance(mm)	1980/1980
Tyre specification	10.00-20,10.00R20, 11.00-20,11.00R20	Wheelbase(mm)	2100+4250+1300

Technical patameters of crane:

Crane Model.					SQ16SA3
Max Lifting Weight(kg)					16000
Max Lifting Moment(N.m)					376000N.m
Boom	Section Form		pentagon		Slewing Mechanism			Slewing Angle Range(°)		±360
	Boom QTY.		4					Slewing Speed r/MIN		2
	Boom Telescope Speed(m/s)		6.8/35		Crane Leg			Leg Style		H Leg
	Boom Lifting Speed(°/s)		70/22					Span(m)		2.2~7.2
	Max Working Radius(m)		15		Hydraulic Space			Pressure (Mpa)		24
	Boom Length(m)		4.5~15					Oil Tank Volume(L)		180
	Max Lifting Height(m)		17		Dead weight(kg)			4200
	Single Rope Allowable Tension(N)		22000		Matching Chassis			Above 12 tons chassis
Table of comparisons about lifting capacity
Working Radius(m)		2.5		5.5		8.5	10.5		15
Rated Capacity(kg)		16000		7000		4000	1500		800
