Specifications
Dongfeng 4*2 log truck with crane1>Max lifting capacity: 3.2T
2>Max loading capacity: 8T
3>Engine power: 135hp
Dongfeng 4*2 log truck with crane
Item |
Unit |
Parameter |
|
Product |
/ |
Crane truck |
|
Gross weight |
kg |
9870 |
|
Curb weight |
5675 |
||
Overall dimensions |
mm |
8000×2490×3150 |
|
Front/rear suspension |
1065/2235 |
||
Wheelbase |
4700 |
||
Tread |
Front |
1810 |
|
Rear |
1800 |
||
Leaf spring number |
/ |
9/11+8 |
|
Axle number |
/ |
2 |
|
Axle-load |
kg |
|
|
Tire specification |
9.00-20 |
||
Engine |
Model |
/ |
EQ6100-1 |
Displacement |
ml |
5420 |
|
Power |
kw/hps |
99/135 |
|
Other Main Parameters |
Cargo box |
Max loading capacity(T) 8 |
|
Dimension(mm): 4800×2290×550 | |||
Crane |
Crane Brand: XCMG |
||
Crane Model: SQ3.2 | |||
Max lifting capacity(T): 3.2 | |||
Max lifting height(m): 7.5 | |||
Working radius(m): 5.8 | |||
Turning angle: 400° | |||
Arm Nos.: 2 | |||
Payment terms and delivery:
Delivery date: 7-10 days
Payment terms: 30% TT as deposit and 70% TT upon receipt of B/L copy
Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements
Remarks:
The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following:

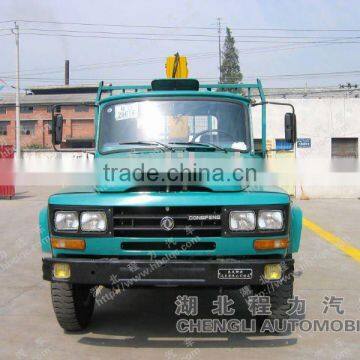

Reference Picture:
