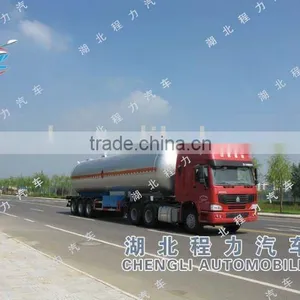

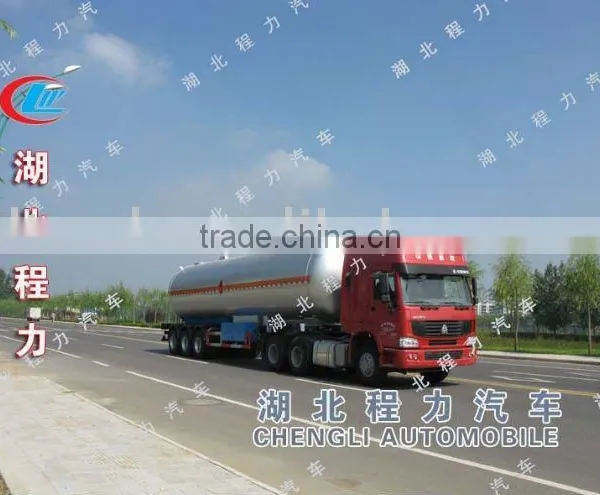

3 Axles Aluminum/alloy Lpg Tanker Truck Trailer

Specifications

3 axles aluminum/alloy lpg tanker truck trailer
1>Axle numbers: 3
2>Max loading capacity: 16000kg/16T
3>Tank cubage: 45310L

3 axles aluminum/alloy lpg tanker truck trailer

Item		Unit	Parameter
Product		/	3 axles aluminum/alloy lpg tanker truck trailer
Gross weight		kg	40000
Curb weight			16440
Rated payload			23560
Overall dimensions		mm	11240×2490×3980
Front/rear suspension			-/1735
Wheelbase			5000+1310+1310
Tread	Front		-
	Rear		1840/1840/1840
Leaf spring number		/	-/7/7/7
Axle number		/	3
Axle-load		kg	-/24000
Tire specification		12.00R22.5,11.00-20,11.00R20
Other main parameters	Tank cubage	M³/L	45.31/45310
	Tank dimension	mm	10920×2426
	Tank material	/	Aluminum/alloy
Price(FOB Shanghai)		US$	According to your specific requirements

Payment terms and delivery:

Delivery date: 7-10 days

Payment terms: 30% TT as deposit and 70% TT upon receipt of B/L copy

Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements

Remarks:

The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
