Specifications
Dongfeng auto swivel sweeper truck supplierChina Chengli manufacturer price
ccc,bv,iso,euro4
sweeping truck with Donfeng
Dongfeng auto swivel sweeper truck supplier
Crane Truck Parameters
We are a professional manufacturer, we have our own workshop and technical personnel,We can produce all kinds of size of the street sweeper truck.
| The main technical parameters of Road sweeping truck | |||||
| Product Name | mini FOTON Road sweeper truck | ||||
| Manufacturing enterprises | Chengli Special Automobile Co.,Ltd | ||||
| Basic Information | Outline size (L×W×H) mm | 5950*1995*2380 | |||
| capacity (litre) | 2370 | Empty mass weight (Kg) | 4800 | ||
| Chassis Information | Chassis model | Dongfeng DFA1070SJ35D6 | |||
| Driving Directions | left hand drive | ||||
| Wheel base(mm) | 3300 | Max speed(km/h) | 95 | ||
| Tire specification | 7.00-16 14PR,7.00R16 14PR | Approach/departure angle ( o ) | 20/16 | ||
| Front track base(mm) | 1032 | Rear track base(mm) | 1513 | ||
| Traction system | 4×2 | Transmission | 6-speed | ||
| Number of axle | 2 | Electric system | 24v | ||
| Operation control system | Steering wheel | Allowable passengers in cab | 3 | ||
| Engine Information | Engine Model | 4B28BTCI | |||
| Power/displacement(KW/ML) | 70(95hp)/ 2834 | ||||
| Engine Manufacture | FAW Diesel Engine (Europe 4) | ||||
| Equipment | The vehicle-specific set feature of sweeping, cleaning, watering in one, and the operation is simple. | ||||
| Sweep width: 3000 mm, cleaning capacity: 40000-60000m2 / h, cleaning speed: 3-20km/h , Cleaning Efficiency: 90%; maximum inhalation size: 120mm; nozzle minimum ground clearance: 200mm | |||||
| Sweeping vehicle with brush 4, cleaning stainless steel tanks, bellows | |||||
| Equipped with operating system | |||||
| Work principle | Install four rotating brushes, when the vehicle forward the rubbish and sand will be brought by rotating brushes to the in the middle of the vehicle, with the use of the vacuum suction head ,the rubbish and sand pumping into the waste collection tank in the box. Installed a rubbish bin (containing water tank), install an engine as a power source, equipped with twin hydraulic pumps, hydraulic control systems, hydraulic actuator, respectively, to make the driven fans, sweeping brushes, suction cups, pumps, bins and so on to work | ||||

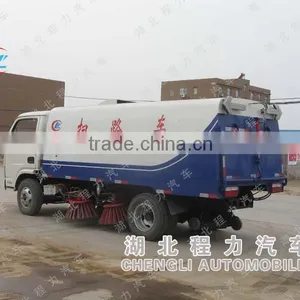

Images
road sweeping truck, sweeper truckPacking: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements.Ensure that the new car arrive 100% safe.
After-sale Service One year warranty Any small question will be solved at the most prompt time. We also offer relative technical support. Our spare parts will be available at any time after your order.
Supply Capacity
We manufacture the truck as soon as your order comes. And for the stock, we can delivery it immediately.
For more details, please just feel free to contact me.
ChengLi special automobile co.,LTD Factory Supply:
a.special truck manufacturers in Suizhou city,HuBei province, china,
b.more than 100 kinds of special truck for your needing.such as garbage truck,LPG truck ,fuel truck , water truck ,high platform truck , dump truck , concrete mixer truck ,truck mounted crane ,chemical tank truck , fire fighting truck ,bulk cement truck ,flat bed trailers , low bed trailer , cargo trailer tipper trailer ,fuel trailer ,LPG trailer and more
c.Nearly 15 years Wholesaler experience inproduce truck and truck parts field
1.How about quality of your factory quality ?
A:All our trucks 100% new .All our trucks got ISO 9001:2008 and CCC and B&V certificate ,and many truck passed SGS inspection .All our chassis and spare parts are from the original manufacturers with original part number and and anti-fake label, all our suppliers have passed the SGS,BV, and CONTECNA qualification certification, the quality is 100% guaranteed.
2. How many years of your company's service, especially after-sale service?
A: Chengli special automobile Co.,Ltd has been in this field for nearly 15 years and has strong production and distribution capability,we can produce your products in 15 working days.We offer after-sale service 1 year.
