Specifications
Tri-axle LPG pressure vessel semi-trailer for sale1>Tank volume: 55CBM
2>Axle number: 3
3>Transport medium:Propylene
Tri-axle LPG pressure vessel semi-trailer for sale
Item | Parameter | Item | Parameter | ||
Semi-trailer | Model | CLW9407GYQ | Tank | Volume | 55M3 |
Gross weight | 4000kgs | Filling coefficient | 0.43 t/M3 | ||
Rated payload | 23650kgs | Tank weight | 12350kgs | ||
Curb weight | 16350kgs | Design pressure | 2.16MPa | ||
Axle | 3 | Design thickness | 15mm | ||
Leaf-spring | -7/7/7 | Tank material | Q345R | ||
Max.unloaded inclination angle | ≥35° | Corrosion allowance | 1 mm | ||
Airtight test pressure | 2.16MPa | Hydraulic test pressure | 3.24MPa | ||
Overall dimension (Length*Width*Height) | 12776*2490*3975(mm) | Tank dimension (Internal diameter*Thickness*Length) | 2450*15*12500(mm) | ||
Payment terms and delivery:
Payment terms: 30% TT as deposit and 70% TT upon receipt of B/L copy
Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements
Remarks:
The above information is just for your reference. We can manufacture as per your request and we can fulfill all your demands.
Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service.
Pls check my contact information as following:

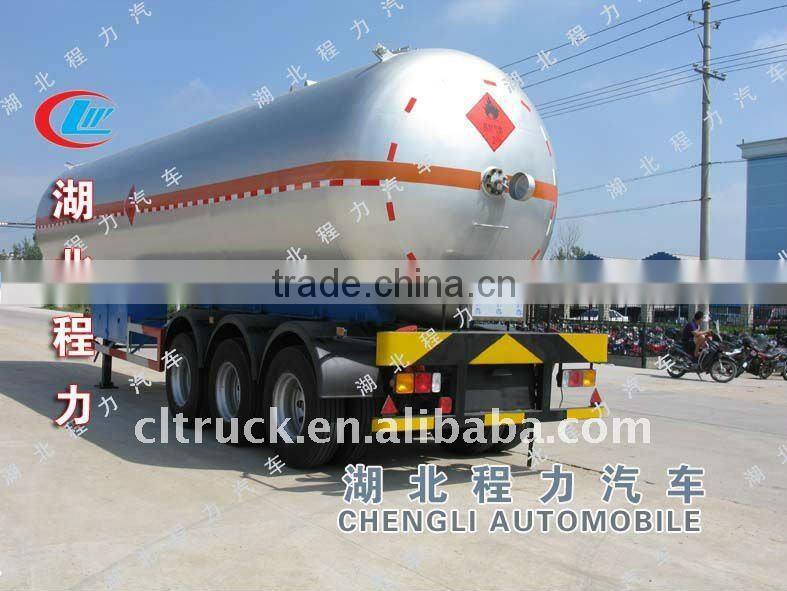

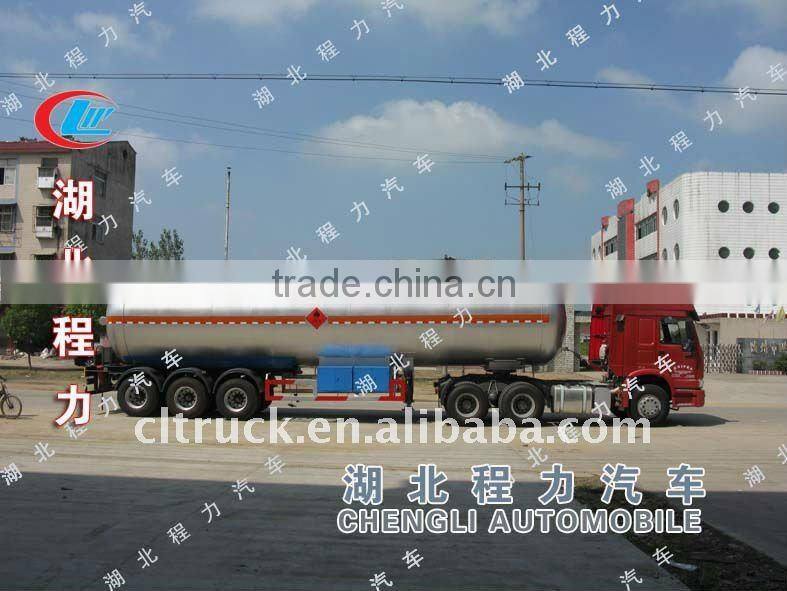

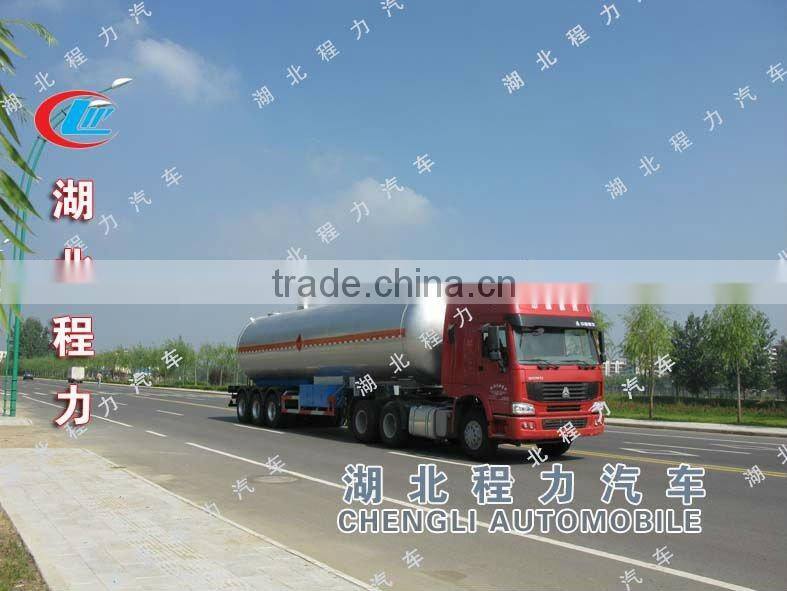

Reference pictures:
