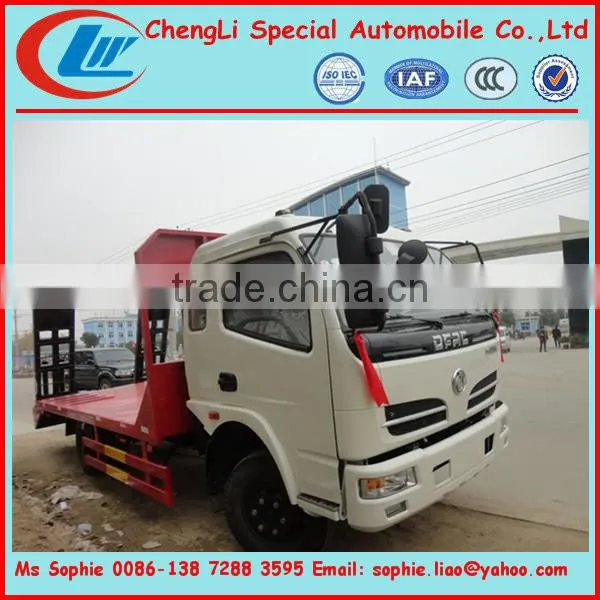

Mini Excavator Transportation Truck ,Dongfeng Trucks for Transport Excavator

Chengli Special Automobile Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Capacity (Load):

1 - 10t

Drive Wheel:

4x2

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Capacity (Load) 1 - 10t

Drive Wheel 4x2

Horsepower 150 - 250hp

Transmission Type Manual

Emission Standard Euro 2

Fuel Type Diesel

Engine Capacity 4 - 6L

Size 6920*2370*2480

Gross Vehicle Weight 5095

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW

Specifications

Mini excavator transportation truck ,Dongfeng trucks for transport excavator
1. dongfeng 4x2
2. diesel 95hp
3. 4M
4.OEM

Mini excavator transportation truck ,Dongfeng trucks for transport excavator

Product Model	CLW5050TPB Small Flat Bed Truck	*Overall Dimension(LWH)(mm)*	6920×2370×2480
Gross weight (kg)	5095	Approach/ departure angle (° )	19/11,19/12
Payload(kg)	1800	Cab capacity	3
Curb weight(kg)	3100	Max Speed (km/h)	90
Wheelbase(mm)	3800,4050	Cab type	Dongfeng Jingka Blue cab
Chassis Technical Parameter
Chassis Model:	EQ1056GD3JAC	Chassis Manufacturer:	Dongfeng Automobile Co. ltd
Brake System	Air brake	Transmission type:	Manual
Front/ rear suspension(mm)	1032/2088	Leaf Spring number:	12/12+9
Axle number	2	Front/Rear axle load(Kg)	1730/3365
Gear box	Dongfeng 5 shift	Front/Rear tread(mm)	1506/1650
Tire size	8.25-16	Traction Type:	4*2
Engine specification
Engine Model:	CY4102-C3D	Engine Brand	Dongfeng Chaochai
Emission stand	Euro 3	Displacement(ml)	3856
Fuel type:	Diesel	Power(kw)	80/109hp
Other Equipment or Parameter	1. With simple outrigger, Rear double spring ladder climbing, optional hydraulic or totally structure
	2. Optional equipped with straight arm or folding arm, optional equipped with compartment
	3. Steel sheet thickness:4mm
