Asphalt trailer,Asphalt sprayer,Asphalt Distributor Trailer 8CBM
Main picture and general information:
Vehicle Specifications for Asphalt trailer,Asphalt sprayer,Asphalt Distributor Trailer 8CBM
| Vehicle Description | |||||
| Vehicle model | Asphalt Distributor | Overall dimensions (mm) | 8450x2490x3560 | ||
| GVW (kg) | Appro×16000 | Fact loading capacity (L) | 8000 | ||
| Mass in working order (kg) | Appro×8000 | Max. Speed (km/h) | 95 | ||
| Chassis Description | |||||
| Chassis Model | ZZ1166G6715C | ||||
| Cab | Standard cabin with Left hand drive | ||||
| Color | Optional | ||||
| Allowable person in cab | 3 | ||||
| Wheel base (mm) | 5,000 | ||||
| Front/Rear track base (mm) | 1880/1860 | ||||
| Front/Rear overhang (mm) | 1430/2320 | ||||
| Number of axles | 2 | ||||
| Axle | Front axle | 6000 | |||
| Rear axle | 10000 | ||||
| Traction system | 4x2 | ||||
| Operation control system | Power steering | ||||
| Braking system | Full air | ||||
| Electric system | 24V | ||||
| Transmission | Mechanical gear box 5 speeds + one rear | ||||
| Spring plate | 8/10+8 | ||||
| Tire specification | 10.00-20,10.00R20,9.00-20,9.00R20 | ||||
| Tire quantity | 6+1 | ||||
| Engine Description | |||||
| Engine manufacture | SINO TRUCK | ||||
| Engine model | JID17B00287/YC6J90-66 | ||||
| Emission standard | Euro 3 | ||||
| Exhaust/output | 6700 | ||||
| Horse power | 210 | ||||
| Up-parts Description | |||||
| Asphalt tank Outline Dimension (mm) | 2730x1950x1300 | ||||
| Asphalt tank Inner Dimension(mm) | 2630x1850x1200 | ||||
| Insulating layer thickness (mm) | 50 | ||||
| Asphalt tank Total Volume(L) | 4000 | ||||
| Hydraulic pump | CBQ550-L | ||||
| Proportional valve | Taiwan EFBG-03-160-HF | ||||
| Asphalt pump | QGB680 | ||||
| Hydraulic motor for asphalt pump | 05-110-BD31 | ||||
| Heating System | Italian burner Riello | ||||
| Heat-transfer oil pump | 25-25-160 | ||||
| Control System | SIEMENS CLW-39-01 | ||||
| Generator | 5.5KW gasoline engine generator | ||||
| Number of nozzle | 30-39 | ||||
| Spray medium | Hot asphalt/ Hot modified asphalt/ Cutback asphalt/ Emulsified asphalt | ||||
| Spray width(m) | 4.5-6 | ||||
| Spray amount(L/m2) | 0.2-2 | ||||
| Working Condition: | 1,Altitude: 0-4500m | ||||
| 2,Temperature: -350C~+450C | |||||
| 3,Relative humidity: 80% | |||||
| 4,Wind force: ≤8 degree | |||||
Rmarks: The information above is just for your reference. We can manufacture trucks according to your demands.

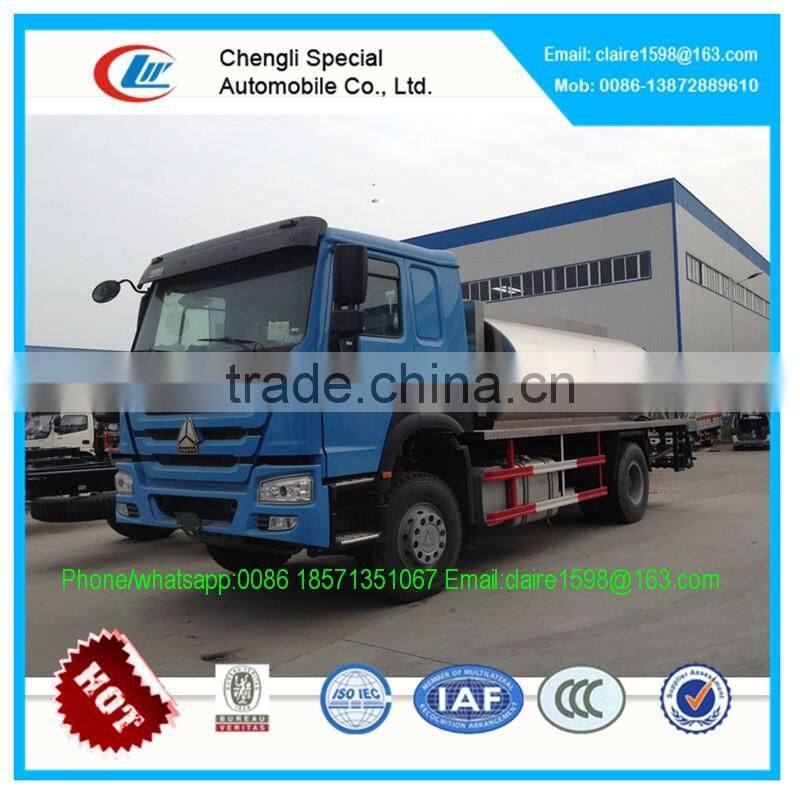

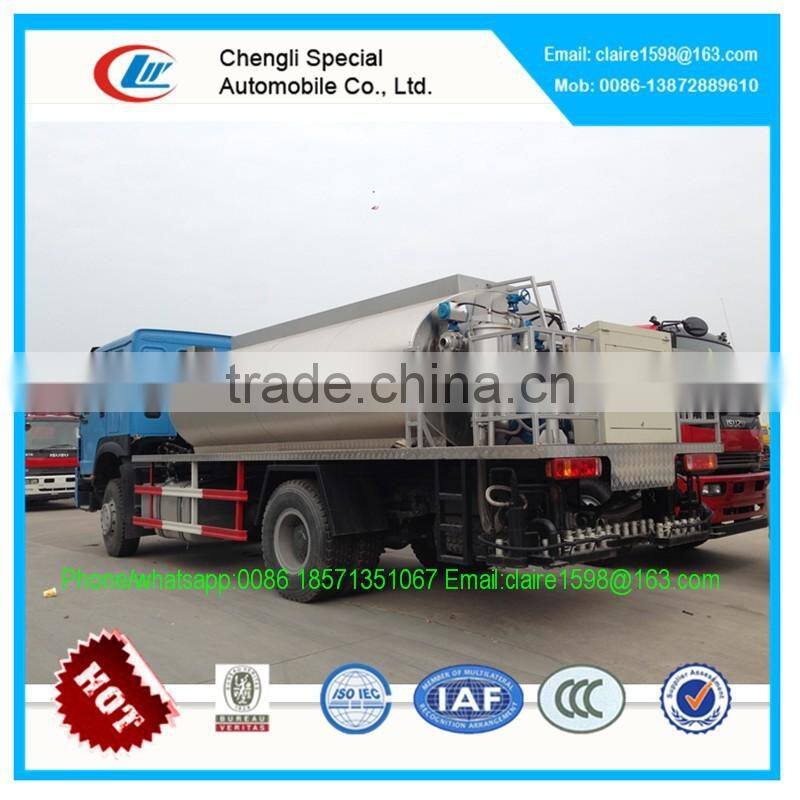

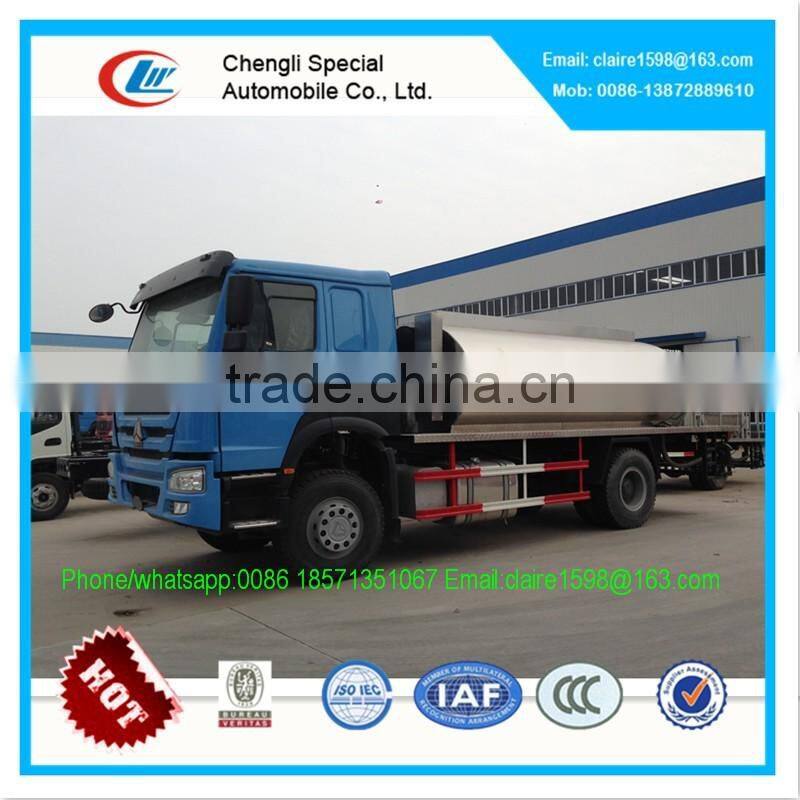

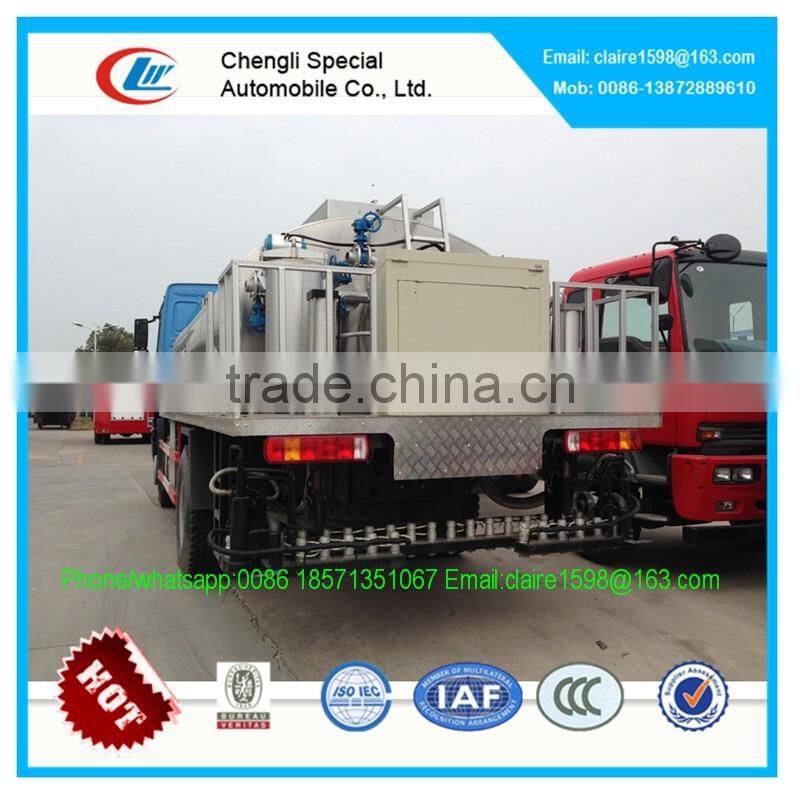

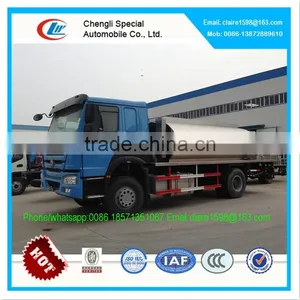

truck images for Asphalt trailer,Asphalt sprayer,Asphalt Distributor Trailer 8CBM
Product samples:
Workshop production flow and equipment:
Spare parts:
Contact Information:
1. About the package of our trucks, usually it is nude that covered with wax. And it also can be packed as your need.
2. About the shipping, there are many ways, such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request.
1. Delivery time
Usually within 10 to 25 days after getting your deposit. And the accurate time depends on your QTY.
2. Terms of payment
30% of contract amount must be paid by T/T before the production. After the completed trucks are checked and confirmed well by our clients, the balance shall be paid before the shipment.
3. Truck warranty to solve our clients’ worries when purchasing
The warranty period is one year or 25000KM that drove under normal operation and control since our clients get the trucks. And we can supply maintenance for the whole life.
Advantages of choosing us:
1. We have solid technology, flawless inspection, advanced equipments, reliant quality and flexible modes of operation.
2. We have roundly passed the ISO9001-2000 and the 3C.
3. Guaranteed high quality and competitive price.
4. Having warranty services for one year and enjoy maintenance for a life.
5. We always keeping high efficiency and products are based on your requirement.
6. After service can be dealt with in 48 hours.
Company and certifications:
