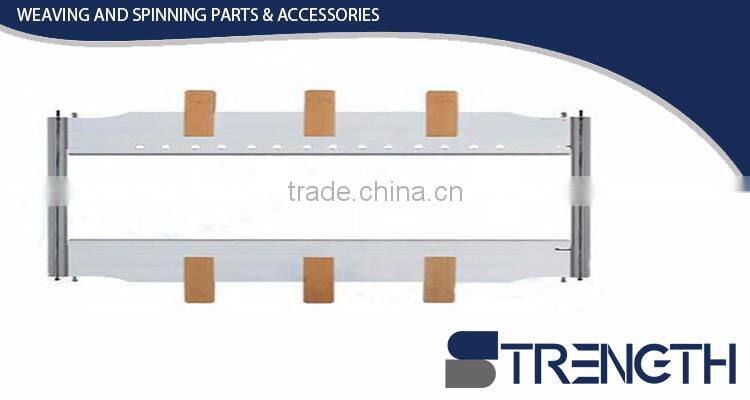

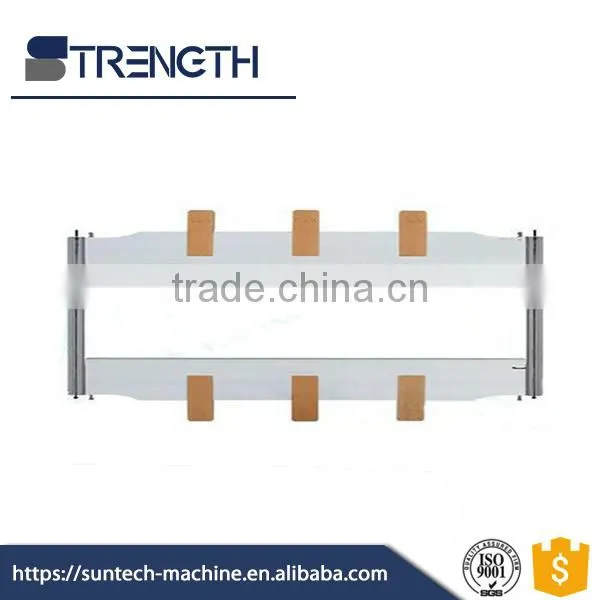

STRENGTH Air-jet Loom Parts Harness Frame
The standard Air-Jet/Rapier harness frames are designed for low-to-medium weaving speeds on most all types of air-jet and rapier looms like Dornier, Picanol, Tsudakoma, Toyota, Somet, and more.
All profiles and end braces are extruded from high-strength, oxidized aluminum, and all frames are constructed to your exact specifications regarding dimensions, driving elements, corner connections, end brace profiles, heddle rods, nose guides and intermediate supports.
Noise dampening and carbon fiber reinforcement options are also available.
Corner Connections
Air-Jet/Rapier harness frames are available with several types of corner connections between the frame profiles and the end braces.
Steel Heddle-type
Grob-type (old/new)
Drive Elements
Air-Jet/Rapier harness frames are available for any type shedding motion, and with most common types of Driving Elements, including:
DRC 1E/Staubli DRC 10
DRC 2/DRC 3
Dornier PSL/Dornier
Tsudakoma/Toyota
Heddle Rods

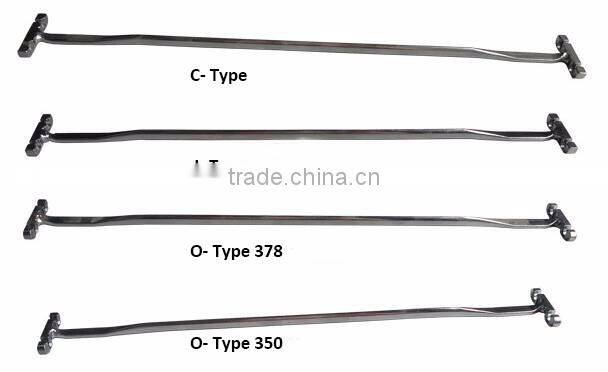

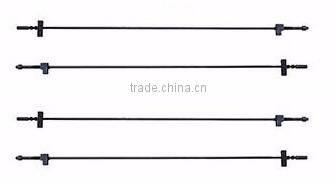

Heddle Rods are available for both C-type and J-type heddles, and are riveted directly to the profile.
Intermediate Supports
Steel Intermediate Supports are available to reinforce Air-Jet/Rapier harness frames used in looms with wide weaving widths.
Nose Guides

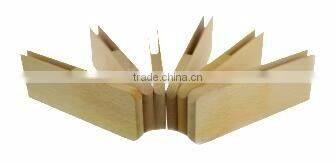

Wooden Nose Guides are available as required; glued/taped or bolted.
1. Rapier Driver Wheel 2. Drop Wire 3. Heald Wire 4. Loom Selvage Blade
5. Loom Weft Blade 6. Rapier Tape 7. Harness Frame 8. Rapier Head
HANGZHOU STRENGTH MACHINERY CO., LTD
HANGZHOU STRENGTH is the subsidiary company of SUNTECH, specialized in weaving & spinning machine accessories and parts. STRENGTH Air-jet Loom Parts Harness Frame
Weaving:
covers a range of products, such as rapier gripper, rapier drive wheel, rapier tape, weft & selvedge blade, harness frame, drop wire, heddles, and other accessores & parts of brand weaving machines (Dornier, Picanol, Sulzer, Tsudakoma, Somet, Vamatex, Toyota and other weaving looms.)
Spinning:
covers the accessories and parts of spinning machines, such as rubber cot, rubber appron, spindle, roller, bearing, cradle, ring traveller, steel ring, press bar, flyer, tape/belt, bobbin, guide wire, leading board, spacer, card clothing, etc.
We will do our best to be your long-term development partner on textile accessories & parts.
