SUNTECH Website Electric High Lift Jack With Lift Chain
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card
You May Like
-
SUNTECH Hydraulic Industrial Platform Lift
-
ST-SJX Self-propelled Hydraulic Scissor Lift Table
-
SUNTECH Well Performance Hydraulic Scissor Lift Table for Plywood
-
SUNTECH Car Jack With Series Cylinder China Supplier,Electrical Scissor Lift
-
SUNTECH Website Car Jack for Wheelchair
-
SUNTECH Car Jack With Articulated Lift Made in China,Mobile Scissor Lift
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SUNTECH | |
| Model Number | ST-SJY | Lift Mechanism | Scissor Lift | |
| Lift Drive / Actuation | Electric Motor | Power | 380V | |
| Rated Loading Capacity | 500kgs | Min. Lifting Height | 3000mm | |
| Max. Lifting Height | 16000mm | Table Size | 1300*700 - 2750*1500, 1300*700 - 2750*1500 | |
| Overall Dimensions | mm | Weight | As per different model | |
| Certification | CE;ISO | Warranty | 13 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

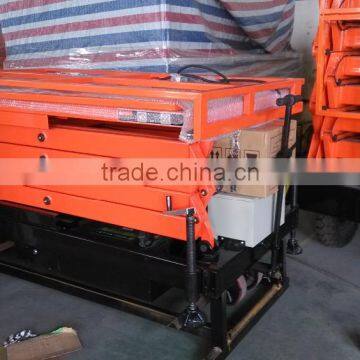

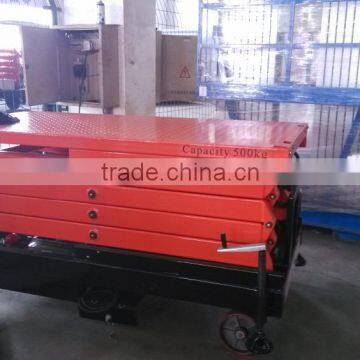

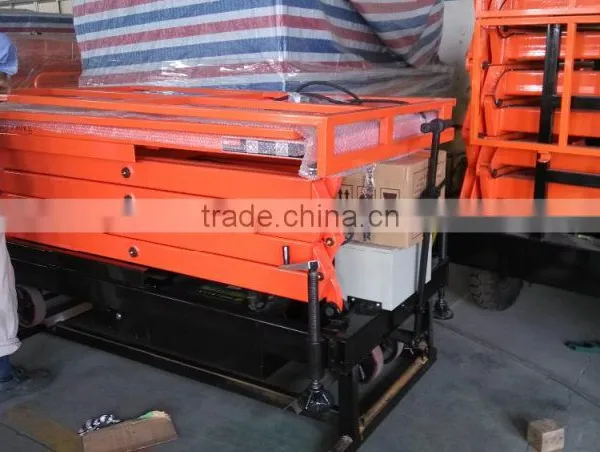

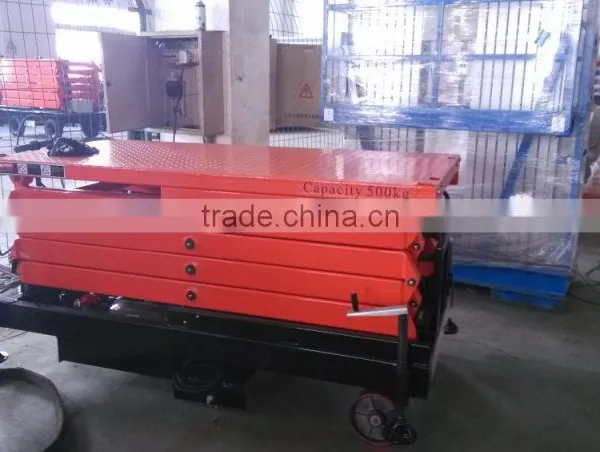

SUNTECH Alibaba Website Electric High Lift Jack with Lift Chain
SUNTECH Alibaba Website Electric High Lift Jack with Lift Chain, Scissor Lift a special equipment
that can be widely used for the purpose of working high above the ground. It's scissors-like
mechanica structure gives the platform a high stability when it is lifted up.
The spacious work platform and high bearing capacity have enlarged the aerial service scope of
the platform and make it suitable for several persons working together simultaneously. With the
equipment, aerial work will be done efficiently and more safely.
Technical Specs. of SUNTECH Alibaba Website Electric High Lift Jack with Lift Chain
| Model | Rated Capacity (kg) | Raised Height (mm) | Low Height (mm) | Platform Size(mm) | Elevating Time(mm) | Motor Power (kw) | Voltage(v) | Total Weight (kg) |
| SJY-0.3-3 | 300 | 3000 | 770 | 1300*700 | 20 | 0.55 | 380V/50Hz | 400 |
| SJY-0.5-4.5 | 500 | 4500 | 980 | 1300*850 | 30 | 0.75 | 380V/50Hz | 500 |
| SJY-1-4.5 | 1000 | 4500 | 1350 | 1500*1000 | 35 | 1.5 | 380V/50Hz | 700 |
| SJY-0.3-6 | 300 | 6000 | 980 | 1800*880 | 58 | 0.75 | 380V/50Hz | 800 |
| SJY-0.5-6 | 500 | 6000 | 1130 | 1800*880 | 60 | 0.75 | 380V/50Hz | 900 |
| SJY-1-6 | 1000 | 6000 | 1500 | 1800*1000 | 65 | 2.2 | 380V/50Hz | 1200 |
| SJY-0.3-7.5 | 300 | 7500 | 1280 | 1800*1000 | 64 | 1.1 | 380V/50Hz | 1100 |
| SJY-0.3-9 | 300 | 9000 | 1330 | 1800*1000 | 74 | 1.1 | 380V/50Hz | 1300 |
| SJY-0.5-9 | 500 | 9000 | 1600 | 1800*1000 | 81 | 1.1 | 380V/50Hz | 1500 |
| SJY-1-9 | 1000 | 9000 | 1780 | 2000*1200 | 75 | 2.2 | 380V/50Hz | 1900 |
| SJY-0.3-11 | 300 | 11000 | 1630 | 2100*1150 | 93 | 1.5 | 380V/50Hz | 1800 |
| SJY-0.5-11 | 500 | 11000 | 1630 | 2450*1150 | 105 | 1.5 | 380V/50Hz | 2300 |
| SJY-0.3-12 | 300 | 12000 | 1780 | 2450*1350 | 110 | 2.2 | 380V/50Hz | 2300 |
| SJY-0.5-12 | 500 | 12000 | 1780 | 2450*1350 | 115 | 2.2 | 380V/50Hz | 3300 |
| SJY-1-12 | 1000 | 12000 | 1860 | 2450*1350 | 120 | 3 | 380V/50Hz | 3300 |
| SJY-0.3-14 | 300 | 14000 | 1980 | 2450*1350 | 124 | 2.2 | 380V/50Hz | 2800 |
| SJY-0.5-11 | 500 | 14000 | 1980 | 2450*1350 | 130 | 2.2 | 380V/50Hz | 2800 |
| SJY-0.3-16 | 500 | 16000 | 2000 | 2750*1500 | 145 | 3 | 380V/50Hz | 3000 |
Excellent of SUNTECH Alibaba Website Electric High Lift Jack with Lift Chain
1)The main structure of high- strength manganese steel.
2)Protection device against overloading.
3)Protection device against dropping.
4)Urgent descending device.
5)Liability insurance of product quality by PICC.
Packing Details:Steel Pallet or Wooden Box Packing
Delivery Details: 15-20 days delivery for SUNTECH Alibaba Website Electric High Lift Jack with
Lift Chain
