Suntech ST-BS Hot Sell Fabric Roll Stacker With Automatic Selecting System
- 30 Set / Sets per Month
- Ningbo/Shanghai
- T/T L/C D/P D/A
You May Like
-
Suntech ST-BS Facility Bridge Fabric Roll Store,Beam Stackers
-
ST-HBT-04 Hydraulic warp beam trolley
-
SUNTECH Useful Warp Beam Easy Transportation Carrier
-
ST-HBT-09 Warp Beam Transportation Carrier for Textile Industry
-
Hydraulic Warp Beam Lift Trolley from CHINA
-
Hand Warp Beam Low Lift Cart With Harness Mounting Device
Product Details
Condition | New | Place of Origin | Zhejiang, China | |
Brand Name | SUNTECH, Suntech | Model Number | ST-BS | |
Dimension(L*W*H) | CM | Certification | CE, CE | |
Warranty | 13 months, 13 months from the date of shipment |
Product Description

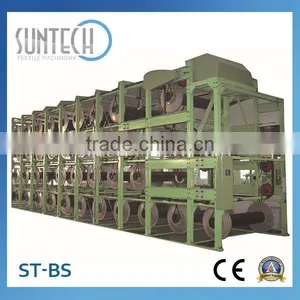

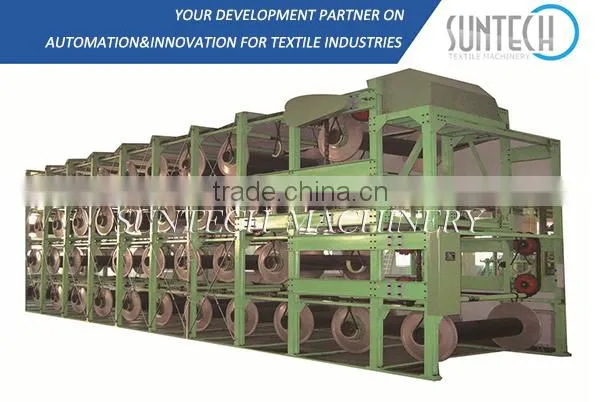

ST-BS Suntech Hot Sell Fabric Roll Stacker

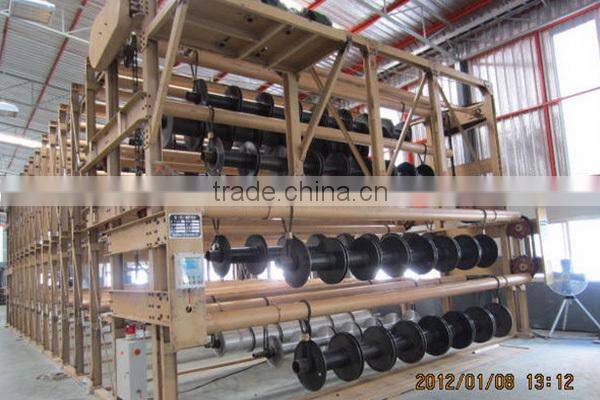

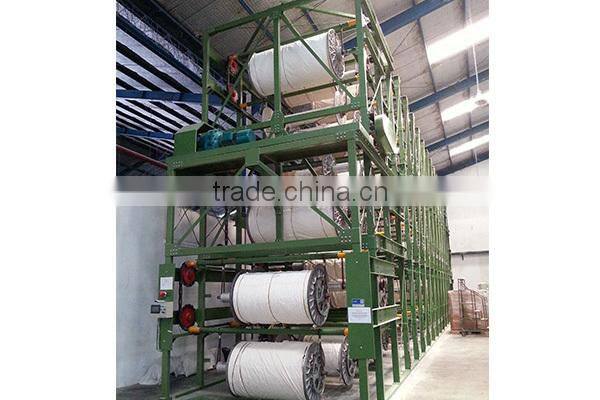

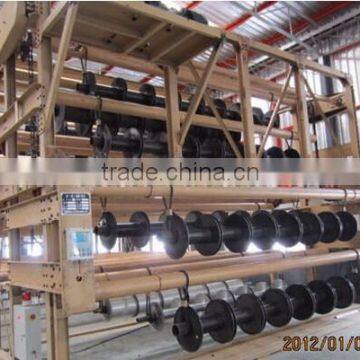

The model SUNTECH ST-BS Hot Sell Fabric Roll Stacker is the best solution for storage of warp beam/ size beam/ weaving beam/ fabric roll, which are widely applicable in the weaving preparation workshop, weaving unit and finishing unit for space utilization and to avoid damage of ready warp/ fabric roll. They are available in different models for handling each particular situation. For example, loading and unloading can be undertaken from one position to several positions at one or different level.
The model ST-BS Beam Stacker could employ a microprocessor-controlled information system for storage and retrieval of particular beams.
Technical Specs. of Hot Sell Fabric Roll Stacker
Storage Capacity | Type of Warp Beam | Overall Dimension(mm) | Layer | ||
L | W | H | |||
30 | Φ800x model1900 (L1=2200) | 930 | 3000 | 4300 | 4 |
40 | 12000 | ||||
50 | 15000 | ||||
60 | 18000 | ||||
70 | 21000 | ||||
80 | 24000 | ||||
90 | 3000 |
Storage Capacity | Type of Warp Beam | Overall Dimension(mm) | Layer | ||
L | W | H | |||
30 | Φ1000x model1900 (L1=2200) | 10650 | 3200 | 5200 | 4 |
40 | 14000 | ||||
50 | 17350 | ||||
60 | 20700 | ||||
70 | 24050 | ||||
80 | 27400 | ||||
90 | 34100 |

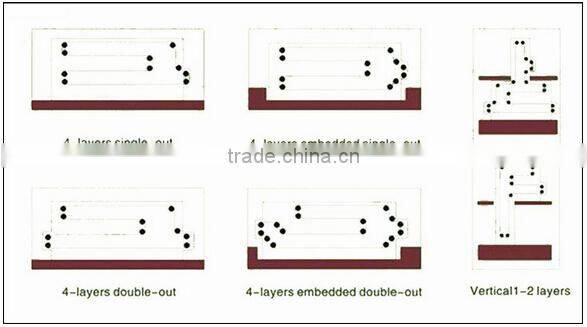

Installation Options of Hot Sell Fabric Roll Stacker
Excellent Features of Hot Sell Fabric Roll Stacker
1)Installation Options: Single Exit; Embedded Single Exit; Double Exits; Embedded Double Exits;
Vertical 1-2 Layers.
2)Storage Layer: Two; Four; Six; Eight layers
3)Storage Capacity: 20-120 PCS
4)Diameter of Beam or Fabric Roll: φ 500-φ 1250
5)Width of Beam or Fabric Roll: Suits for model 1500-model 3900
6)Loading: Electric hydraulic lift table

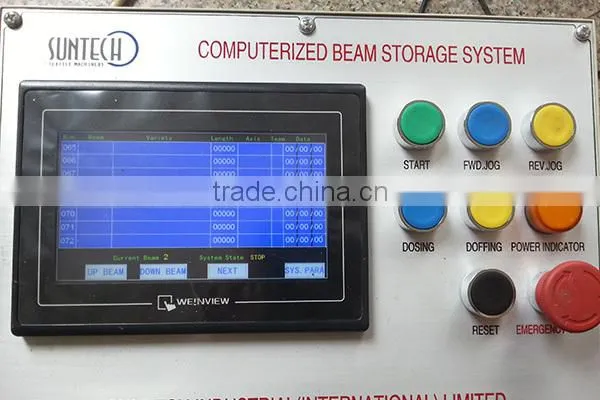

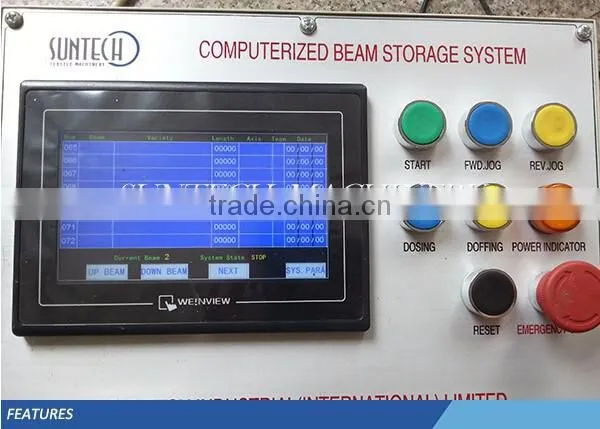

7)Enclosed Control Panel with PLC for sequential control of machine

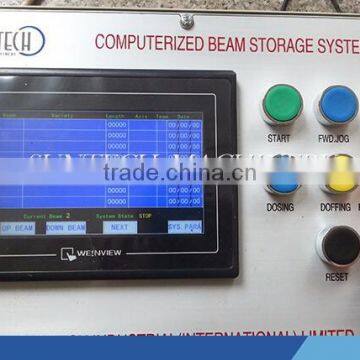

8)HMI(Touch Panel) for easy and quick access of data and machine operation.
9)Automatic Beam Selection based on entered data like beam no. /beam code/mill code/etc.
Machine will select shortest path to select beam and bring the selected beam at doffing position.
10)Safety controls are interlocked with machine operation.
Packing Details:Steel Pallet or Wooden Box Packing
Delivery Details: 15-20 days delivery for Hot Sell Fabric Roll Stacker
SUNTECH is one of the leading designers & manufacturers on textile machines for weaving &
finishing Units, especially for Fabric Make-up Machines and Material Storage & Handling
Equipment.
Over 40 years experience, SUNTECH now has its brand office in HK and International sales
office in Hangzhou. In addition, our factory is located in Ningbo city, Zhejiang, China.
Today,with more than 2500 customers and 6000 installations around the world, SUNTECH now
has its Agent network in Italy, Germany, Russia, Argentina, Colombia, Peru, Ecuador, Guatemala,
Indonesia, Thailand, Philippines, India, Pakistan, Bangladesh, Sri Lanka, Uzbekistan, Iran,Egypt,
South Africa, Syria, Mauritius, etc.
Q1:Are you a trading company or manufacture?
A1: SUNTECH is a professional manufacturer with experience over 40 years. Now we have brand office in
HK and International sales office in Hangzhou(Hangzhou Strength Machinery Co.,Ltd). Your order will be
controlled from very beginning to the last.
Q2: What is your delivery time?
A2: Normally 15-20 days upon order confirmation.
Q3: What is your packing pattern?
A3: For FCL, steel pallet + stretch film covering
For LCL, steel frame + wooden box packing
Q4: How about your service?
A4:Round the clock customer service center- 24 hours hot line--13706812486.
Also, engineers available to service machinery overseas
Q5: How about your product?
A5: SUNTECH has the standard production and complete quality control system to ensure high quality
products. Our products get ISO9001:2008, Euro CE.
1.Round the Clock Customer Service Centers
2.Skilled Maintenance Team, Engineers Available to Service Machinery Overseas.
3.Expert Team, Technical Support
4.Abundant Spare Parts, Swift Storage Center
If you have any other questions,please contact us !
