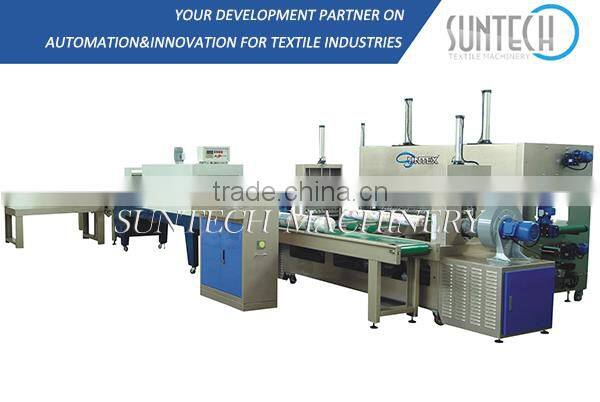

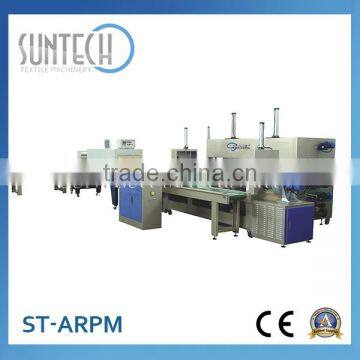

SUNTECH Fabric Roll Heat Sealing and Packing Machine

Technical Specs. of SUNTECH fabric roll heat sealing and packing machine

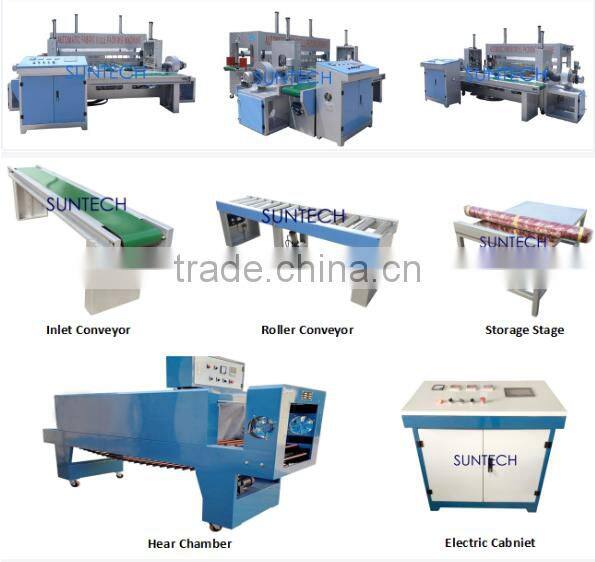

1. Images of SUNTECH fabric roll heat sealing and packing machine

2. Machine Details

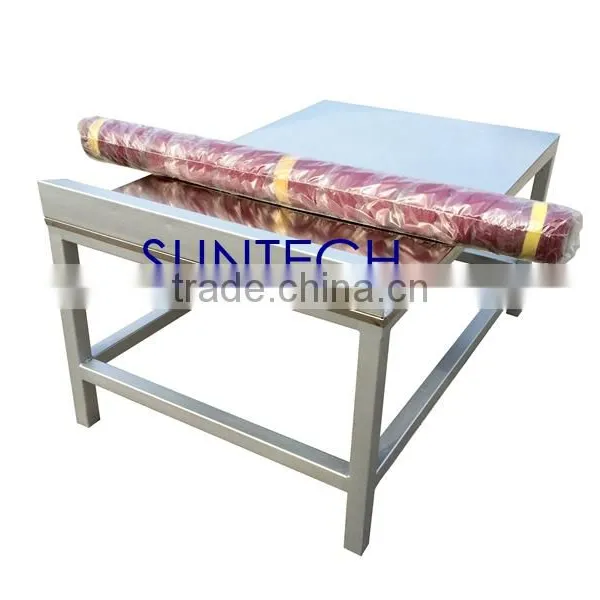

3. Packing Effect

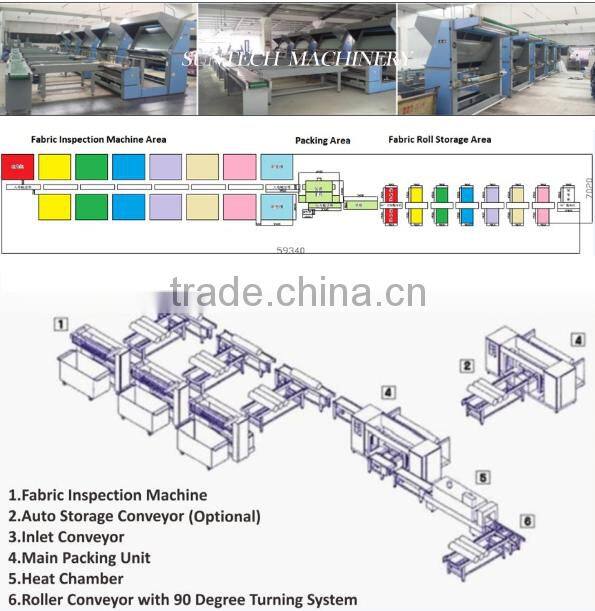

The Automatic Packing Line of SUNTECH fabric roll heat sealing and packing machine

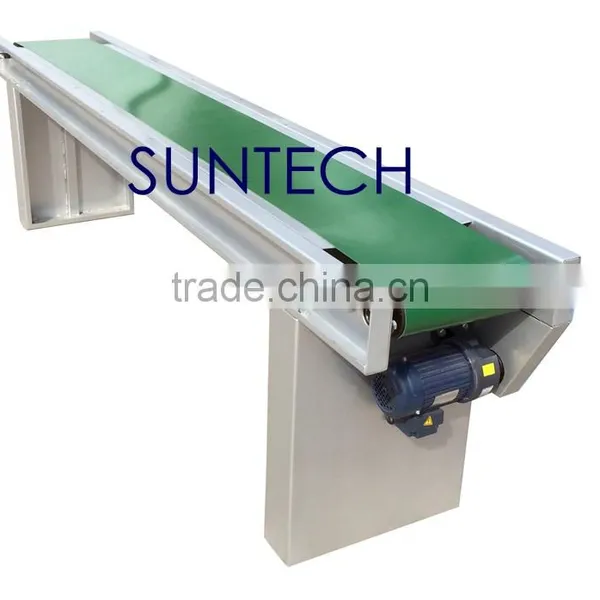

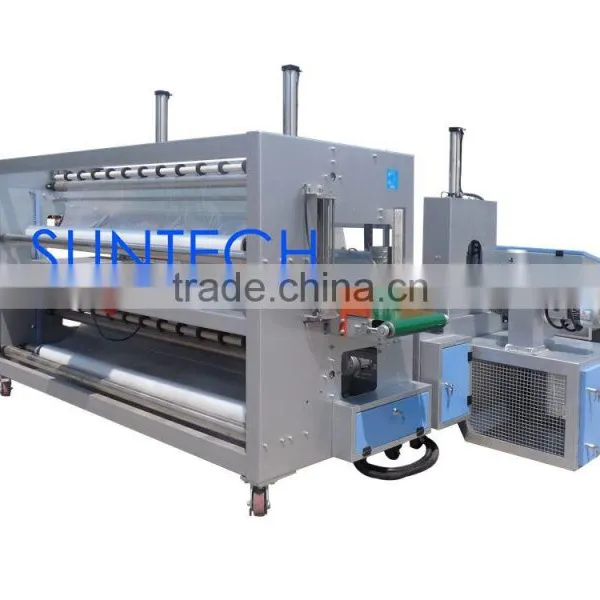

1) The fabric rolls are transported by the Inlet Conveyor to the Main Packing Unit for both

width and side sealing through polythene film.

 2) The width and diameter of the coming rolls are detected by the intelligent photoelectric

sensors and optical fibers so as to ensure there will be no polythene film wastage during

packing.

 3) On the completion of side sealing, the packed fabric rolls are transferred to the Heat

Chamber so as to crimp the polythene tightly over the fabric roll, which ensures avacuum

packing effect.

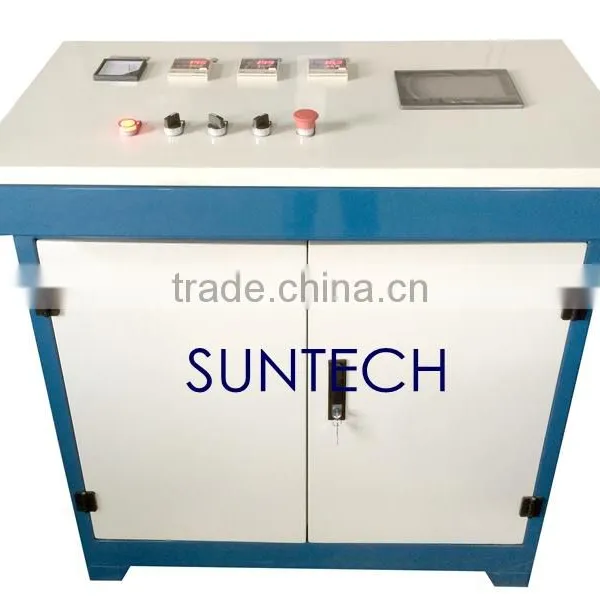

 4) The complete system is PLC controlled and the electrical components are placed inside a

separate operation box for the convenience of the operator and the maintenance staff.

 5) The complete system can work independently and/ or online work together with Fabric

Inspection Machines for time being.

Q1:What is the packing material? Can we find it in our market?

A1: It is the most common polythene film with 60-80 microns, very easy to get it in your market.

Q2: What is the packing speed?

A2: Our ST-ARPM-180I can pack 300 to 420 rolls/hr, which means it can pack 2400 to 3360 rolls/eight hour.

Q3: How many Fabric Inspection Machines could link with one Packing Machine at the same time ?

A3: 10sets.

Q4:What is the electrical specs? Can I use the machine directly in my country?

A4: It is 3 phase, 380v and 50hz; we could make it suitable for different countries.

Q5: Is the control panel in English?

A5: Yes, it is in English.

Q6: How long is the warranty? If any problems, how to solve it?

A6: 13 months from the date of shipment. If any quality problems within warranty, Suntech will

responsible for it, and send new replacements.

Q7: Will you provide free spare parts along with the machine?

A7: Yes, 5% to 10% free spare parts will be sent with the machine.

SUNTECH is one of the leading designers & manufacturers on textile machines for weaving & finishing

Units, especially for Fabric Make-up Machines and Material Storage & Handling Equipment.

Over 40 years experience, SUNTECH now has its brand office in HK and International sales office in

Hangzhou. In addition, our factory is located in Ningbo city, Zhejiang, China.

Today,with more than 2500 customers and 6000 installations around the world, SUNTECH now has its

Agent network in Italy, Germany, Russia, Argentina, Colombia, Peru, Ecuador, Guatemala, Indonesia,

Thailand, Philippines, India, Pakistan, Bangladesh, Sri Lanka, Uzbekistan, Iran,Egypt, South Africa, Syria,

Mauritius, etc.

1.Round the Clock Customer Service Centers

2.Skilled Maintenance Team, Engineers Available to Service Machinery Overseas.

3.Expert Team, Technical Support

4.Abundant Spare Parts, Swift Storage Center

If you have any other questions,please contact us !
