Suntech professional cloth roll inspecting and rolling/winding mechanism/machine for tube knits
- 100 Set / Sets per Month
- Ningbo or Shanghai
- T/T L/C D/P D/A Credit Card
- Automatic round Collar stitching Machine
- Double head hot stamping machine
- EEPSON Printing Head 350ml Big Ink Tank Inkjet Printing Plotter Paper Plotter
- Various Sizes All CAD Files Support Large Wide CAD Paper Pattern Graph Contour Plotter
- Cheap Hot 10-Year Original Factory CAD Paper Pattern Graph Inkjet Printing Plotter
- Good Cheap Fast Dual Head HP45 Inkjet Paper Pattern Plotter Garment Cutter Plotter
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | SUNTECH | Model Number: | ST-TFIM |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

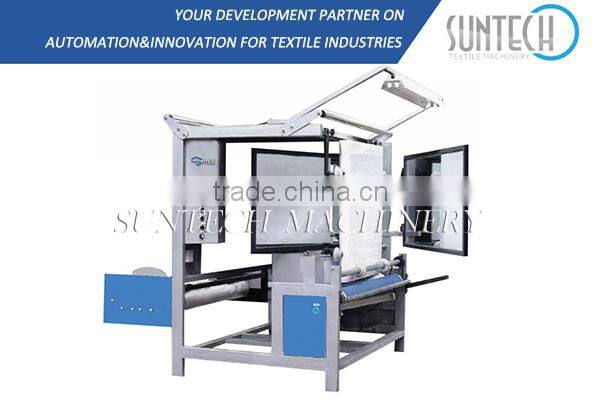

ST-TFIM professional cloth roll inspecting and rolling/winding mechanism for tube knits

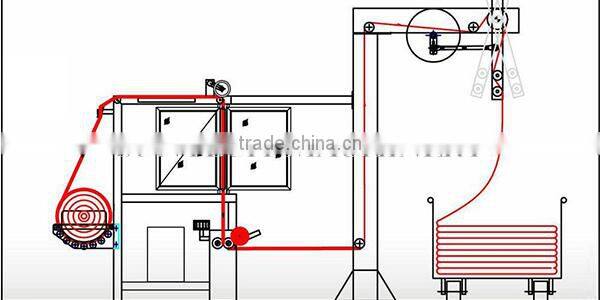

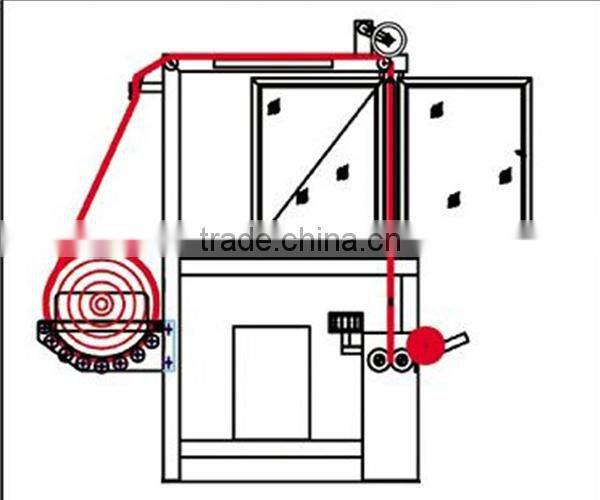

ST-TFIM Tubular inspection machine is specially designed for easy and efficiency
inspect to both sides of tubular fabric in single pass operation. The Fabric is loaded and pass
to the fabric checking box, through two mirrors, the operator can easily check both side of Fabric.
This machine can be supplied to operate fabrics from roll to roll or plait, or with various other
fabric inlet and outlet options.
*Ergonomically designed.
*Fast and easily handle,requiring for one operator only.
*Improve fabric quality
*Synchronize production process
*Provide objective quality reporting
*Reduce administration
Technical Specs. of cloth roll inspecting and rolling/winding mechanism
Speed | 0-50m/min |
Fabric Width | 450-1200mm |
Standard Roll Diameter | 500mm |
Dimensions(LXWXH) | 2300X1700X2070mm |
Weight | 400kgs |
Electric Specs | Single-phase/220V;50HZ(can be adjusted to suit for different countries) |
Remark: Variable working width is possible and can be tailor-made to your requirements of processing needs |
OPTION 1: Suitable for Tubular Fabric from Roll to Roll
OPTION 2: Suitable for Tubular Fabric from Roll to Roll/Plait
Excellent Features of cloth roll inspecting and rolling/winding mechanism
1)Fabric rolling drawer, with upper delivery mode lessen fabric tension and more convenient for
inspection.
2)The inspecting speed controlled by inverter as requirement.
3)High voltage Dispenser for lightening system. This special device provides electricity Power to
the Fabric Checking Box wireless.
4)Multi-size inspecting lightening cabinets from width 18''~48'' for requirements of various fabric.
This special Box installed Magnetic Block in the bottom to suspension automatically against the
roller to eliminate crease marks to fabric.
5)Two modes of fabric layout - rolling or plaiting for option.
6)Easy Operation Pannel Only few push buttons to run the machine smoothly.
7)Remote Foot Pedal for convenient operation.
Packing Details:Steel Pallet or Wooden Box Packing
Delivery Details: 15-20 days delivery for cloth roll inspecting and rolling/winding mechanism
SUNTECH is one of the leading designers & manufacturers on textile machines for weaving & finishing
Units, especially for Fabric Make-up Machines and Material Storage & Handling Equipment.
Over 40 years experience, SUNTECH now has its brand office in HK and International sales office in
Hangzhou. In addition, our factory is located in Ningbo city, Zhejiang, China.
Today,with more than 2500 customers and 6000 installations around the world, SUNTECH now has its
Agent network in Italy, Germany, Russia, Argentina, Colombia, Peru, Ecuador, Guatemala, Indonesia,
Thailand, Philippines, India, Pakistan, Bangladesh, Sri Lanka, Uzbekistan, Iran,Egypt, South Africa, Syria,
Mauritius, etc.
Q1:Are you a trading company or manufacture?
A1: SUNTECH is a professional manufacturer with experience over 40 years. Now we have brand office in
HK and International sales office in Hangzhou(Hangzhou Strength Machinery Co.,Ltd). Your order will be
controlled from very beginning to the last.
Q2: What is your delivery time?
A2: Normally 15-20 days upon order confirmation.
Q3: What is your packing pattern?
A3: For FCL, steel pallet + stretch film covering
For LCL, steel frame + wooden box packing
Q4: How about your service?
A4:Round the clock customer service center- 24 hours hot line--13706812486.
Also, engineers available to service machinery overseas
Q5: How about your product?
A5: SUNTECH has the standard production and complete quality control system to ensure high quality
products. Our products get ISO9001:2008, Euro CE.
1.Round the Clock Customer Service Centers
2.Skilled Maintenance Team, Engineers Available to Service Machinery Overseas.
3.Expert Team, Technical Support
4.Abundant Spare Parts, Swift Storage Center
If you have any other questions,please contact us !
